    8.4" industrial chassis LCD touchscreen monitor with VGA, DVI, HDMI input for industrial use

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD08CMN1M1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

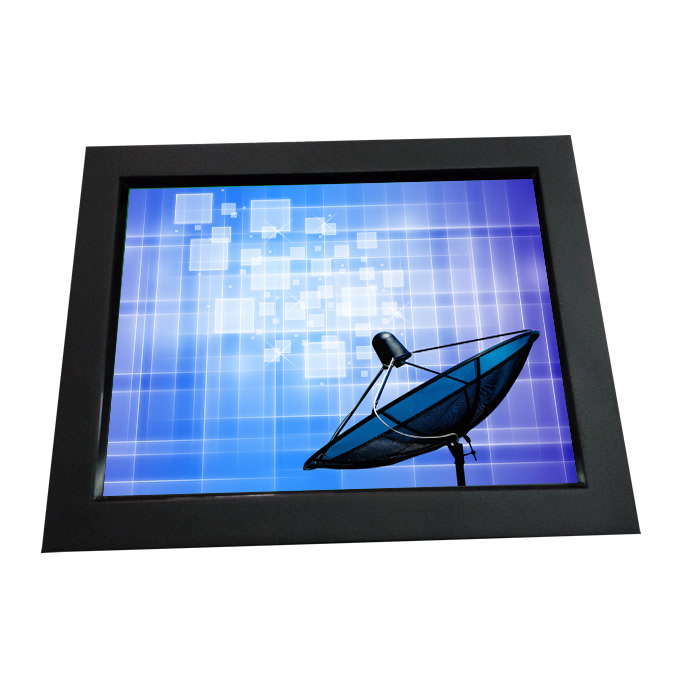

    8.4" industrial chassis LCD touchscreen monitor with VGA, DVI, HDMI input for industrial use

    8.4" industrial chassis LCD touchscreen monitor with VGA, DVI, HDMI input for industrial use


    ITD industrial LCD monitors consists of the TFT LCD chassis monitors (5.7”~84”) that are available with a sturdy metal housing in a chassis monitor design and in the formats 4:3,16:9 and 16:10. It has an enclosed steel chassis that can come with resistive touch, SAW touch, IR touch or PCAP touch optional. It can be wall mounted by VESA or tabletop mounted by stand.


    BENEFITES

    -Compliant with major safety regulations

    -Perfect for kiosk, equipment and instrument drop-in designs

    -Superior viewing angles, contrast ratio and brightness

    -Robust CNC milled open frame enclosure

    -Unique design accounts for heat ventilation

    -Durable Touchscreen options

    -DVI, Composite and BNC video input options


    Chassis LCD Monitor


    Model NameITD08CMN1M1
    IP RatingN/A

    LCD Panel


    Screen Diagonal (Inch)8.4”
    Display Active Screen Size (mm)170.4(H)×127.8(V)
    Aspect Ratio4:3
    Physical Resolution800×600
    Maximum Resolution Supported1920×1080
    Colors262K
    Brightness (cd/m²)230
    Contrast Ratio600:1
    View Angels80/80/60/80
    Backlight/Backlight LifetimeLED Backlight with 50000Hours’Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input1 × VGA
    1 × DVI-I
    1 × HDMI
    Audio1 × PC-Audio
    Touch Connector1 × USB
    Power Connector1 × DC2.0

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption10W

    Order Information


    8.4”Chassis LCD Monitor with Resistive TouchITD08CMT101
    8.4”Chassis LCD Monitor with IR TouchITD08CMT201
    8.4”Chassis LCD Monitor with SAW TouchITD08CMT301
    8.4”Chassis LCD Monitor with PCAP TouchITD08CMT501
    8.4”Chassis LCD Monitor with Tempered GlassITD08CMG101


    APPLICATION
