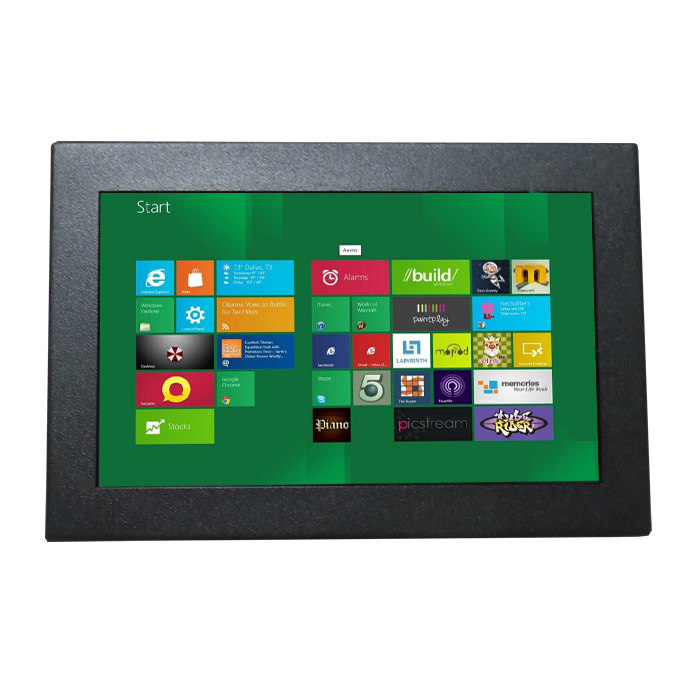

    7" industrial chassis LCD touchscreen monitor displays with VGA,DVI, HDMI input for industrial control

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD07CMN1M1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    7" industrial chassis LCD touchscreen monitor displays with VGA,DVI, HDMI input for industrial control

    7" industrial chassis LCD touchscreen monitor displays with VGA,DVI, HDMI input for industrial control


    ITD industrial LCD monitors consists of the TFT LCD chassis monitors (5.7”~84”) that are available with a sturdy metal housing in a chassis monitor design and in the formats 4:3,16:9 and 16:10. It has an enclosed steel chassis that can come with resistive touch, SAW touch, IR touch or PCAP touch optional. It can be wall mounted by VESA or tabletop mounted by stand.


    BENEFITES
    - Exceptional quality and highly engineered industrial monitors
    - Optional touchscreens like resistive, IR, SAW, PCAP
    - All steel construction designed for harsh and industrial environments
    - Easy-to-install cabinet and open frame rear-mount display
    - Multiple mounting options (75/100mm VESA mount and side brackets)
    - Accuracy in high-use applications
    - Long lasting product cycle for continuity thru all phases of project


    SPEC

    Chassis LCD Monitor


    Model NameITD07CMN1M1
    IP RatingN/A

    LCD Panel


    Screen Diagonal (Inch)7”
    Display Active Screen Size (mm)152.4(H)×91.44(V)
    Aspect Ratio16:10
    Physical Resolution800×480
    Maximum Resolution Supported1920×1080
    Colors262K
    Brightness (cd/m²)250
    Contrast Ratio500:1
    View Angels50/60/65/65
    Backlight/Backlight LifetimeLED Backlight with 50000Hours’Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input1 × VGA
    1 × DVI-I
    1 × HDMI
    Audio1 × PC-Audio
    Touch Connector1 × USB
    Power Connector1 × DC2.0

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption12W

    Order Information


    7”Chassis LCD Monitor with Resistive TouchITD07CMT101
    7”Chassis LCD Monitor with IR TouchITD07CMT201
    7”Chassis LCD Monitor with SAW TouchITD07CMT301
    7”Chassis LCD Monitor with PCAP TouchITD07CMT501
    7”Chassis LCD Monitor with Tempered GlassITD07CMG101

    APPLICATION
