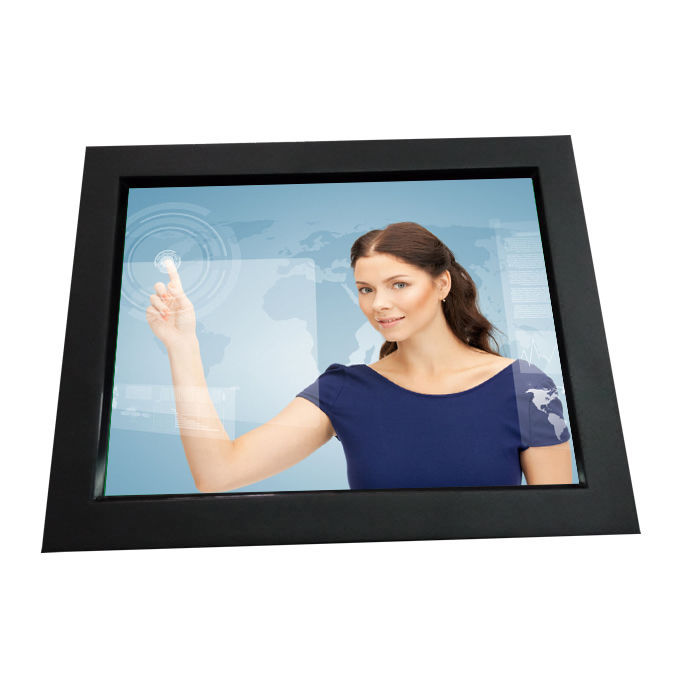

10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use from wholesalers

    Buy cheap 10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use from wholesalers
    • Buy cheap 10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use from wholesalers
    • Buy cheap 10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use from wholesalers

    10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD10CMN1M1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use

    10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use


    ITD Industrial chassis LCD Monitors are designed for those industrial and process control environments that require a stand-alone wall mounted display that does not need a complete seal from oil, dust, and other contaminants. These cost-effective LCD monitors support fast and slow-scan horizontal frequencies and are available with optional resistive, IR, SAW or capacitive touch screens.


    BENEFITES

    -Long lasting product cycle-enclosure. Future generation panels phased-in without external changes

    -Display Only, Resistive (4 or 5 wire), SAW, IR and Capacitive touch options

    -Available in standard (4:3) and wide (16:9)

    -High quality panel with 150° x 140° viewing angle. 170° x 170° IPS panel optional

    -Mounting includes side mounting, rear-mount and VESA mount (front mount optional)

    -VGA ,DVI and HDMI inputs with USB for touch and external AC/DC power.


    Chassis LCD Monitor


    Model NameITD08CMN1M1
    IP RatingN/A

    LCD Panel


    Screen Diagonal (Inch)8.4”
    Display Active Screen Size (mm)170.4(H)×127.8(V)
    Aspect Ratio4:3
    Physical Resolution800×600
    Maximum Resolution Supported1920×1080
    Colors262K
    Brightness (cd/m²)230
    Contrast Ratio600:1
    View Angels80/80/60/80
    Backlight/Backlight LifetimeLED Backlight with 50000Hours’Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input1 × VGA
    1 × DVI-I
    1 × HDMI
    Audio1 × PC-Audio
    Touch Connector1 × USB
    Power Connector1 × DC2.0

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption10W

    Order Information


    8.4”Chassis LCD Monitor with Resistive TouchITD08CMT101
    8.4”Chassis LCD Monitor with IR TouchITD08CMT201
    8.4”Chassis LCD Monitor with SAW TouchITD08CMT301
    8.4”Chassis LCD Monitor with PCAP TouchITD08CMT501
    8.4”Chassis LCD Monitor with Tempered GlassITD08CMG101


    APPLICATION


    OUR FACTORY
    Quality 10.4" industrial LCD touch monitor with Resistive touch,IR touch, PCAP touch optional for industrial use for sale
