    18.5 Inch Industrial LCD Monitor 1366*768 Resolution Industrial Display Monitors

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD18CMN1M1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

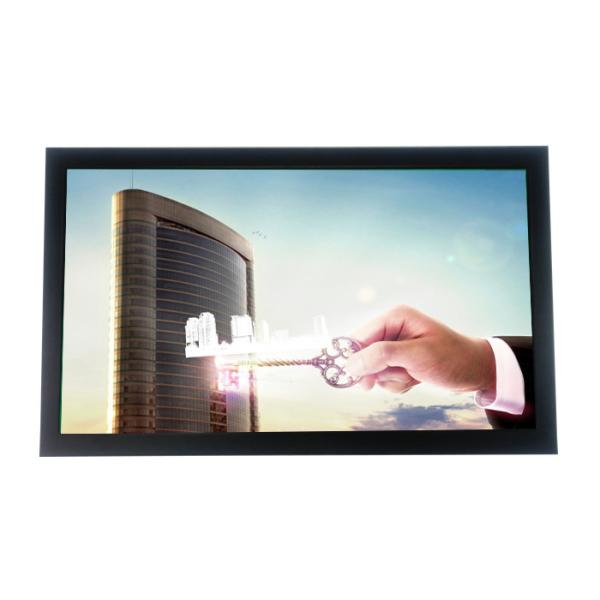

    18.5 Inch Industrial LCD Monitor 1366*768 Resolution Industrial Display Monitors

    18.5 inch industrial chassis LCD touch monitor displays with VGA,DVI, HDMI input for industrial control


    ITD industrial LCD monitors consists of the TFT LCD chassis monitors (5.7”~84”) that are available with a sturdy metal housing in a chassis monitor design and in the formats 4:3,16:9 and 16:10. It has an enclosed steel chassis that can come with resistive touch, SAW touch, IR touch or PCAP touch optional. It can be wall mounted by VESA or tabletop mounted by stand.


    BENEFITES
    - Exceptional quality and highly engineered industrial monitors
    - Optional touchscreens like resistive, IR, SAW, PCAP
    - All steel construction designed for harsh and industrial environments
    - Easy-to-install cabinet and open frame rear-mount display
    - Multiple mounting options (75/100mm VESA mount and side brackets)
    - Accuracy in high-use applications
    - Long lasting product cycle for continuity thru all phases of project


    SPEC


    Chassis LCD Monitor


    Model NameITD18CMN1M1
    IP RatingN/A

    LCD Panel


    Screen Diagonal (Inch)18.5”
    Display Active Screen Size (cm)409.8(H)×230.4(V)
    Aspect Ratio16:9
    Physical Resolution1366×768
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)250
    Contrast Ratio1000:1
    View Angels85/85/80/80
    Backlight/Backlight LifetimeLED Backlight with 50000Hours’Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input1 × VGA
    1 × DVI-I
    1 × HDMI
    Audio1 × PC-Audio
    Touch Connector1 × USB
    Power Connector1 × DC2.0

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption25W

    Order Information


    18.5”Chassis LCD Monitor with Resistive TouchITD18CMT101
    18.5”Chassis LCD Monitor with IR TouchITD18CMT201
    18.5”Chassis LCD Monitor with SAW TouchITD18CMT301
    18.5”Chassis LCD Monitor with PCAP TouchITD18CMT501
    18.5”Chassis LCD Monitor with Tempered GlassITD18CMG101

    APPLICATION

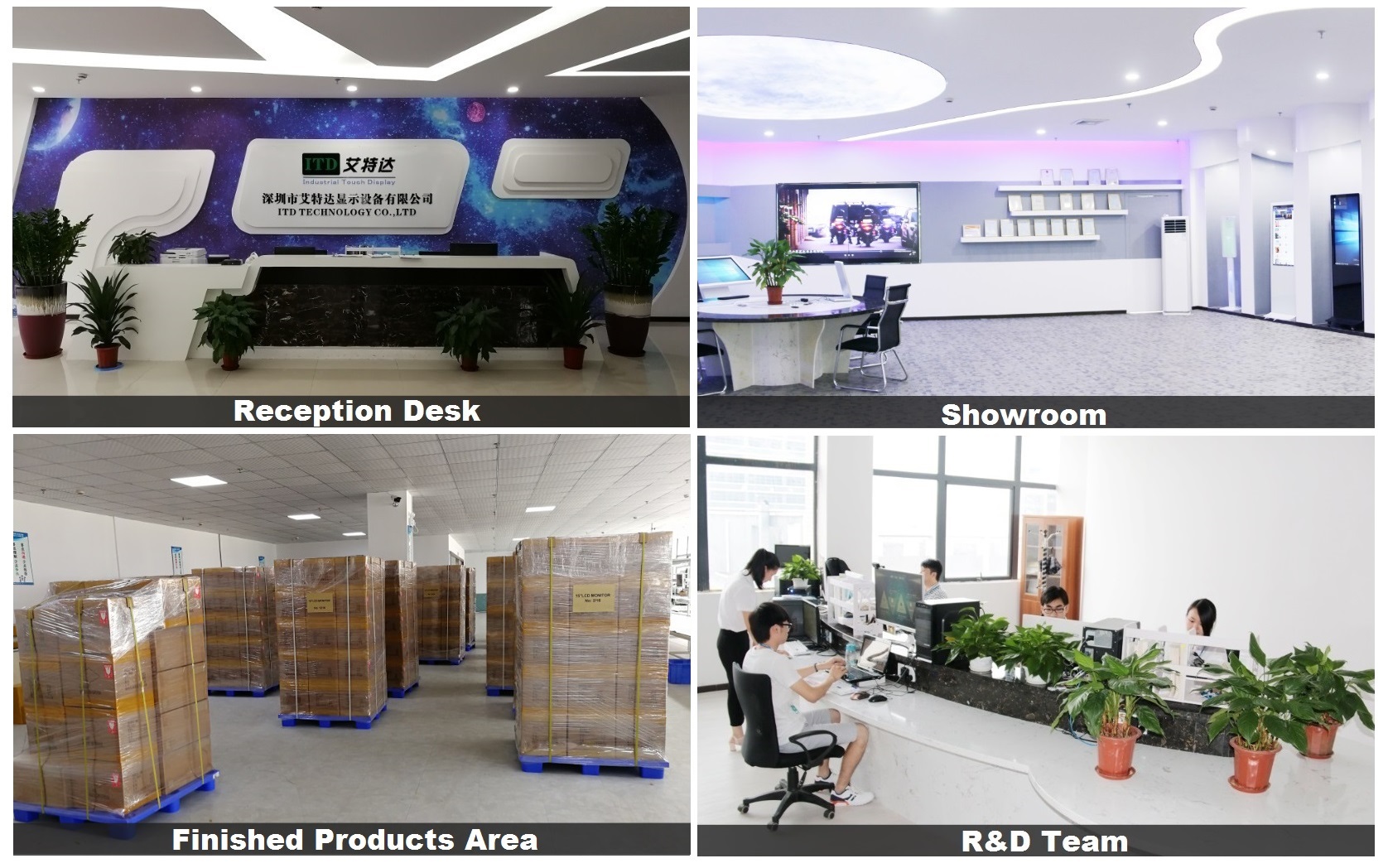

    OUR FACTORY
    Quality 18.5 Inch Industrial LCD Monitor 1366*768 Resolution Industrial Display Monitors for sale
