15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight from wholesalers

    Buy cheap 15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight from wholesalers
    • Buy cheap 15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight from wholesalers
    • Buy cheap 15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight from wholesalers

    15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCT1HBLJ1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

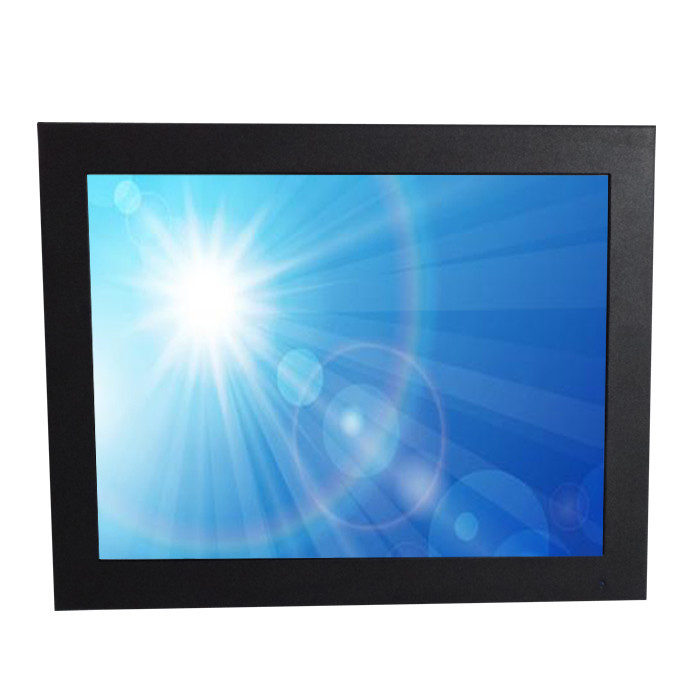

    15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight

    15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight


    ITD industrial chassis sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD high brightness chassis panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.


    BENEFITES

    • Exceptional quality and highly engineered sunlight readable industrial panel computer
    • High Performance Processor, Graphics, Memory and Power
    • All steel construction designed for harsh & industrial environments
    • Easy-to-install VESA(75/100mm) wall mounting
    • Optional touchscreens like resistive, IR, SAW, PCAP
    • High brightness from 1000nits to 1500nits optional
    • Long lasting product cycle for continuity thru all phases of project
    Chassis High Brightness Panel PC
    Model NameITD15PPCG1HBL**
    IP RatingIP65 Front Panel Optional
    PC Systems Options
    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe
    LCD Panel
    Screen Diagonal (Inch)15”
    Display Active Screen Size (cm)304.13(H)×228.10(V)
    Aspect Ratio4:3
    Physical Resolution1024×768
    Maximum Resolution Supported1920×1080
    Colors16.2M
    Brightness (cd/m²)1000(1500 Optional)
    Contrast Ratio700:1
    View Angels70/70/60/60
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime
    Touch Panel
    Touch OptionsResistive, IR, PCAP, SAW,
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported
    Power
    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption30W
    Order Information
    15”1000nits Chassis Panel PC with Resistive Touch, J1900ITD15PPCT1HBLJ1
    15”1000nits Chassis Panel PC with PCAP Touch, J1900ITD15PPCT5HBLJ1
    15”1000nits Chassis Panel PC with IR Touch, J1900ITD15PPCT2HBLJ1
    15”1000nits Chassis Panel PC with Tempered Glass, J1900ITD15PPCG1HBLJ1
    15”1000nits Chassis Panel PC with Resistive Touch, i5ITD15PPCT1HBLI5
    15”1000nits Chassis Panel PC with PCAP Touch, i5ITD15PPCT5HBLI5
    15”1000nits Chassis Panel PC with IR Touch, i5ITD15PPCT2HBLJ1
    15”1000nits Chassis Panel PC with Tempered Glass, i5ITD15PPCG1HBLI5

    15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight

    15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight


    APPLICATION


    15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight
    Quality 15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight for sale
