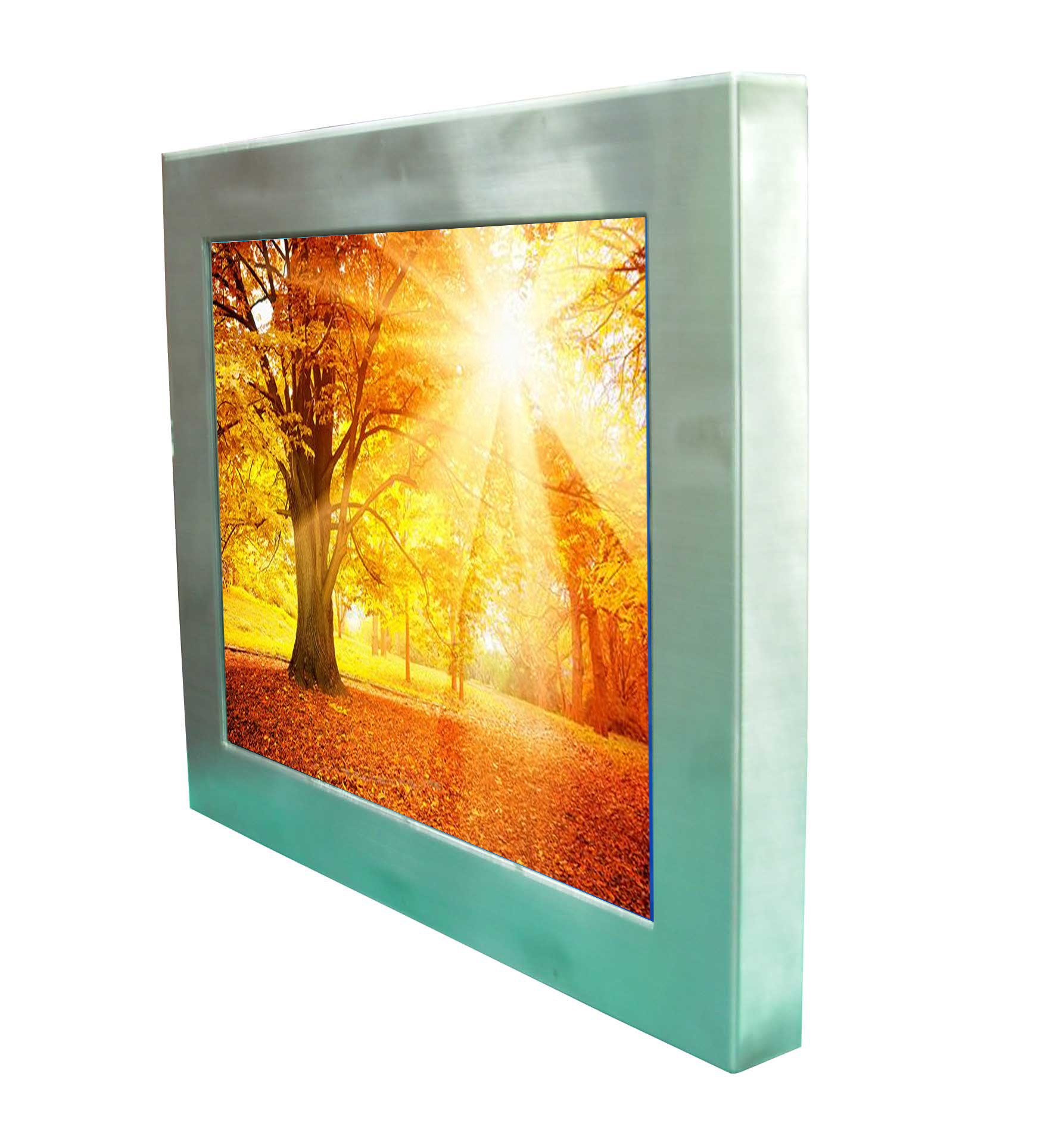

    12.1" 1500nits high bright outdoor robust stainless steel full IP66/IP67 waterproof touch Panel PC computer

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD12PPCT1IPHBS2
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    12.1" 1500nits high bright outdoor robust stainless steel full IP66/IP67 waterproof touch Panel PC computer

    12.1" 1500nits high bright outdoor robust stainless steel full IP66/IP67 waterproof touch Panel PC computer


    ITD industrial full IP65 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.


    BENEFITES

    • Exceptional quality and highly engineered industrial panel computer
    • High Performance Processor, Graphics, Memory and Power
    • Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
    • Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
    • IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
    • Easy-to-install VESA(75/100mm) wall mounting
    • Optional touchscreens like resistive and PCAP
    • High brightness from 1000nits to 1500nits optional
    • Long lasting product cycle for continuity thru all phases of project

    High Brightness Full IP65 /IP66Panel PC


    Model NameITD12PPCG1IPHB**
    IP RatingIP65/IP66(IP67 optional)

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe
    Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0

    LCD Panel


    Screen Diagonal (Inch/cm)12.1”
    Display Active Screen Size (mm)246.0(H) ×184.5(V)
    Aspect Ratio4:3
    Physical Resolution800×600(1024×768 optional)
    Maximum Resolution Supported1920×080
    Colors16.7M
    Brightness (cd/m²)1000 cd/m²
    Contrast Ratio500:1
    View Angels80/80/70/70
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel


    Touch OptionsResistive, PCAP
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC12V
    Power Consumption18W

    Order Information


    12.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900ITD12PPCT1IPHBSJ1
    12.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900ITD12PPCT5IPHBSJ1
    12.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900ITD12PPCG1IPHBSJ1
    12.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3ITD12PPCT1IPHBSI3
    12.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3ITD12PPCT5IPHBSI3
    12.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3ITD12PPCG1IPHBSI3
    12.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, J1900ITD12PPCT1IPHBAJ1
    12.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, J1900ITD12PPCT5IPHBAJ1
    12.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Tempered Glass, J1900ITD12PPCG1IPHBAJ1
    12.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, i3ITD12PPCT1IPHBAI3
    12.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, i3ITD12PPCT5IPHBAI3
    12.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900ITD12PPCT1IPHBSJ1
