42” bezel free capacitive Touch Panel PC industrial computer

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 42” bezel free capacitive Touch Panel PC industrial computer from wholesalers

    Buy cheap 42” bezel free capacitive Touch Panel PC industrial computer from wholesalers
    • Buy cheap 42” bezel free capacitive Touch Panel PC industrial computer from wholesalers
    • Buy cheap 42” bezel free capacitive Touch Panel PC industrial computer from wholesalers

    42” bezel free capacitive Touch Panel PC industrial computer

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD43PPCT5KJ
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000 units per month
    Price : TBA
    • Product Details
    • Company Profile

    42” bezel free capacitive Touch Panel PC industrial computer

    43” Zero-Bezel PCAP Touch Panel PC multi 10 touch points with true flat surface

    TD PCAP Multi-touch Panel HMIs offer users a high degree of flexibility for interfaces and expansions, high-speed USB 3.0, high data transfer rate, redundancy and teaming capable Gigabit Ethernet, highly reliable and flexible RS232/485 serial communication interfaces; highly flexible graphics and video interfaces with HDMI and audio ports.

    FEATURES

    - Cost-effective control and monitoring for simple HMI apps
    - HMIs offer machine-oriented operation and monitoring
    - Rugged, compact, fanless, and multiple interface options
    - High performance processor, graphics, memory and power
    - IP65 degree of protection, resistance against corrosion
    - High availability communication and storage
    - Highly reliable touchscreens and long lasting displays
    - High temperature, vibration, shock, and EMC resistance
    - CE, FCC, RoHS Compliance

    Spefifications

    Zero-Bezel PCAP Touch Panel PC


    Model NameITD42PPCG1K**
    IP RatingIP65 Front Panel

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® HD Graphics, Support 1080pChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch/cm)43”
    Display Active Screen Size (mm)930.24(H) ×523.26(V)
    Aspect Ratio16:9
    Physical Resolution1920×1080
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)400nits
    Contrast Ratio1200:1
    View Angels89/89/89/89
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel


    Touch TechnologyProjected Capacitive Touch
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi
    Touch Life50,000,000 Times/Click
    Surface Hardness7H
    OS SupportWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputAC100-240V
    Power Consumption78W

    Order Information


    43” Zero-Bezel Touch Panel PC with PCAP Touch, J1900ITD43PPCT5KJ1

    43” Zero-Bezel Touch Panel PC with Tempered Glass, J1900

    43” Zero-Bezel Touch Panel PC with PCAP Touch, i3

    ITD43PPCG1KJ1

    ITD43PPCT5KI3

    43” Zero-Bezel Touch Panel PC with Tempered Glass, i3

    43” Zero-Bezel Touch Panel PC with PCAP Touch, i5

    43” Zero-Bezel Touch Panel PC with Tempered Glass, i5

    43” Zero-Bezel Touch Panel PC with PCAP Touch, i7

    ITD43PPCG1KI3

    ITD43PPCT5KI5

    ITD43PPCG1KI5

    ITD43PPCT5KI7

    43” Zero-Bezel Touch Panel PC with Tempered Glass, i7ITD43PPCG1KI7

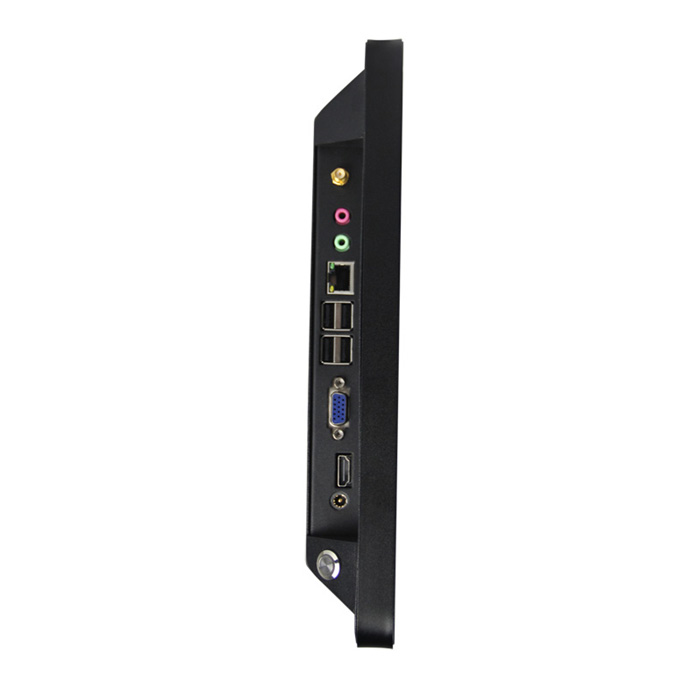

    Product Display:
