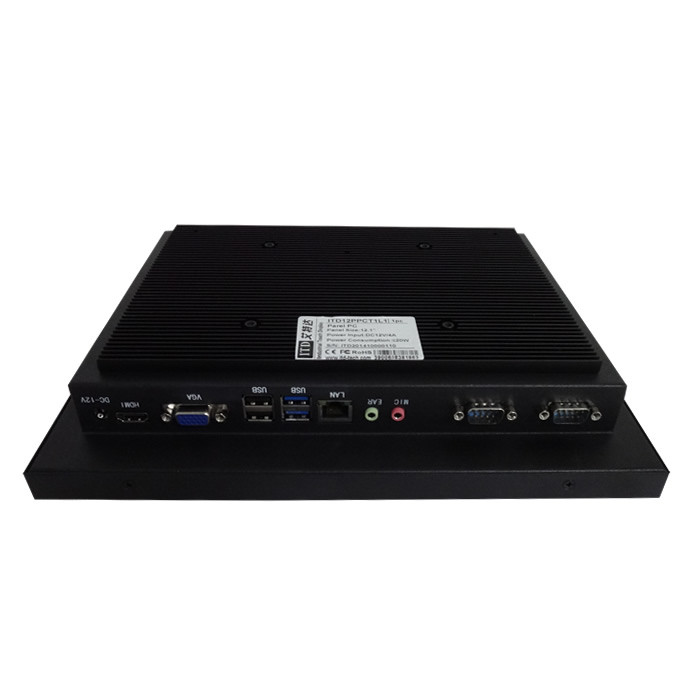

    15" passive cooling chassis durable resistive touch panel PC Intel i3/i5/i7 PoE RS485

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PMT101
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    15" passive cooling chassis durable resistive touch panel PC Intel i3/i5/i7 PoE RS485

    15" passive cooling chassis durable resistive touch panel PC Intel i3/i5/i7 PoE RS485


    ITD industrial chassis panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. ITD chassis panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.


    BENEFITES

    • Exceptional quality and highly engineered industrial panel computer
    • High Performance Processor, Graphics, Memory and Power
    • All steel construction designed for harsh & industrial environments
    • Easy-to-install VESA(75/100mm) wall mounting
    • Optional touchscreens like resistive, IR, SAW, PCAP
    • Flexible, reliable, and ruggedized for open platform HMI/SCADA
    • Long lasting product cycle for continuity thru all phases of project

    Chassis Panel PC


    Model NameITD15PPCG1L**
    IP RatingIP65 Front Panel Optional

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch)15”
    Display Active Screen Size (cm)304.13(H)×228.10(V)
    Aspect Ratio4:3
    Physical Resolution1024×768
    Maximum Resolution Supported1920×1080
    Colors16.2M
    Brightness (cd/m²)250
    Contrast Ratio700:1
    View Angels80/80/60/80
    Backlight/Backlight LifetimeLED Backlight with 50000Hours'Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption30W

    Order Information


    15”Chassis Panel PC with Resistive Touch, J1900ITD15PPCT1LJ1
    15”Chassis Panel PC with PCAP Touch, J1900ITD15PPCT5LJ1
    15”Chassis Panel PC with IR Touch, J1900ITD15PPCT2LJ1
    15”Chassis Panel PC with Tempered Glass, J1900ITD15PPCG1LJ1
    15”Chassis Panel PC with Resistive Touch, i5ITD15PPCT1LI5
    15”Chassis Panel PC with PCAP Touch, i5ITD15PPCT5LI5
    15”Chassis Panel PC with IR Touch, i5ITD15PPCT2LJ1
    15”Chassis Panel PC with Tempered Glass, i5ITD15PPCG1LI5

    15" passive cooling chassis durable resistive touch panel PC Intel i3/i5/i7 PoE RS485

    15" passive cooling chassis durable resistive touch panel PC Intel i3/i5/i7 PoE RS485

    APPLICATION


    15" passive cooling chassis durable resistive touch panel PC Intel i3/i5/i7 PoE RS485
