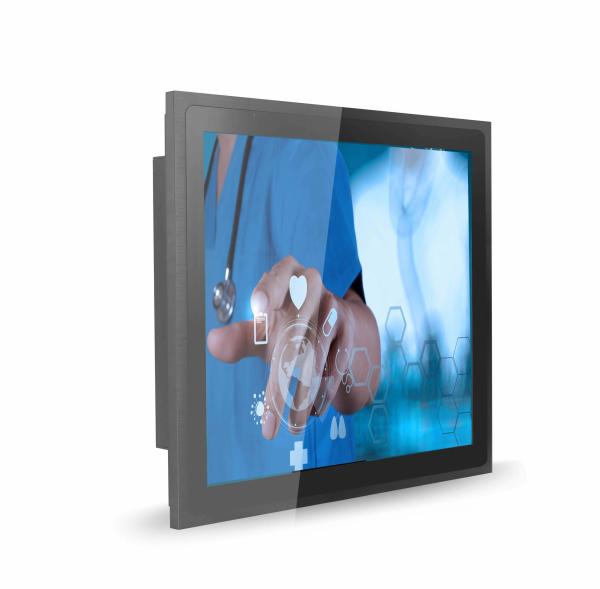

    Aluminum Bezel Touch Display PC 19 Inch Industrial Touch PC 50000 Hours Lifetime

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD19PPCG1X**
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    Aluminum Bezel Touch Display PC 19 Inch Industrial Touch PC 50000 Hours Lifetime

    true flat surface aluminum bezel 19" industrial panel PC

    Specifications:


    Flat Bezel Industrial Panel PC


    Model NameITD19PPCG1X**
    IP RatingIP65 Front Panel

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® HD Graphics, Support 1080pChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch)19”
    Display Active Screen Size (cm)376.3(H)×301.1(V)
    Aspect Ratio5:4
    Physical Resolution1280×1024
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)250
    Contrast Ratio1000:1
    View Angels85/85/80/80
    Backlight/Backlight LifetimeLED Backlight with 50000Hours'Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption42.5W

    Order Information


    19”Panel Mount Panel PC with Resistive Touch, J1900ITD19PPCT1XJ1
    19”Panel Mount Panel PC with PCAP Touch, J1900ITD19PPCT5XJ1
    19”Panel Mount Panel PC with Tempered Glass, J1900ITD19PPCG1XJ1
    19”Panel Mount Panel PC with Resistive Touch, i5ITD19PPCT1XI5
    19”Panel Mount Panel PC with PCAP Touch, i5ITD19PPCT5XI5
    19”Panel Mount Panel PC with Tempered Glass, i5ITD19PPCG1XI5

    The ITD all-in-one Embedded Panel PCs with x86 open platform and preinstalled Windows Embedded operating systems enable fast and economical deployment of improved HMI systems for operator control and monitoring applications. The Celeron J1900 processor was produced by Intel as a high-powered chip that would work in a wide range of thermal conditions, making it a highly desirable solution for industrial control applications.


    FEATURES

    - Supports Intel Celeron CPU up to 2.0 GHz

    - Low power consumption and economical solution

    - Compact size and high performance

    - High speed Giga LAN

    - On-board IDE interface

    - High precision touchscreen

    - Industry level of durability against dust and powerful jetting IP65 / NEMA 4



    Product Display:



    APPLICATION
