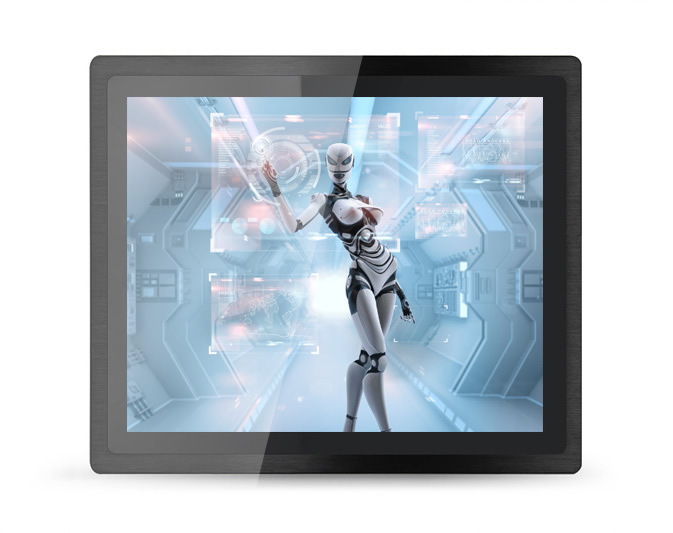

    zero bezel true flat surface 8" industrial touch panel PC

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD08PPCT5XJ
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    zero bezel true flat surface 8" industrial touch panel PC

    zero bezel true flat surface 8" industrial touch panel PC


    Specifications:


    Flat Bezel Industrial Panel PC


    Model NameITD08PPCG1X**
    IP RatingIP65 Front Panel

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® HD Graphics, Support 1080pChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch)8”
    Display Active Screen Size (cm)162(H)×121.5(V)
    Aspect Ratio16:10
    Physical Resolution1280×800
    Maximum Resolution Supported1920×1200
    Colors16.7M
    Brightness (cd/m²)250
    Contrast Ratio500:1
    View Angels70/70/50/70
    Backlight/Backlight LifetimeLED Backlight with 50000Hours'Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption20.25W

    Order Information


    8”Panel Mount Panel PC with Resistive Touch, J1900ITD08PPCT1XJ1
    8”Panel Mount Panel PC with PCAP Touch, J1900ITD08PPCT5XJ1
    8”Panel Mount Panel PC with Tempered Glass, J1900ITD08PPCG1XJ1
    8”Panel Mount Panel PC with Resistive Touch, i5ITD08PPCT1XI5
    8”Panel Mount Panel PC with PCAP Touch, i5ITD08PPCT5XI5
    8”Panel Mount Panel PC with Tempered Glass, i5ITD08PPCG1XI5

    ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.


    BENEFITES

    • Exceptional quality and highly engineered industrial panel computer
    • High Performance Processor, Graphics, Memory and Power
    • Edge to edge design with true flat surface, easy to clean
    • Optional touchscreens like resistive, PCAP
    • All steel construction designed for harsh and industrial environments
    • Easy-to-install embedded/panel mounting with clamps
    • Robust design with aluminum NEMA 4/ IP65 front panel
    • Flexible, reliable, and ruggedized for open platform HMI/SCADA


    Product Display:



    APPLICATION
