    TFT Display Waterproof Panel PC Open Frame 21.5" Industrial Touch Screen PC

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD21PPCT1HBFJ1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    TFT Display Waterproof Panel PC Open Frame 21.5" Industrial Touch Screen PC

    TFT Display Waterproof Panel PC Open Frame 21.5" Industrial Touch Screen PC

    ITD Waterproof panel PC rugged marine grade high brightness LCDs are designed for use in marine environments. These devices are ready to be panel-mounted into a console. Its front bezel provides maximum protection from water and other elements as it meets various NEMA and IP rating standards. It delivers high performance computing power with its Intel processors.


    BENEFITES OF Waterproof Panel PC


    - 21.5" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)


    - High-Luminance Solid-State LED-enhanced Backlighting


    - 4GB, Max.8G System Memory


    - 500GB HDD or 126GB SSD, Bigger Capacity Optional


    - Energy Efficient, Low Power Consumption


    - High Environmental Performance and Reliability


    - SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)


    - Wide Operational Temperature Range, -10°C to +60°C


    Open Frame High Brightness Panel PC


    Model NameITD21PPCG1HBF**
    IP RatingN/A

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch/cm)21.5”
    Display Active Screen Size (mm)476.64(H)X268.11(V)
    Aspect Ratio16:9
    Physical Resolution1920X1080
    Maximum Resolution Supported1920X1080
    Colors16.7M
    Brightness (cd/m²)1000(1500 Optional)
    Contrast Ratio1000:1
    View Angels85/85/80/80
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption60W

    Order Information


    21.5”1000nits Open Frame Panel PC with Resistive Touch, J1900ITD21PPCT1HBFJ1
    21.5”1000nits Open Frame Panel PC with PCAP Touch, J1900ITD21PPCT5HBFJ1
    21.5”1000nits Open Frame Panel PC with IR Touch, J1900ITD21PPCT2HBFJ1
    21.5”1000nits Open Frame Panel PC with Tempered Glass, J1900ITD21PPCG1HBFJ1
    21.5”1000nits Open Frame Panel PC with Resistive Touch, i5ITD21PPCT1HBFI5
    21.5”1000nits Open Frame Panel PC with PCAP Touch, i5ITD21PPCT5HBFI5
    21.5”1000nits Open Frame Panel PC with IR Touch, i5ITD21PPCT2HBFJ1
    21.5”1000nits Open Frame Panel PC with Tempered Glass, i5ITD21PPCG1HBFI5

    APPLICATION

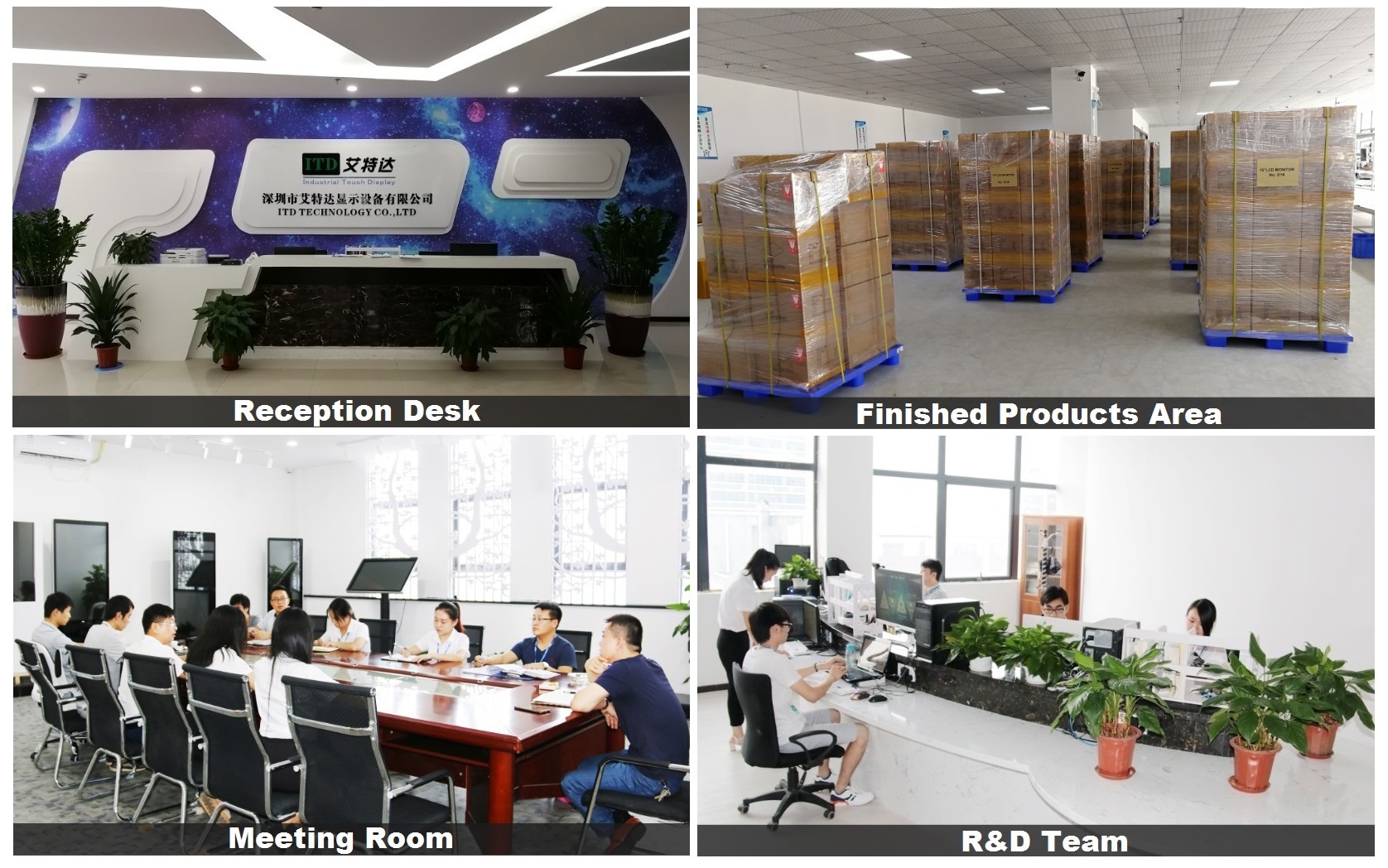

    OUR FACTORY
