    High Definition 6.5 Inch Waterproof Panel PC Panel Mount IP65 Aluminum Front Bezel

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD06PPCT1HBPJ1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    High Definition 6.5 Inch Waterproof Panel PC Panel Mount IP65 Aluminum Front Bezel

    High Definition 6.5 Inch Waterproof Panel PC Panel Mount IP65 Aluminum Front Bezel


    ITD's high brightness panel mount Waterproof Panel PC's Equipped with powerful Intel Processors, deliver high performance industrial sunlight readable computing with feature rich, low-profile mechanical configurations suitable for harsh environments, and are compliant to NEMA and Ingress Protection standards for front panel.


    BENEFITES OF Waterproof Panel PC

    - 6.5" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)


    - High-Luminance Solid-State LED-enhanced Backlighting


    - Intel Celeron 2 GHz Quad Core Processor


    - 4GB, Max.8G System Memory


    - NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel


    - Energy Efficient, Low Power Consumption


    - High Environmental Performance and Reliability


    - Wide Operational Temperature Range, -10°C to +60°C


    High Brightness Panel Mount Panel PC


    Model NameITD06PPCG1HB**
    IP RatingIP65 Front Panel

    PC Systems Options


    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® HD Graphics, Support 1080pChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch/cm)7”
    Display Active Screen Size (mm)132.48(H)X99.36(V)
    Aspect Ratio4:3
    Physical Resolution640640X480
    Maximum Resolution Supported1920X1080
    Colors16.7M
    Brightness (cd/m²)1000(1500 Optional)
    Contrast Ratio500:1
    View Angels70/70/60/60
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption20W

    Order Information


    6.5”1000nits Panel Mount Panel PC with Resistive Touch, J1900ITD06PPCT1HBJ1
    6.5”1000nits Panel Mount Panel PC with PCAP Touch, J1900ITD06PPCT5HBJ1
    6.5”1000nits Panel Mount Panel PC with IR Touch, J1900ITD06PPCT2HBJ1
    6.5”1000nits Panel Mount Panel PC with Tempered Glass, J1900ITD06PPCG1HBJ1
    6.5”1000nits Panel Mount Panel PC with Resistive Touch, i5ITD06PPCT1HBI5
    6.5”1000nits Panel Mount Panel PC with PCAP Touch, i5ITD06PPCT5HBI5
    6.5”1000nits Panel Mount Panel PC with IR Touch, i5ITD06PPCT2HBI5
    6.5”1000nits Panel Mount Panel PC with Tempered Glass, i5ITD06PPCG1HBI5

    APPLICATION

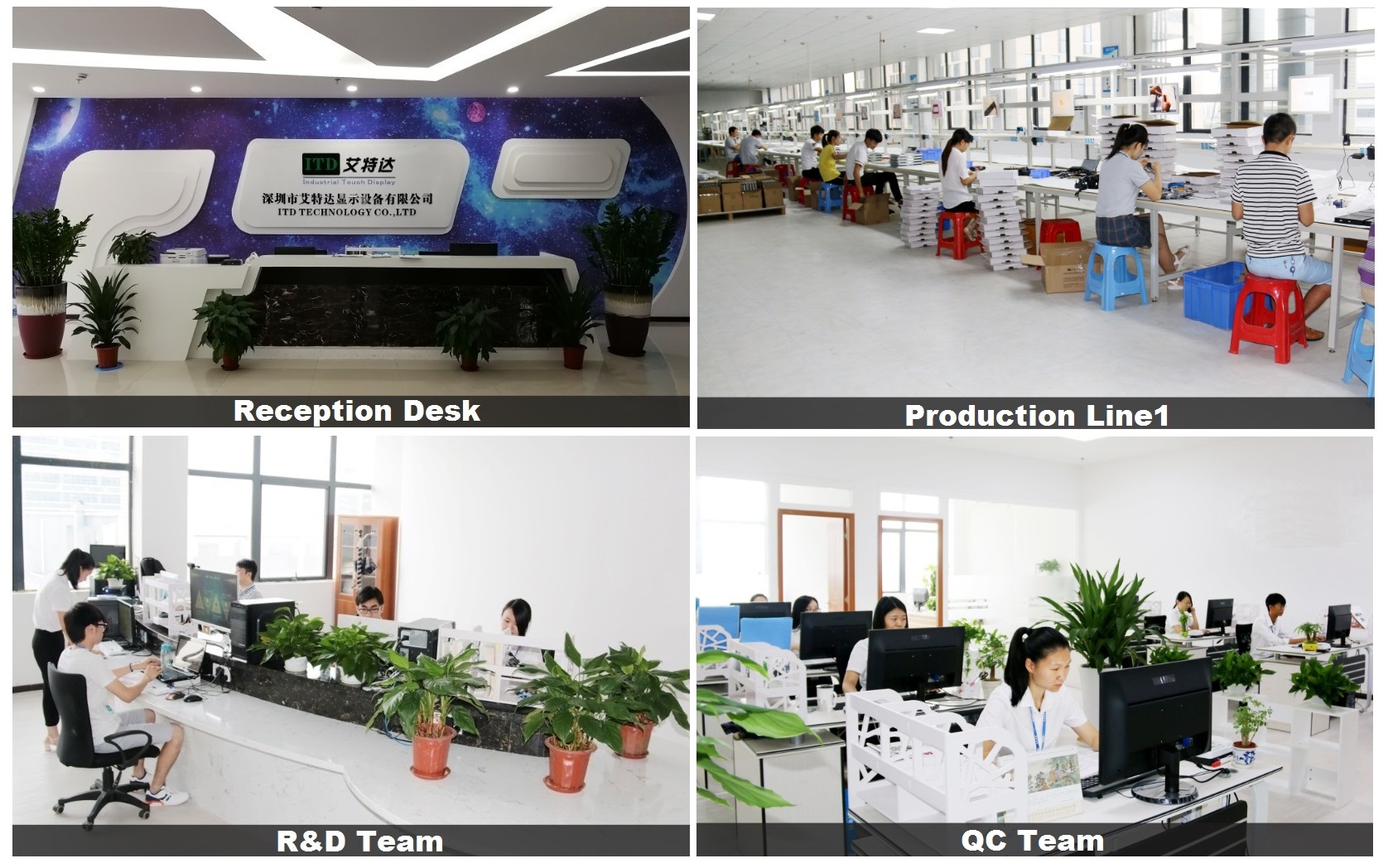

    OUR FACTORY
