High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen from wholesalers

    Buy cheap High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen from wholesalers
    • Buy cheap High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen from wholesalers
    • Buy cheap High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen from wholesalers

    High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD156PPCT1HBJ1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen

    High Definition IP65 Panel PC 15.6 Inch With PCAP Touchscreen

    ITD's 15.6" high bright IP65 Panel PC's are built with industrial grade components, and integrated with the Intel Celeron Processor J1900. These sunlight readable Panel PC's are perfect for many demanding environments that require a space saving solution capable of 24/7 high performance computing. All of our panel pc bezels are gasket sealed for added NEMA and Ingress Protection

    IP65 Panel PC BENEFITES

    -15.6" Very Bright Active Matrix Sunlight Readable TFT Display; 1500 nits (cd/m2)


    -High-Luminance Solid-State LED-enhanced Backlighting


    -Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional


    -Intel Celeron 2 GHz Quad Core Processor


    -4GB, Max.8G System Memory


    -High Environmental Performance and Reliability


    -SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)


    -Wide Operational Temperature Range, -10°C to +60°C


    Flat Bezel High Brightness Industrial Panel PC
    Model NameITD156PPCG1HBX**
    IP RatingIP65 Front Panel
    PC Systems Options
    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® HD Graphics, Support 1080pChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe
    LCD Panel
    Screen Diagonal (Inch/cm)15.6”
    Display Active Screen Size (cm)344.232(H)×193.536(V)
    Aspect Ratio16:9
    Physical Resolution1366×768
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)1000(1500 Optional)
    Contrast Ratio500:1
    View Angels45/45/30/20
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime
    Touch Panel
    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported
    Power
    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption21W
    Order Information
    15.6”1000nits Panel Mount Panel PC with Resistive Touch, J1900ITD156PPCT1HBXJ1
    15.6”1000nits Panel Mount Panel PC with PCAP Touch, J1900ITD156PPCT5HBXJ1
    15.6”1000nits Panel Mount Panel PC with Tempered Glass, J1900ITD156PPCG1HBXJ1
    15.6”1000nits Panel Mount Panel PC with Resistive Touch, i5ITD156PPCT1HBXI5
    15.6”1000nits Panel Mount Panel PC with PCAP Touch, i5ITD156PPCT5HBXI5
    15.6”1000nits Panel Mount Panel PC with Tempered Glass, i5ITD156PPCG1HBXI5



    APPLICATION

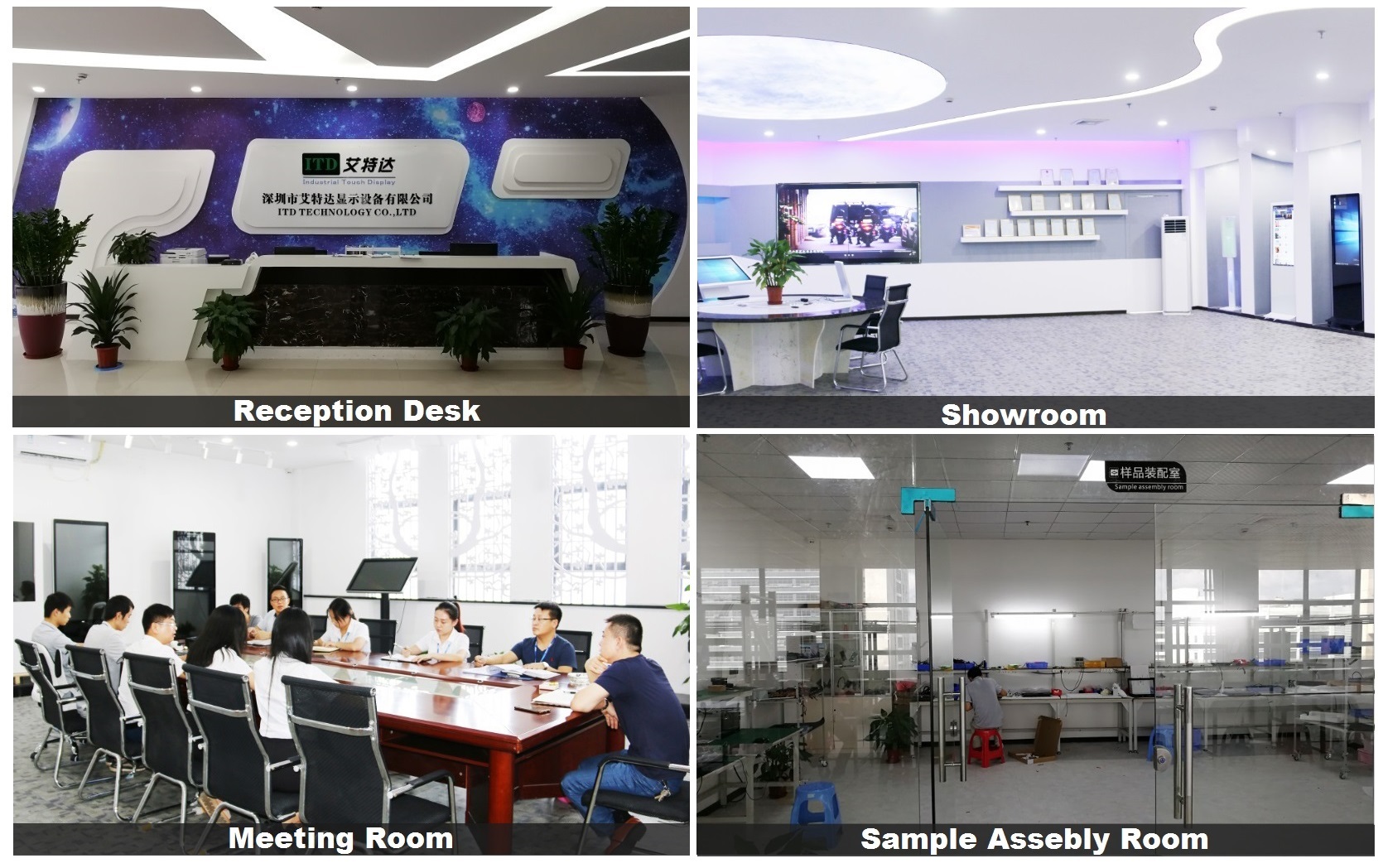

    OUR FACTORY
