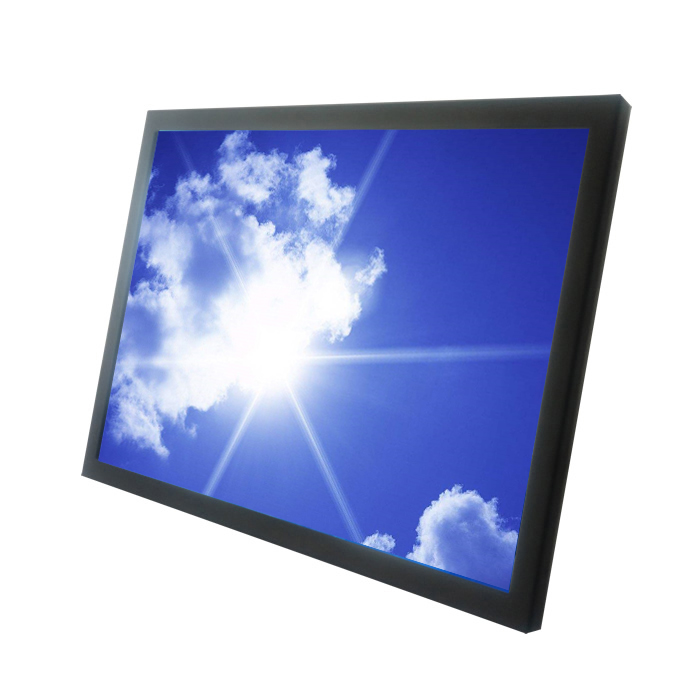

    17 Inch Waterproof Panel PC Resistive Touch Screen IP65 Front Panel

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD17PPCT1HBJ1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    17 Inch Waterproof Panel PC Resistive Touch Screen IP65 Front Panel

    17 Inch Waterproof Panel PC Resistive Touch Screen IP65 Front Panel

    ITD high brightness IP65 panel touch computer features a wide operating temperature range for greater reliability in harsh environments which are common in marine applications. Either in on-shore and off-shore applications, it offers superior display as it is equipped with a dimmable sunlight readable feature. Moreover, there's an optional touchscreen capability for interactive applications. It also supports various I/O ports for flexible connectivity.

    BENEFITES OF 17 Inch Waterproof Panel PC

    -17" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)

    -High-Luminance Solid-State LED-enhanced Backlighting

    -Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

    -Intel Celeron 2 GHz Quad Core Processor

    -4GB, Max.8G System Memory

    -500GB HDD or 126GB SSD, Bigger Capacity Optional

    -NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

    -Resistive Touch Screen Standard (PCAP, IR Touch Optional)

    -Energy Efficient, Low Power Consumption

    -High Environmental Performance and Reliability

    -SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)

    -Wide Operational Temperature Range, -10°C to +60°C


    Chassis High Brightness Panel PC
    Model NameITD17PPCG1HBL**
    IP RatingIP65 Front Panel Optional
    PC Systems Options
    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe
    LCD Panel
    Screen Diagonal (Inch)17”
    Display Active Screen Size (cm)337.92(H)×270.34(V)
    Aspect Ratio4:3
    Physical Resolution1280×1024
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)1000(1500 Optional)
    Contrast Ratio800:1
    View Angels85/85/80/80
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime
    Touch Panel
    Touch OptionsResistive, IR, PCAP, SAW,
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported
    Power
    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption43W
    Order Information
    17”1000nits Chassis Panel PC with Resistive Touch, J1900ITD17PPCT1HBLJ1
    17”1000nits Chassis Panel PC with PCAP Touch, J1900ITD17PPCT5HBLJ1
    17”1000nits Chassis Panel PC with IR Touch, J1900ITD17PPCT2HBLJ1
    17”1000nits Chassis Panel PC with Tempered Glass, J1900ITD17PPCG1HBLJ1
    17”1000nits Chassis Panel PC with Resistive Touch, i5ITD17PPCT1HBLI5
    17”1000nits Chassis Panel PC with PCAP Touch, i5ITD17PPCT5HBLI5
    17”1000nits Chassis Panel PC with IR Touch, i5ITD17PPCT2HBLJ1
    17”1000nits Chassis Panel PC with Tempered Glass, i5ITD17PPCG1HBLI5



    APPLICATION


    OUR FACTORY
