    Full Waterproof IP66 Panel PC 15" VESA Mount 1500nits LED Backlight

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCT1IPHBS2
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

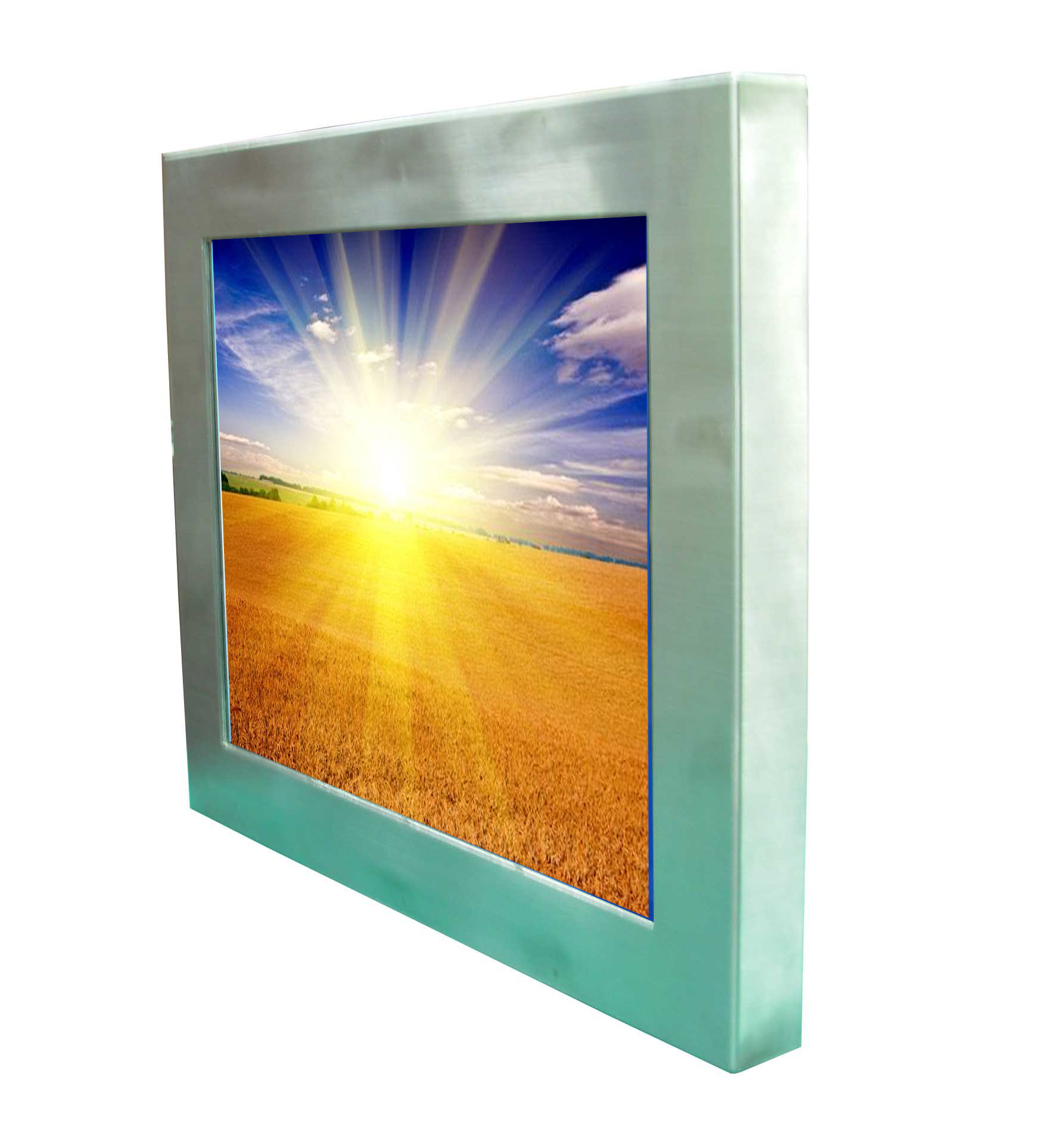

    Full Waterproof IP66 Panel PC 15" VESA Mount 1500nits LED Backlight

    Full Waterproof IP66 Panel PC 15" VESA Mount 1500nits LED Backlight

    ITD full IP66 high brightness panel PC is advanced user friendly LCD display system provides very wide operational temperatures, and unprecedented video input capabilities from traditional VGA to up to HDMI input. It’s enclosure completely sealed to IP65 (NEMA 4) Specifications, protecting against liquid immersion (watertight), rain, dust, ice formation and offers protection from Other Contaminants. All Connectors are environmentally sealed, regardless of connection also to IP65 (NEMA 4).

    BENEFITES of IP66 Panel PC
    -15" Industrial Grade TFT Panel Display, 1500 nits cd/m2
    -True High Brightness Low-Power, high reliability Solid State LED Backlighting:
    -Resolution: XGA 1024 x 768 native
    -Optical Bonded Between TFT Panel and Touch Panel Optional
    -Advanced Deep Dimming to Black Optional
    -Engineered for All-Weathers even in direct sunlight
    -Mounting Configurations: VESA,
    -Default Waterproof Conectors: USB, Power Input, RJ45
    -Machined NEMA 4 (IP65) Rated, Black Powder Coated, Very Rugged Stainless Steel or Aluminum Gasket Sealed Enclosure

    High Brightness Full IP65/IP66 Panel PC

    Model NameITD15PPCG1IPHB**
    IP RatingIP65/IP66(IP67 optional)

    PC Systems Options

    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe
    Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0

    LCD Panel

    Screen Diagonal (Inch/cm)15”
    Display Active Screen Size (mm)304.128(H) ×228.096(V)
    Aspect Ratio4:3
    Physical Resolution1024×768
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)1000 cd/m²
    Contrast Ratio700:1
    View Angels80/80/60/80
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel

    Touch OptionsResistive, PCAP
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation

    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power

    Power IndicatorGreen LED
    Power InputDC12V
    Power Consumption30W

    Order Information

    15”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900ITD15PPCT1IPHBSJ1
    15”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900ITD15PPCT5IPHBSJ1
    15”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900ITD15PPCG1IPHBSJ1
    15”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3ITD15PPCT1IPHBSI3
    15”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3ITD15PPCT5IPHBSI3
    15”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3ITD15PPCG1IPHBSI3
    15”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, J1900ITD15PPCT1IPHBAJ1
    15”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, J1900ITD15PPCT5IPHBAJ1
    15”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Tempered Glass, J1900ITD15PPCG1IPHBAJ1
    15”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, i3ITD15PPCT1IPHBAI3
    15”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, i3ITD15PPCT5IPHBAI3
    15”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900ITD15PPCT1IPHBSJ1
