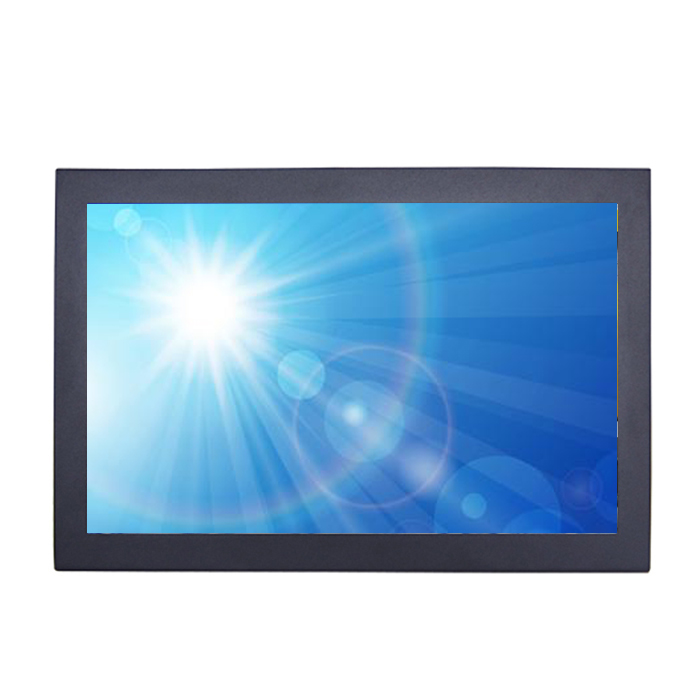

    7 Inch IP65 Panel PC Chassis Mount / VESA Mounting Resistive Touch Screen Standard

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD07PPCT1HBJ1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    7 Inch IP65 Panel PC Chassis Mount / VESA Mounting Resistive Touch Screen Standard

    7 Inch IP65 Panel PC Chassis Mount / VESA Mounting Resistive Touch Screen Standard

    ITD Waterproof panel mounted panel PCs are ideal solutions for a variety of applications on ships, marine platforms, outdoor self-service terminals, etc. These are designed for high reliability and low maintenance in this type of working environments. While we have pre-designed products, we also provide custom designs based on the features and requirements that you want to integrate into the system. In this way, we always have all the possible choices that the client may look for high brightness panel PCs.


    BENEFITES of IP65 Panel PC

    -7" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)

    -High-Luminance Solid-State LED-enhanced Backlighting

    -Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional

    -Intel Celeron 2 GHz Quad Core Processor

    -4GB, Max.8G System Memory

    -500GB HDD or 126GB SSD, Bigger Capacity Optional

    -NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

    -Resistive Touch Screen Standard (PCAP, IR Touch Optional)

    -Energy Efficient, Low Power Consumption

    -High Environmental Performance and Reliability

    -SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)

    -Wide Operational Temperature Range, -10°C to +60°C


    Chassis High Brightness Panel PC
    Model NameITD07PPCG1HBL**
    IP RatingIP65 Front Panel Optional
    PC Systems Options
    ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
    CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
    Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
    Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
    HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
    1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
    1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
    1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
    1×LAN1×LAN1×LAN
    1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
    Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe
    LCD Panel
    Screen Diagonal (Inch)7”
    Display Active Screen Size (cm)152.4(H)×91.44(V)
    Aspect Ratio16:10
    Physical Resolution800×480
    Maximum Resolution Supported1920×1080
    Colors262K
    Brightness (cd/m²)1000(1500 Optional)
    Contrast Ratio500:1
    View Angels65/65/60/50
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime
    Touch Panel
    Touch OptionsResistive, IR, PCAP, SAW,
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported
    Power
    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption22W
    Order Information
    7”1000nits Chassis Panel PC with Resistive Touch, J1900ITD07PPCT1HBLJ1
    7”1000nits Chassis Panel PC with PCAP Touch, J1900ITD07PPCT5HBLJ1
    7”1000nits Chassis Panel PC with IR Touch, J1900ITD07PPCT2HBLJ1
    7”1000nits Chassis Panel PC with Tempered Glass, J1900ITD07PPCG1HBLJ1
    7”1000nits Chassis Panel PC with Resistive Touch, i5ITD07PPCT1HBLI5
    7”1000nits Chassis Panel PC with PCAP Touch, i5ITD07PPCT5HBLI5
    7”1000nits Chassis Panel PC with IR Touch, i5ITD07PPCT2HBLJ1
    7”1000nits Chassis Panel PC with Tempered Glass, i5ITD07PPCG1HBLI5

    APPLICATION


    OUR FACTORY
