Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485 from wholesalers

    Buy cheap Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485 from wholesalers
    • Buy cheap Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485 from wholesalers
    • Buy cheap Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485 from wholesalers

    Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD-MNPC-N2830
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

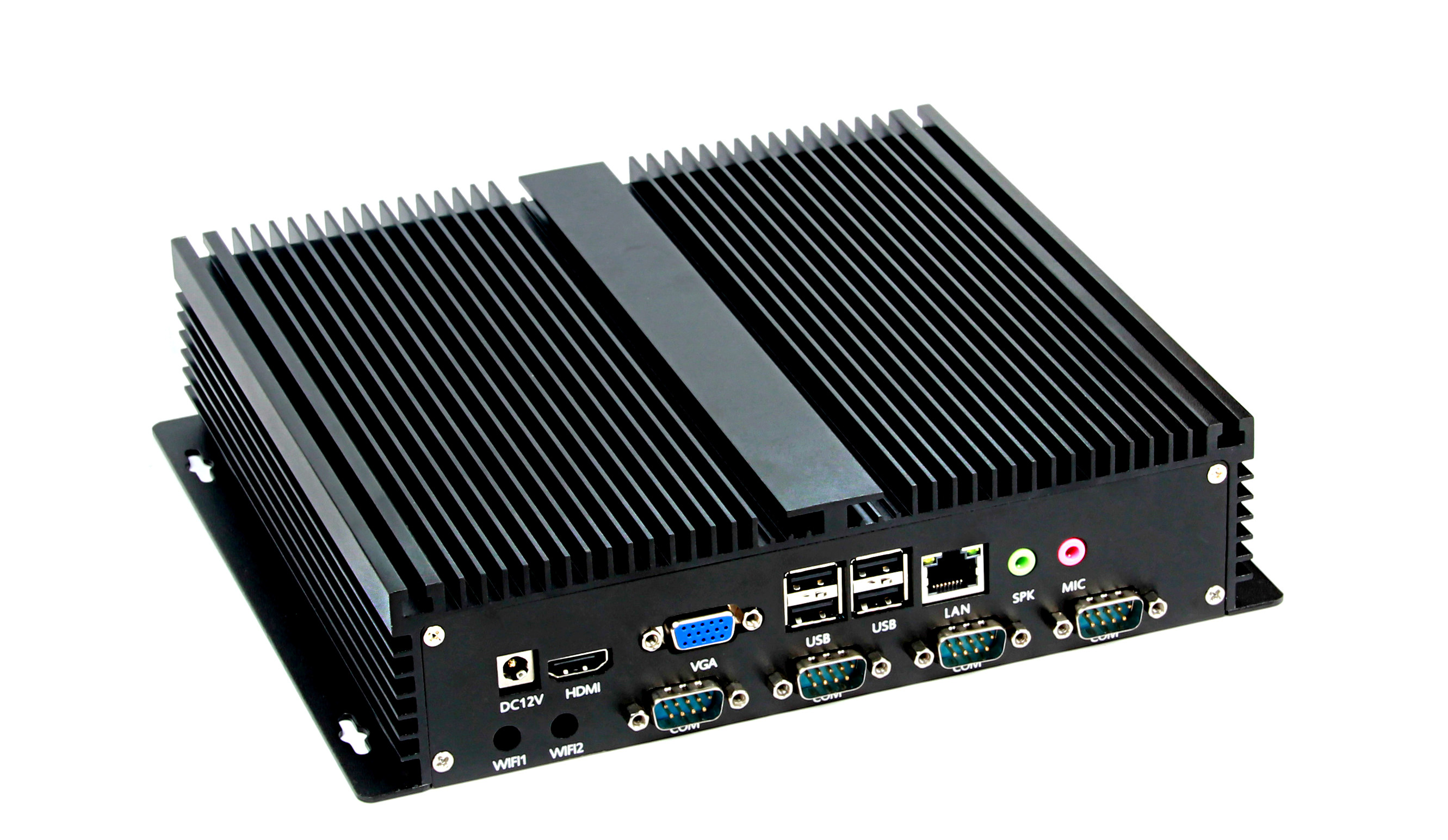

    Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485

    Fanless low power industrial embedded box mini PC computer Intel Celeron N2830 WIFI 2*RJ45 4*USB RS232 RS485


    ITD Industrial Embedded Box PC is ultra-compact industrial computer for repetitive machines and infrastructures. It utilizes an Intel® Celeron® Processor N2830, on-board non-volatile DDR3L-1333 memory and a standard SD card slot. This delivers a great combination of performance, features and functionality at an affordable price, which offer real-time performance, compact footprint and lightweight aluminum die-cast housing and are easy to service, maintenance-free, space-saving and fan-less.


    BENEFITES

    • IoT gateway ready for future requirements
    • Energy-efficient and fan-less IPC Systems
    • Intel Celeron® N2930, 2M Cache, 2.16 GHz
    • Maintenance-free with no rotating disk (HDD)
    • Robust aluminum die-casting housing
    • Power-optimized PC with 32- or 64-bit OS
    • High system availability and data security
    • High data transfer rates and redundancy

    Industrial Embedded Box PC


    Model NameITD-MNPC-N2830
    IP RatingN/A

    PC Systems


    CPUIntel® Celeron N2830 Dual-Core 2.16GHz Processor
    ChipsetIntel® NM70
    GraphicsIntel NM70 Express HD Graphics
    AudioMIC-IN, LINE-OUT
    Memory2GB, up to Max. 8GB
    Storage320GB SATA up Max. 1TB; 32GB SSD up to Max. 512GB (MSATA Supported)
    Driver SupportWindows CE/XP/7/8/10, Linux,

    I/O


    Serial Ports6 x COM
    USB Ports6 x USB2.0, 2 X USB3.0
    HDMI Port1 x HDMI
    VGA Port1 x VGA
    TF Card Slot1 x TF Card Slot
    SD Card Slot1 x SD Card Slot
    Mini PCIeN/A
    AudioMIC-IN, LINE-OUT
    Communication (3G/4G, WIFI)Optional
    LAN1 x 10/100/1000Mbps Ethernet
    Power Port1 x DC 12V Input (1 x ON/OFF Power Switch)

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power ConsumptionTBA

    Operation/Mechanical


    Operating Temperature-10~60℃
    Humidity Range20%~90% (Non Condensing)
    Housing MaterialAluminum Die-Casting
    Housing Dimension (L × W × H216mm x 200mm x 55mm

    Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485

    Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485


    APPLICATION


    Aluminum Housing Fanless Mini Embedded PC 2*RJ45 / 4*USB RS232 RS485
