industrial grade 12.1" open frame monitor high bright touchscreen display

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap industrial grade 12.1" open frame monitor high bright touchscreen display from wholesalers

    Buy cheap industrial grade 12.1" open frame monitor high bright touchscreen display from wholesalers
    • Buy cheap industrial grade 12.1" open frame monitor high bright touchscreen display from wholesalers
    • Buy cheap industrial grade 12.1" open frame monitor high bright touchscreen display from wholesalers

    industrial grade 12.1" open frame monitor high bright touchscreen display

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD12OFT1HB02
    Certification : CE,ROHS,FCC
    Price : TBA
    Payment Terms : T/T,Western Union,Paypal
    Supply Ability : 10000 units per month
    Delivery Time : 10-12 work days
    • Product Details
    • Company Profile

    industrial grade 12.1" open frame monitor high bright touchscreen display

    industrial grade 12.1" open frame monitor high bright touchscreen display


    Specifications:


    Open Frame High Brightness LCD Monitor


    Model NameITD12OFN1HB02
    IP RatingN/A

    LCD Panel


    Screen Diagonal (Inch/cm)12.1”
    Display Active Screen Size (mm)246.0(H) ×184.5(V)
    Aspect Ratio4:3
    Physical Resolution800×600(1024×768 optional)
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m²)1000 cd/m²
    Contrast Ratio800:1
    View Angels89/89/89/89
    Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

    Touch Panel


    Touch OptionsResistive, IR, PCAP, SAW
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Input / Output


    Video Input1 × VGA
    1 × DVI-I
    1 × HDMI
    Audio1 × PC-Audio
    Touch Connector1 × USB
    Power Connector1 × DC2.0

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power


    Power IndicatorGreen LED
    Power InputDC 12V
    Power Consumption22W

    Order Information


    12.1”1000nits Open Frame LCD Monitor with Resistive TouchITD12OFT1HB02
    12.1”1000nits Open Frame LCD Monitor with IR TouchITD12OFT2HB02
    12.1”1000nits Open Frame LCD Monitor with SAW TouchITD12OFT3HB02
    12.1”1000nits Open Frame LCD Monitor with PCAP TouchITD12OFT5HB02
    12.1”1000nits Open Frame LCD Monitor with Tempered GlassITD12OFG1HB02
    12.1”1500nits Open Frame LCD Monitor with Resistive TouchITD12OFT1HB01
    12.1”1500nits Open Frame LCD Monitor with IR TouchITD12OFT2HB01
    12.1”1500nits Open Frame LCD Monitor with SAW TouchITD12OFT3HB01
    12.1”1500nits Open Frame LCD Monitor with PCAP TouchITD12OFT5HB01
    12.1”1500nits Open Frame LCD Monitor with Tempered GlassITD12OFG1HB01

    ITD sunlight readable LCD monitors and displays are used in locations where direct and indirect (reflected) sunlight or high ambient light conditions are present. Brightness levels range from 700 to 3000 nits (depending on LCD panel) which provides the clarity and brilliance your application requires without screen washout or glare.


    FEATURES

    • Exceptional quality and highly engineered industrial monitors
    • Optional touchscreens like resistive, IR, SAW, PCAP
    • All steel construction designed for harsh and industrial environments
    • Easy-to-install cabinet and open frame rear-mount display
    • Multiple mounting options (75/100mm VESA mount and side brackets)
    • High brightness from 1000nits to 1500nits optional
    • Long lasting product cycle for continuity thru all phases of project

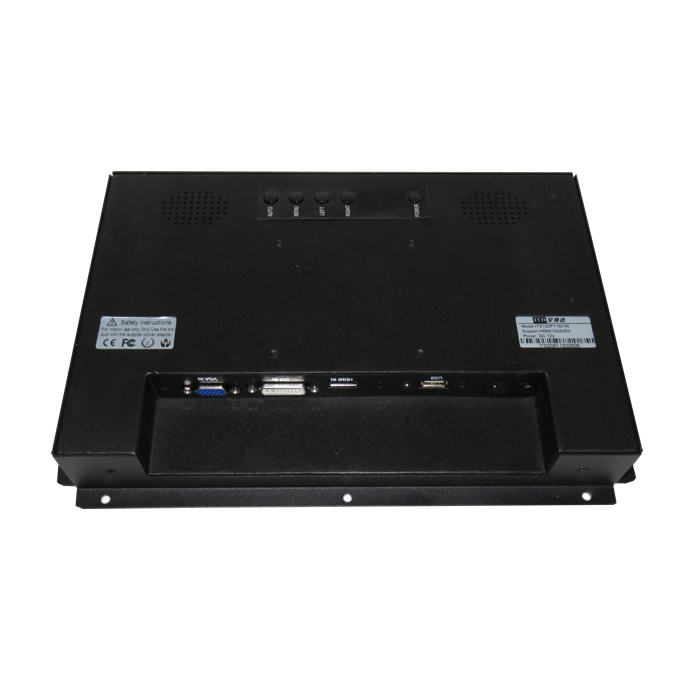

    Product Display:




    Application:



    Quality industrial grade 12.1" open frame monitor high bright touchscreen display for sale
