Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution from wholesalers

    Buy cheap Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution from wholesalers
    • Buy cheap Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution from wholesalers
    • Buy cheap Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution from wholesalers

    Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD23SDN101
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution

    23.4 inch shelf video strip ultra wide stretched bar LCD monitor Android optional for store


    ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people’s attention that’s a perfect alternative of traditional LED displays, Take solace in ITD’s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be with optional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD stretched bar type LCD display comes with standard 500nits or 1000nits that can be used in indoor/outdoor projects that include, but are not limited to digital signage, restaurant displays, airport terminal signs, public transportation or places that would like to have a special screen for signage displays. The special bar LCD monitor is sturdy and fits well into many applications.


    BENEFITES

    • Exceptional quality and commercial-grade reliability and performance
    • Stunning HD display, Energy-Efficient LED Backlight Technology
    • All steel construction designed for harsh & public environments
    • Optional touchscreen like custom projected capacitive touch panel
    • Superior viewing angles, contrast ratio and brightness
    • Optional single media player, network media player integrated
    • Portrait and landscape display flexibility
    • Unique design accounts for heat ventilation
    • Long lasting product cycle for continuity thru all phases of project

    Stretched Bar LCD Display


    Model NameITD239SDN1**
    IP RatingOptional

    Configuration Options


    Single LCD MonitorSingle Media PlayerARM Android Based RK3288(RK3368 optional)
    1×VGA InputChipset: MSTARCPU: Quad-Core Cortex-A17 1.8GHz
    1×DVI InputVideo Formats Supported: MP4,AVI,DAT,MPG,RM,RMVB,AVC,FLVChipset: N/A
    1×HDMI InputMemory: 1G/2G
    1×DC 24V Input

    Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

    File Formats Supported: FAT, FAT32, NTFS

    HDD/SSD: 8G
    1×HDMI

    Picture Formats Supported: JPEG, BMP, GIF, PNG

    1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot

    1×USB 2.0
    1×mini-SD slot
    1×LAN
    1×Audio Out1×Audio Out
    Expansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

    LCD Panel


    Screen Diagonal (Inch)23.4"
    Display Active Screen Size (mm)699(H)×61(V)
    Aspect Ratio16:3
    Physical Resolution1920×168
    Maximum Resolution Supported1920×168
    Colors16.7M
    Brightness (cd/m²)500 (1000 Optional)
    Contrast Ratio3000:1
    View Angels89/89/89/89
    Backlight/Backlight LifetimeLED Backlight with 50000Hours'Lifetime

    Touch Panel


    Touch Options

    Tempered Glass

    PCAP (Customized)

    Optional

    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

    Operation


    Operating Temperature Range-10~60°C (-20~70°C Optional)
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power /Speakers


    Power IndicatorGreen LED
    Power InputInternal Power Supply, AC 100V~240V

    Power Consumption

    Speakers

    73W

    Optional

    Order Information


    23.4”Stretched LCD MonitorITD23SDN101
    23.4”Stretched LCD with Single Media PlayerITD23SDN1A1
    23.4”Stretched LCD with Android Media PlayerITD23SDN1E1
    23.4”Stretched LCD Monitor 1000nitsITD23SDN1H01
    23.4”Stretched LCD with Single Media Player 1000nitsITD23SDN1HA1
    23.4”Stretched LCD with Android Media Player 1000nitsITD23SDN1HE1

    Ultra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High ResolutionUltra Wide Stretched Bar LCD Monitor Android 23.4 Inch Shelf Video Strip High Resolution

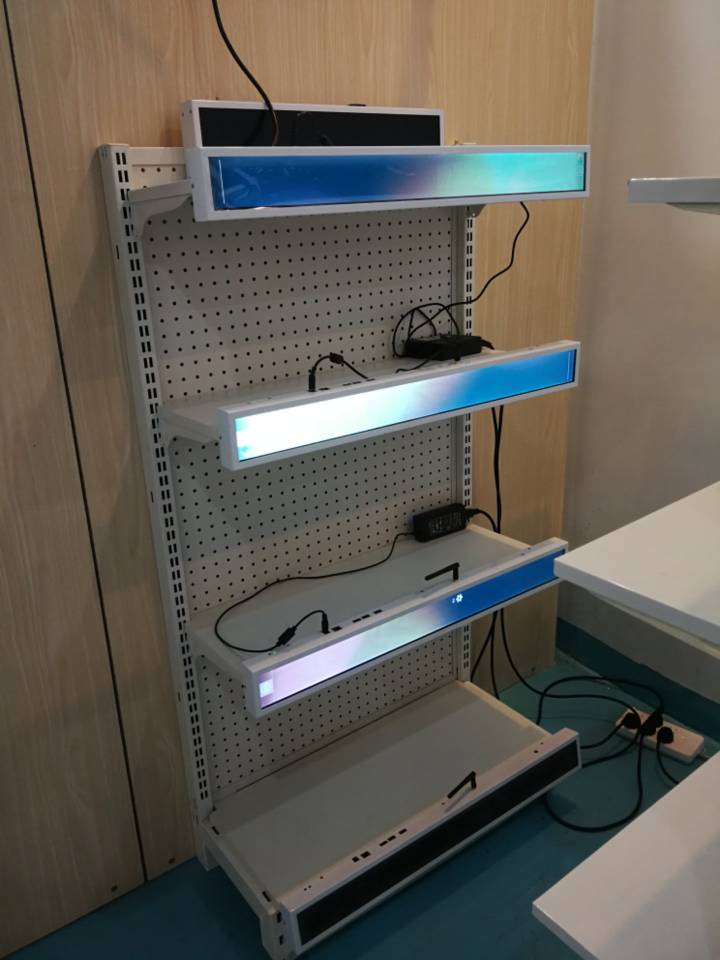

    OUR FACTORY
