    7 Inch Waterproof Touch Screen Computer Monitor PCAP Auto Dimming 1000 Nits WIFI BT

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD07PPCT5HBIPAE1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    7 Inch Waterproof Touch Screen Computer Monitor PCAP Auto Dimming 1000 Nits WIFI BT

    7inch waterproof outdoor robust aluminum casing PCAP touch PC auto-dimming 1000nits WIFI BT


    Specifications:

    ModelITD07PPCG1HBIPSE2ITD10PPCG1HBIPSE2ITD12PPCG1HBIPSJE2
    Size7” (16:9)10.4” (4:3)12.1”(4:3)
    Active Area156.6(W) x 81.6(H)211.2(W) x 158.4(H)246.0(H) x 184.5(V)
    Contrast Ratio700:1500:1500:1
    Resolution1024x600800x600 or 1024x768800x600 or 1024x768
    Brightness1000nits1000nits1000nits
    Viewing Angles80/80/80/8070/70/60/7070/70/60/60
    BacklightLEDLEDLED

    7inch Full IP67 high brightness panel PC ITD12PPCT1HBIPAE1 is an ARM based Cortex RK3288 processor integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This PC has a 7” LCD, with complete aluminum chassis and anti-corrosive. This HMI system features fan-less design and IP67/NEMA 12X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.

    SystemCPUARM Quad Core RK3288,Main CPU frequency:1.6GHz;
    MemoryDDR2, 2Gb
    Flash8Gb
    StorageUSB 2.0 Host
    OS SupportAndroid 4.4/5.1
    I/OSerial Ports1 x COM (Optional)
    USB Ports1 x USB 2.0(Waterproof Connector and Cable)
    Power Port1 x 12V DC Jack(Waterproof Connector and Cable)
    HDMI Output1 x HDMI (Optional)
    LAN1 x 10/100Mbps Ethernet(Waterproof Connector and Cable)
    WIFIBuilt-in, 802.11a/b/g/h (optional)
    Mounting75 x 75/100 x 100mm VESA Mount (Panel Mount optional)
    Operating Temperature-10~60℃ (-20~70℃ Optional)
    Storage Temperature-20~70℃
    Order Information1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPSE2
    1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPSE2
    1000nits Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPSE2
    1000nits Stainless Steel Full IP67 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPSE7
    1000nits Stainless Steel Full IP67 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPSE7
    1000nits Stainless Steel Full IP67 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPSE7
    1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPAE2
    1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPAE2
    1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPAE2
    1000nits Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD07PPCG1HBIPXE2
    1000nits Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPXE2
    1000nits Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPXE2
    1500nits Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD07PPCT1HBIPSE1
    1500nits Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD07PPCT5HBIPSE1

    FEATURES

    •High contrast color TFT LCD display supports resolution up to 1024 x 600

    •Rugged aluminum alloy enclosure design with high EMC and IP65/IP66 NEMA 4/4X protection

    •Supports DDC 1/2B for Plug & Play compatibility

    •Embedded/Panel mounting via clamps supported

    •For I/O part to be IP65, it's suggested to use LAN/USB/DC.

    •Built-in WIFI

    •CE, FCC, RoHS Compliance


    Optional

    •SDD 32G

    •Light Sensor

    •High brightness, sunlight readable

    •Resistive touch screen, PCAP touch screen

    •Customization for other inches

    •Stainless steel housing, Steel housing



    Product Display:


    7 Inch Waterproof Touch Screen Computer Monitor PCAP Auto Dimming 1000 Nits WIFI BT7 Inch Waterproof Touch Screen Computer Monitor PCAP Auto Dimming 1000 Nits WIFI BT

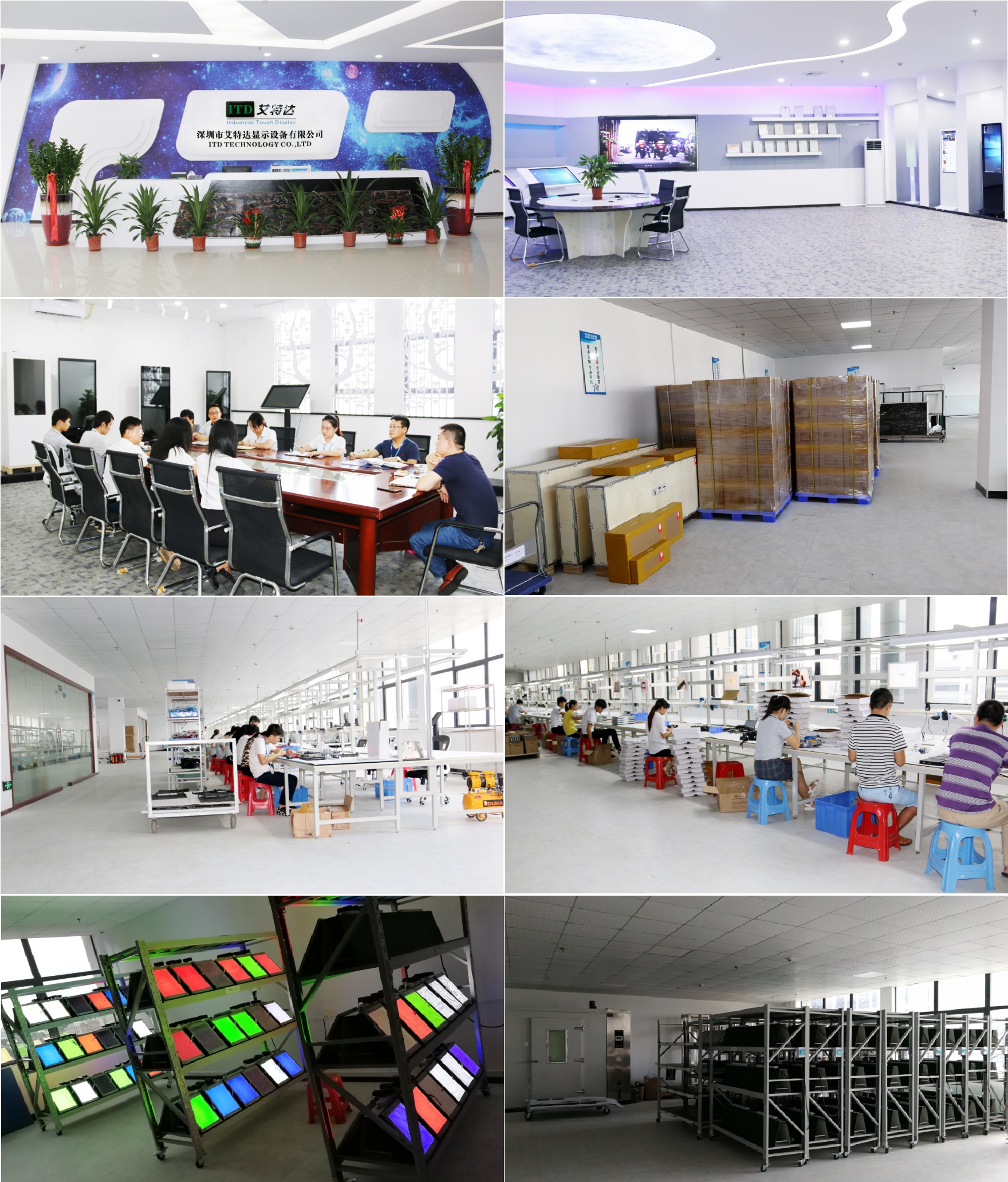

    OUR FACTORY
