    8.4'' Rugged Stainless Steel LCD Waterproof IP66 Touch Screen Monitor 800×600 SVGA

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD08CMT1IPS1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    8.4'' Rugged Stainless Steel LCD Waterproof IP66 Touch Screen Monitor 800×600 SVGA

    8.4inch rugged stainless steel waterproof IP66 touch screen monitor 800×600 SVGA high brightness optional


    ITD rugged industrial full IP65/IP66 LCD display series features industrial-duty fully sealed NEMA 4/IP65 stainless steel chassis, for specially use in hygienic and harsh indoor/outdoor environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.


    Specifications:

    PanelCell Type/Glass SurfaceTFT
    Aspect Ratio/Size8.4” 4:3
    Active Area/Pixel Pitch170.4(W) x 127.8(H)/ 0.213mm
    Native Resolution/Colors800 x 600 /262K
    Brightness/Contrast1000nits/600:1
    Response Time30ms
    Viewing Angle(Typical)80/80/80/60
    Light SourceLED backlight with 50000hours’lifetime
    Default Waterproof ConnectorVGA Input, DC 12V Input, USB Port(Touch Version Only)
    Operating Temperature-10℃~60℃ (-20℃~70℃ Optional)
    Convenient FeaturesBacklight adjustment, Plug & Play, OSD Multi-Languages
    PowerExternal AC-to-12VDC power adapter with universal/Auto-Sensing
    Power ConsumptionOperation/Power SavingBelow 15W
    Touch Panel5 wires Resistive Touch Screen
    Order Information8.4” stainless steel IP66 monitor with PCAP touch/ITD08CMT5IPHBS2
    8.4” stainless steel IP66 monitor with tempered glass/ITD08CMG1IPHBS2

    FEATURES

    ▪IP65/IP66 sealed, with anti-corrosive rubber providing 360 degree protection

    ▪Full IP65/IP66 I/O connectors protect from any particles, water, and corrosive agents

    ▪Modularize mechanical design provides flexible product configuration and easy maintenance

    ▪Complete custom design/solution

    ▪CE, FCC, RoHS Compliance


    Optional

    •Resistive touch, IR touch, PCAP touch, AR/AG protective glass

    •Optical bonding

    •HDMI input

    •Aluminum alloy housing, economical steel housing

    •Full IP67

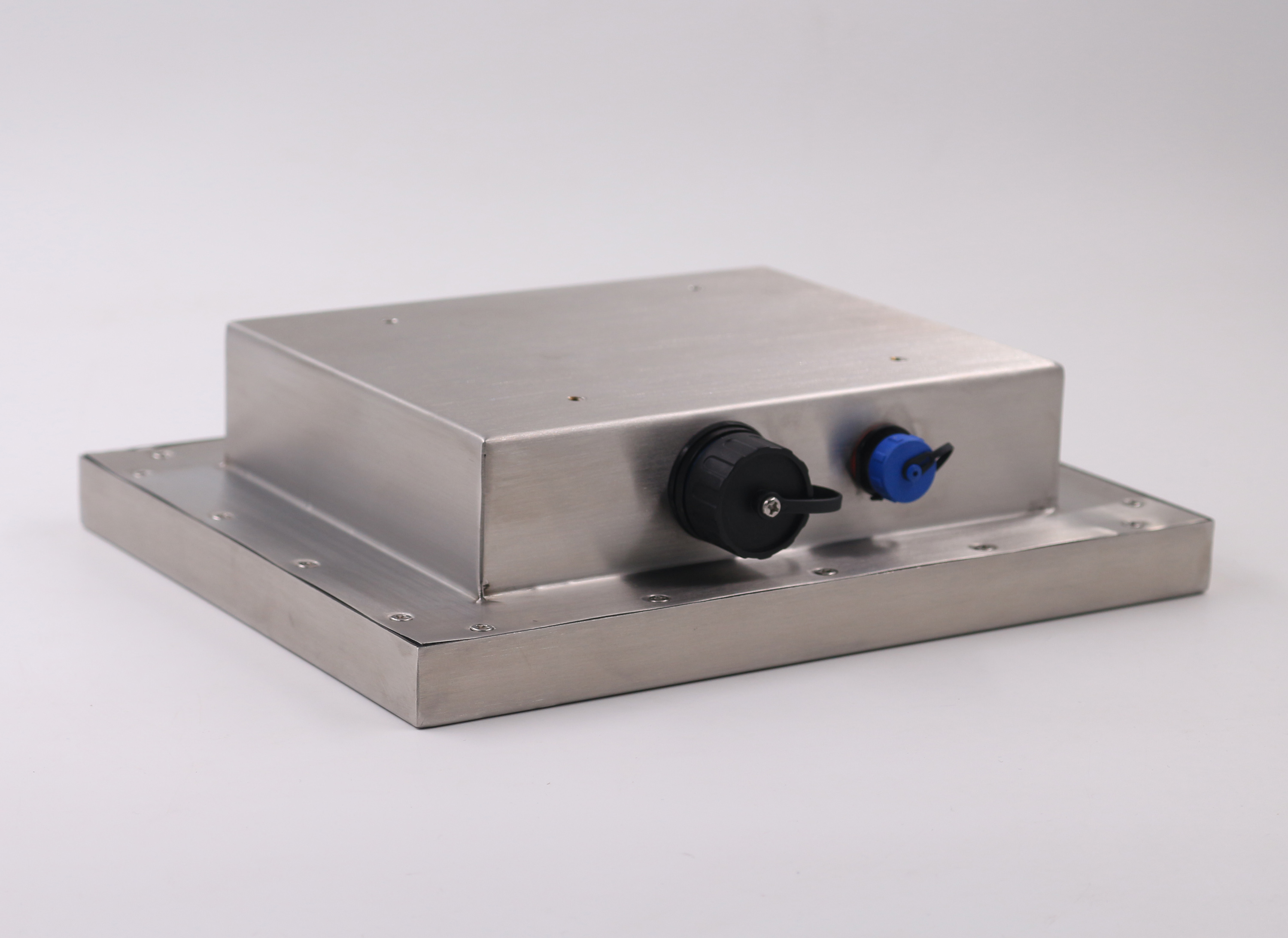

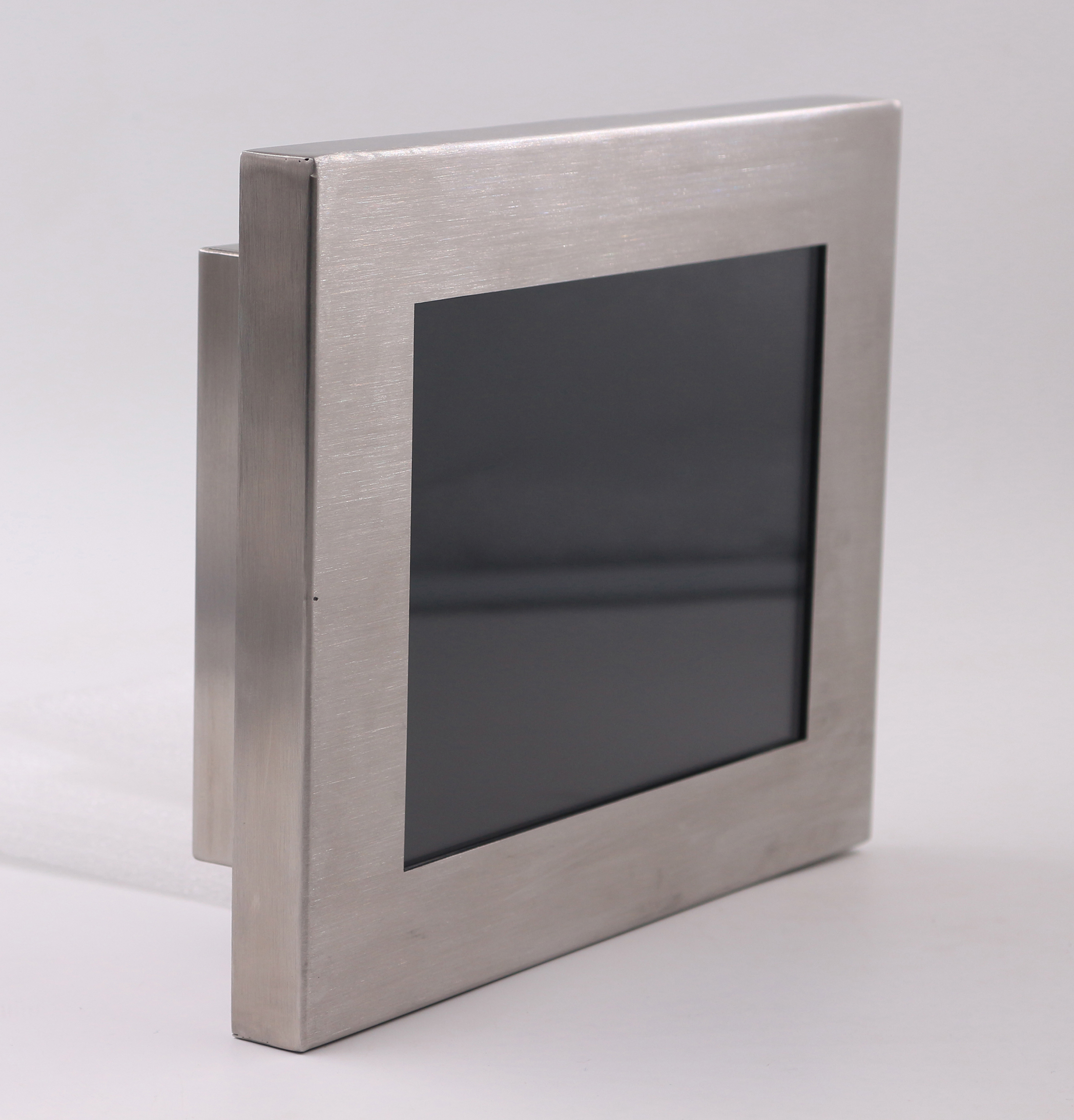

    Product Display:
