Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel from wholesalers

    Buy cheap Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel from wholesalers
    • Buy cheap Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel from wholesalers
    • Buy cheap Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel from wholesalers

    Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD101PPCT5KE2
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Price : TBA
    • Product Details
    • Company Profile

    Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel

    10.1inch Android 7.1 Octa-Core RK3399 PCAP Touch AIO Panel Tablet PC with bluetooth ideally for retail


    ITD 17” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Eight-Core Cortex-A72 Processor RK3399 2.0GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 17” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.


    Specifications:


    PARAMETERS

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio10.1”/16:10
    Active Area/ Pixel Pitch216.81(W) × 135.50(H)mm /0.113 × 0.113mm
    Native Resolution/ Colors1920 x 1200/16.7M
    Brightness/ Contrast300cd/㎡/800:1
    Response Time14ms
    Viewing Angle(Typical)80/80/80/80
    Light SourceLED Backlight with 50000Hours’Lifetime

    System

    CPU: ARM Eight-Core RK3399,Main CPU frequency:2.0GHz;

    GPU: Mali-T860 GPU, Supports AFBC(ARM Frame Buffer Compression)

    SDRAM: 4G

    Flash: 32G

    OS: Android 7.1

    Bluetooth: Bluetooth 4.1

    Video Decoder: 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps

    1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

    Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

    Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

    /H264/VP8/MVC

    Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

    Input / Output

    1 × HDMI

    4 × USB 2.0 Host, 1 × USB 3.0 Host

    1 × TF Card Support 1~64GB

    1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E)

    1 × DC 12V 2.0

    Operating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information10.1”Zero-Bezel Android Panel PC with Tempered Glass/ITD101PPCG1KE2

    FEATURES
    • Easy-to-clean, true flat front surface without bezel
    • Card Reader like NFC, RFID, etc integrated
    • Ten independent touch points with anti-vandalism & scratch
    • Responds to a light touch to activate response
    • Eliminates dust and debris build-up at the edge and corners of the display
    • Provides improved power efficiency and reduced consumption
    • Ruggedized levels of NEMA 4, IP65 ratings for front panel
    • All steel and aluminum frame construction designed for public and industrial environments
    • CE, FCC, RoHS Compliance
    OPTIONAL
    •WIFI, Bluetooth
    •Camera, Microphone built-in
    •VESA brackets, desktop stand



    Product Display:

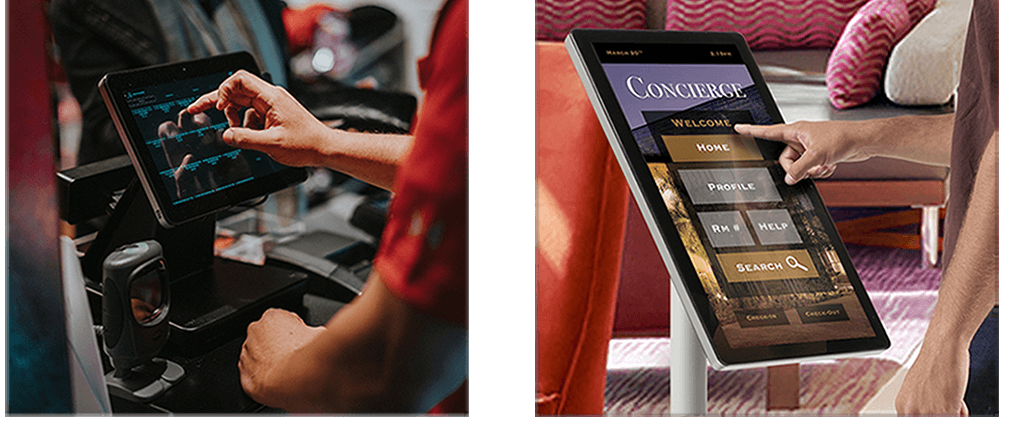

    Applications:



    Product Tags:

    touch panel computer



    touch monitor pc


    Quality Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel for sale
