Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera from wholesalers

    Buy cheap Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera from wholesalers
    • Buy cheap Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera from wholesalers
    • Buy cheap Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera from wholesalers

    Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD12PPCT5HBIPAE1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

    Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera

    Full IP67 Rugged Aluminum outdoor PCAP multi touch Android PC RK3288 2G RAM 8G Flash with Camera


    12.1” Full IP67 high brightness panel PC ITD12PPCT1HBIPAE1 is an ARM based Cortex RK3288 processor integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This PC has a 12.1” LCD, with complete aluminum chassis and anti-corrosive. This HMI system features fan-less design and IP67/NEMA 12X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.


    Specifications:

    ModelITD101PPCG1HBIPSE2ITD10PPCG1HBIPSE2ITD12PPCG1HBIPSJE2
    Size10.1” (16:10)10.4” (4:3)12.1”(4:3)
    Active Area216.96(W) x 135.6(H)211.2(W) x 158.4(H)246.0(H) x 184.5(V)
    Contrast Ratio700:1500:1500:1
    Resolution1280x800800x600 or 1024x768800x600 or 1024x768
    Brightness1000nits1000nits1000nits
    Viewing Angles70/70/60/7070/70/60/7070/70/60/60
    BacklightLEDLEDLED

    SystemCPUARM Quad Core RK3288,Main CPU frequency:1.6GHz;
    MemoryDDR2, 2Gb
    Flash8Gb
    StorageUSB 2.0 Host
    OS SupportAndroid 4.4/5.1
    I/OSerial Ports1 x COM (Optional)
    USB Ports1 x USB 2.0(Waterproof Connector and Cable)
    Power Port1 x 12V DC Jack(Waterproof Connector and Cable)
    HDMI Output1 x HDMI (Optional)
    LAN1 x 10/100Mbps Ethernet(Waterproof Connector and Cable)
    WIFIBuilt-in, 802.11a/b/g/h (optional)
    Mounting75 x 75/100 x 100mm VESA Mount (Panel Mount optional)
    Operating Temperature-10~60℃ (-20~70℃ Optional)
    Storage Temperature-20~70℃
    Order Information1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD12PPCG1HBIPSE2
    1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD12PPCT1HBIPSE2
    1000nits Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD12PPCT5HBIPSE2
    1000nits Stainless Steel Full IP67 Android Panel PC with Tempered Glass: ITD12PPCG1HBIPSE7
    1000nits Stainless Steel Full IP67 Android Panel PC with Resistive Touch: ITD12PPCT1HBIPSE7
    1000nits Stainless Steel Full IP67 Android Panel PC with PCAP Touch: ITD12PPCT5HBIPSE7
    1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Tempered Glass: ITD12PPCG1HBIPAE2
    1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Resistive Touch: ITD12PPCT1HBIPAE2
    1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5HBIPAE2
    1000nits Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD12PPCG1HBIPXE2
    1000nits Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD12PPCT1HBIPXE2
    1000nits Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD12PPCT5HBIPXE2
    1500nits Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD12PPCT1HBIPSE1
    1500nits Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD12PPCT5HBIPSE1

    FEATURES

    •High contrast color TFT LCD display supports resolution up to 1024 x 768

    •Rugged aluminum alloy enclosure design with high EMC and IP65/IP66 NEMA 4/4X protection

    •Supports DDC 1/2B for Plug & Play compatibility

    •Embedded/Panel mounting via clamps supported

    •For I/O part to be IP65, it's suggested to use LAN/USB/DC.

    •Built-in WIFI

    •CE, FCC, RoHS Compliance


    Optional

    •SDD 32G

    •Light Sensor

    •High brightness, sunlight readable

    •Resistive touch screen, PCAP touch screen

    •Customization for other inches

    •Stainless steel housing, Steel housing

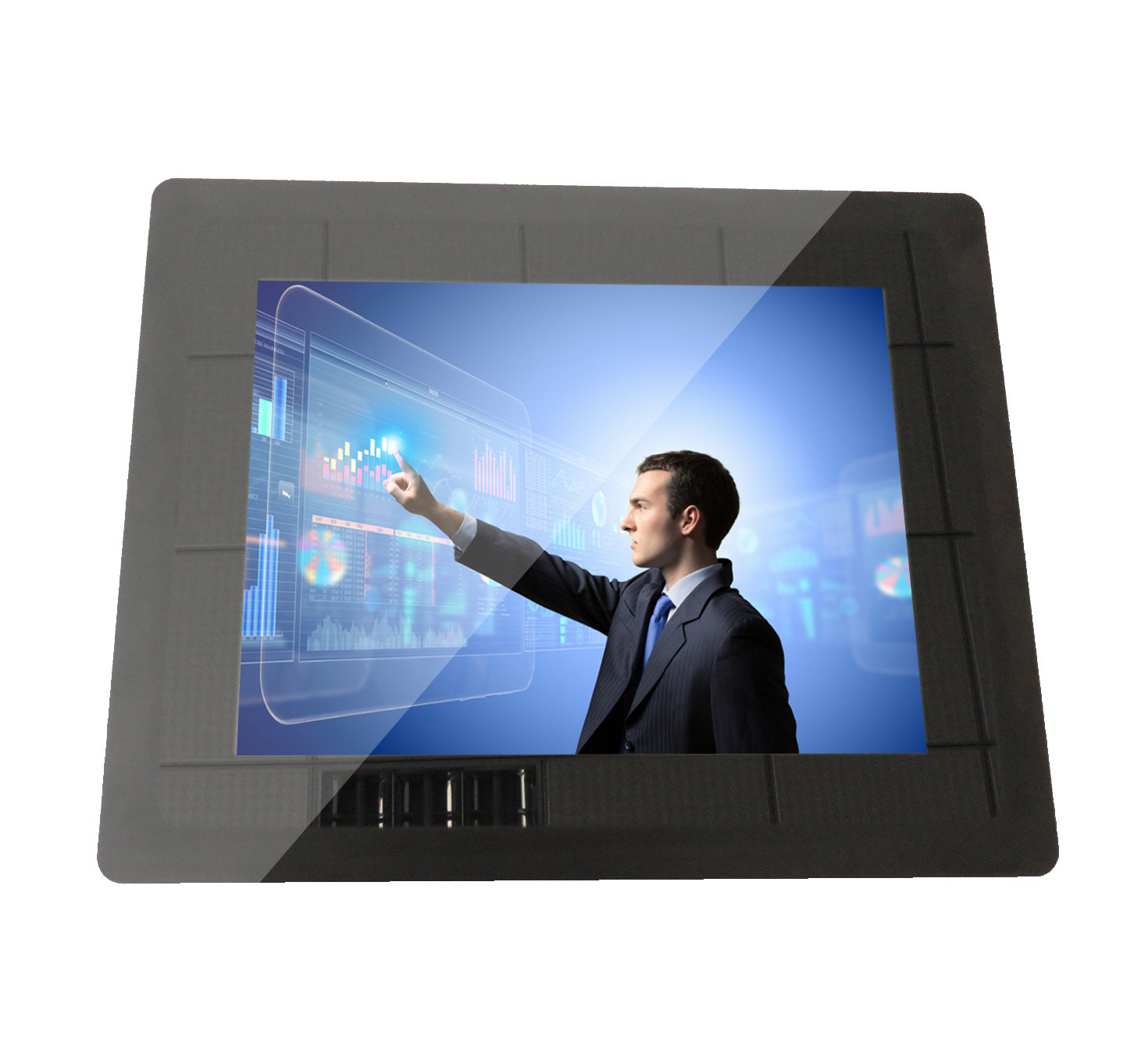

    Product Display:


    Full IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With CameraFull IP67 Rugged Panel PC PCAP Multi Touch Android PC RK3288 2G RAM 8G Flash With Camera
