    Industrial 7" Android Touch Panel PC Linux ARM Freescale Canbus GPIO DRAM 2GB Memory

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD07PPCT1VE1/ITD07PPCT5VE1
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 7-12 work days
    Price : TBA
    • Product Details
    • Company Profile

    Industrial 7" Android Touch Panel PC Linux ARM Freescale Canbus GPIO DRAM 2GB Memory

    industrial 7" Android touch panel PC Linux ARM freescale Canbus GPIO


    ITD 7” the in-vehicle touch panel computer equipped with a Freescale ARM Cortex-A9 i.MX 6DualLite processor, Android 5.1 OS, 2 GB memory, a 7” industrial grade TFT panel and resistive touch screen. Built-in LTE capabilities transform the terminal into a wireless network hub that supports Wi-Fi, Bluetooth, and GPS communication to enable location tracking and route optimization. The in-vehicle touch computer is highly resistant to impact and vibration without moving parts, come with screw-in M12 plugs (depending on the application) and are suitable for the expanded temperature range especially designed for driverless transport systems (DTS), agricultural and construction machines, and special-purpose vehicles.


    Specs:


    SPECIFICATION

    SystemCPUFreescale Cortex I.MX6 Quad Core A9
    MemoryDRAM 2GB
    StorageSandisk EMMC 4G
    OSAndroid, Linux
    Ethernet2 x 10/100/1000Mbps
    Input / OutputBus Expansion1 x Mini PCIe (Supports 3G/4G)
    USB Ports2 x USB
    HDMI Port1 X HDMI
    VGA Port1 x VGA
    M12 Power1 x M12
    TF Slot1 x TF Slot
    PanelCell Type/Glass SurfaceTFT LCD
    Aspect Ratio/Size7”
    Active Area/Pixel Pitch153(H) x 90 (V)/ 0.15(H)mm
    Native Resolution/Colors1024 x 600 /16.7M
    Brightness/Contrast400nits/800:1
    Viewing Angle(Typical)80/80/80/80
    Light SourceLED Backlight with 50000Hours’Lifetime
    PowerInput VoltageExternal power supply with universal / Auto-Sensing, DC 8-36V
    Operation/Power Saving12W
    Environment ConsiderationsOperating Temperature-20~70℃
    Storage Temperature-30~80℃
    Relative Humidity10%~90% (non condensing)
    Anti-Vibration5Hz-500Hz / 1Grms/3 Axis
    Anti-Shock15G, 15ms duration
    Touch PanelResistive Touch Panel
    Order Information7” Vehicle panel PC with Resistive touch/ITD07PPCT1VE1
    7” Vehicle panel PC with PCAP touch/ ITD07PPCT5VE1
    7” Vehicle panel PC with Tempered glass/ ITD07PPCG1VE1

    OPTIONALS

    •WIFI, Bluetooth, GPS

    •SIM Card, Can Bus x 2, SATA

    •RS232, RS485, RS422 Ports

    •Touch optional: Resistive, PCAP

    •High brightness, sunlight readable

    •DC60-150V, AC90-264V

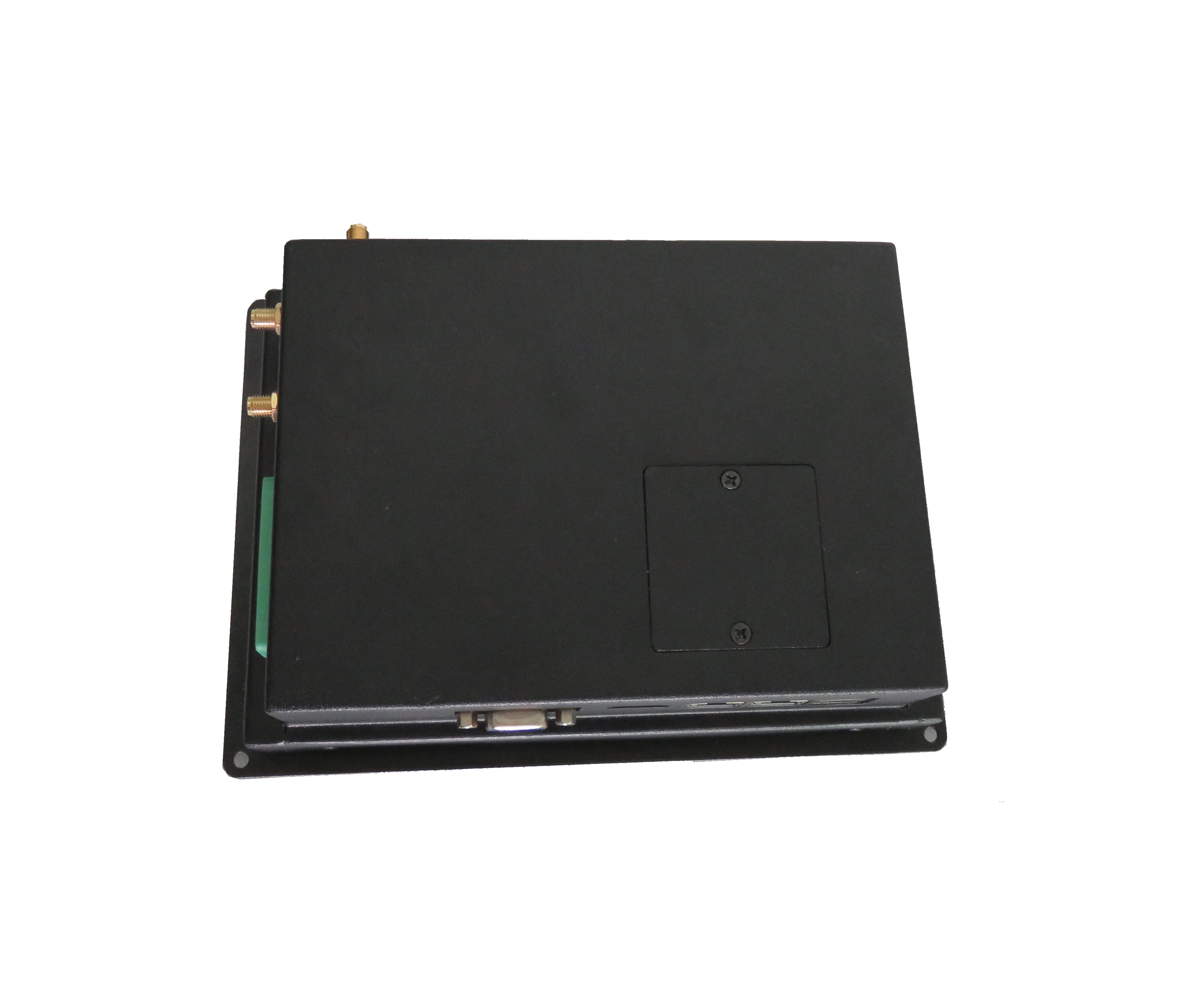

    Image:


    7 inch panel PC with freescale canbus


    7 inch Android panel pc


    Android arm panel PC with GPIO
