    Vehicle Industrial All In One PC Touch Screen With Freescale Canbus GPIO 3G 4G GSM

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD07PPCT1VE1/ITD07PPCT5VE1
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 7-12 work days
    Price : TBA
    • Product Details
    • Company Profile

    Vehicle Industrial All In One PC Touch Screen With Freescale Canbus GPIO 3G 4G GSM

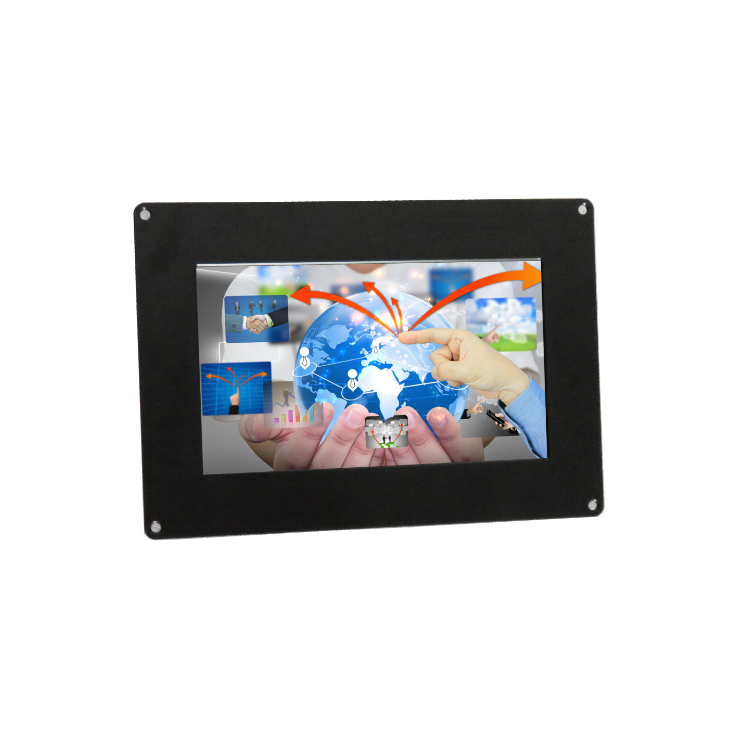

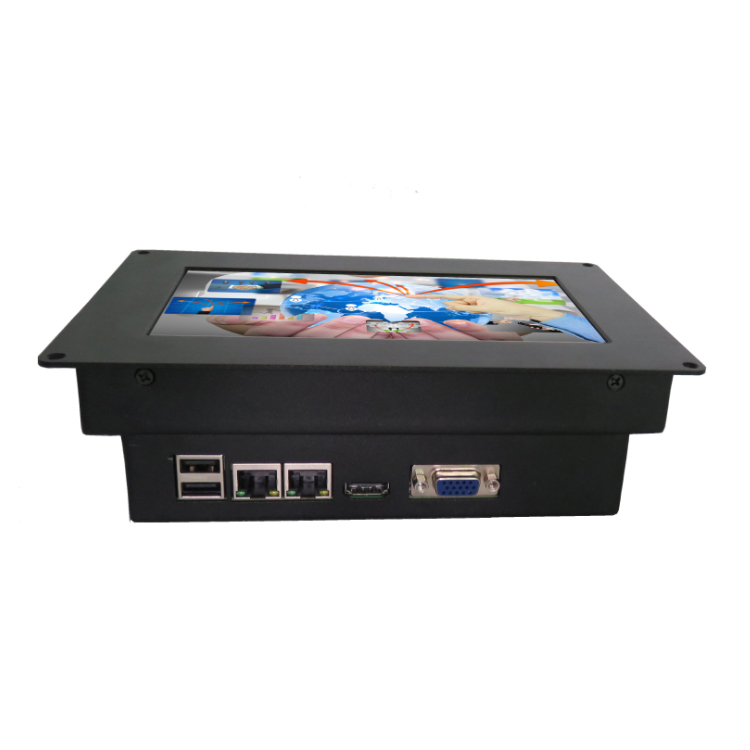

    7" in-vehicle touch panel PC with Freescale Canbus GPIO 3G 4G GSM high bright resistive touch pcap touch


    Specs:


    SPECIFICATION

    SystemCPUFreescale Cortex I.MX6 Quad Core A9
    MemoryDRAM 2GB
    StorageSandisk EMMC 4G
    OSAndroid, Linux
    Ethernet2 x 10/100/1000Mbps
    Input / OutputBus Expansion1 x Mini PCIe (Supports 3G/4G)
    USB Ports2 x USB
    HDMI Port1 X HDMI
    VGA Port1 x VGA
    M12 Power1 x M12
    TF Slot1 x TF Slot
    PanelCell Type/Glass SurfaceTFT LCD
    Aspect Ratio/Size7”
    Active Area/Pixel Pitch153(H) x 90 (V)/ 0.15(H)mm
    Native Resolution/Colors1024 x 600 /16.7M
    Brightness/Contrast400nits/800:1
    Viewing Angle(Typical)80/80/80/80
    Light SourceLED Backlight with 50000Hours’Lifetime
    PowerInput VoltageExternal power supply with universal / Auto-Sensing, DC 8-36V
    Operation/Power Saving12W
    Environment ConsiderationsOperating Temperature-20~70℃
    Storage Temperature-30~80℃
    Relative Humidity10%~90% (non condensing)
    Anti-Vibration5Hz-500Hz / 1Grms/3 Axis
    Anti-Shock15G, 15ms duration
    Touch PanelResistive Touch Panel
    Order Information7” Vehicle panel PC with Resistive touch/ITD07PPCT1VE1
    7” Vehicle panel PC with PCAP touch/ ITD07PPCT5VE1
    7” Vehicle panel PC with Tempered glass/ ITD07PPCG1VE1

    Image:


    GPIO panel PC


    FEATURES


    ▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS

    ▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity

    ▪ Energy-efficient and fan-less HMI Systems

    ▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel

    ▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support
