    17 Inch Panel Mount Touch Screen PC LCD Monitor Anti Shock Control Knob On Front Panel

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD17PMT5MR1
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 10-15 work days
    Price : TBA
    • Product Details
    • Company Profile

    17 Inch Panel Mount Touch Screen PC LCD Monitor Anti Shock Control Knob On Front Panel

    17 inch touch screen LCD monitor anti-shock&vibration brightness control knob on front panel for marine


    ITD rugged industrial Flush/Panel Mount displays are fully-integrated in an industrial-grade IP65/ NEMA 4-4x ingress rating for front panel and HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. The flush mount display can be directly connected to industrial processing machines, control systems, automation systems, and especially marine application.


    SPECIFICATION

    ModelITD10PMT5MR1ITD12PMT5MR1ITD15PMT5MR1ITD17PMT5MR1ITD19PMT5MR1ITD21PMT5MR1ITD24PMT5MR1
    Size10.4”12.1”15”17”19"21.5"24"
    Active Area(mm)211.2 x158.4246.0x184.5304.12x228.09337.92x270.33376.32x301.06476.64x268.11531.36x298.89
    Contrast Ratio500:1500:1700:11000:11000:11000:11000:1
    Resolution800 x 600800 x 6001024 x 7681280 x 10241280 x 10241920 x 10801920 x 1080
    Brightness300nits300nits250nits250nits250nits250nits300nits
    Viewing Angles70/70/60/7070/70/60/6080/80/60/7085/85/80/8085/85/80/8085/85/80/80 or 89/89/89/8985/85/80/80 or 89/89/89/89
    BacklightLEDLEDLEDLEDLEDLEDLED

    SPECIFICATION

    Input Signal ConnectorsVGA, DVI, HDMI
    Power InputDC 9~36V Power Supply
    Operating Temperature-10~60℃
    Storage Temperature-20~70℃
    Operating Humidity5%~95% (non condensing)
    Anti-Vibration5Hz-500Hz / 1Grms/3 Axis
    Anti-Shock15G, 15ms duration
    User ControlPower on/off via Front Button; Power Mode Status LED; On Screen Display Control
    Order InformationMarine LCD Monitor with Resistive Touch/ITD**PMT1MR1
    Marine LCD Monitor with PCAP Touch/ITD**PMT5MR1
    Marine LCD Monitor with Tempered Glass/ITD**PMG1MR1
    Marine LCD Monitor with AR Tempered Glass/ITD**PMG2MR1

    FEATURES

    • Dimming control backlight brightness from nearly 0% to 100%

    • 9 to 36V DC wide voltage power input acceptable

    • Ease of use front panel OSD control

    • Enhanced shock and vibration resistance

    • Ruggedized levels of NEMA 4, IP65 for front panel

    • Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    ▪ CE, FCC, RoHS Compliance


    OPTIONALS

    • Resistive Touch Screen, PCAP Touch Screen, AR Protective Glass, Optical Bonding
    • VESA Mounting Brackets or Desktop Stand
    • S-Video, Composit inputs
    • RS232 Remote Control
    • Dimming Knob on Front

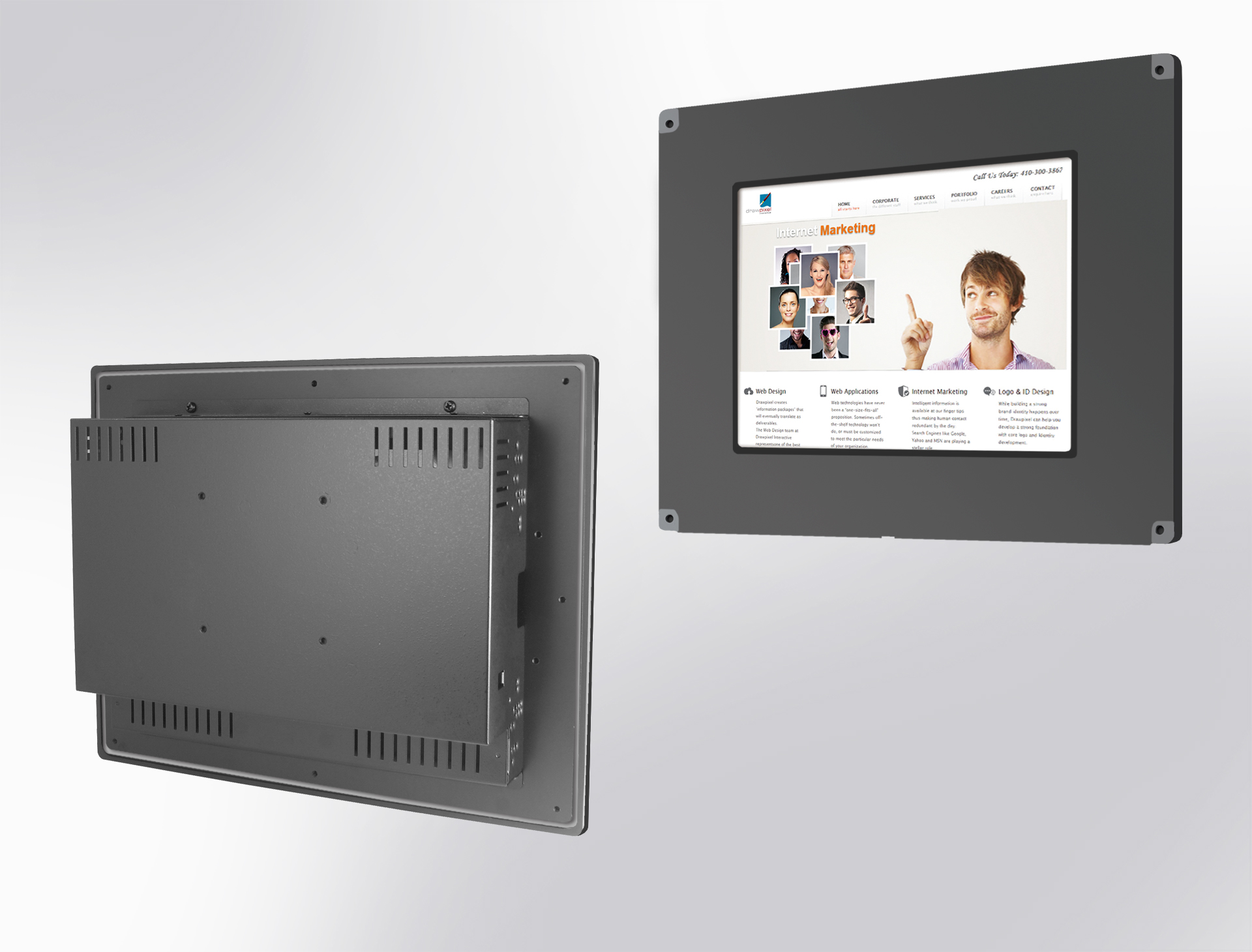

    Product Display:
