    Marine Wall Mount Touch Screen PC 1000 Nits Brightness Projected Capacitive Touch

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCT5HBMJ1
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 10-15 work days
    Price : TBA
    • Product Details
    • Company Profile

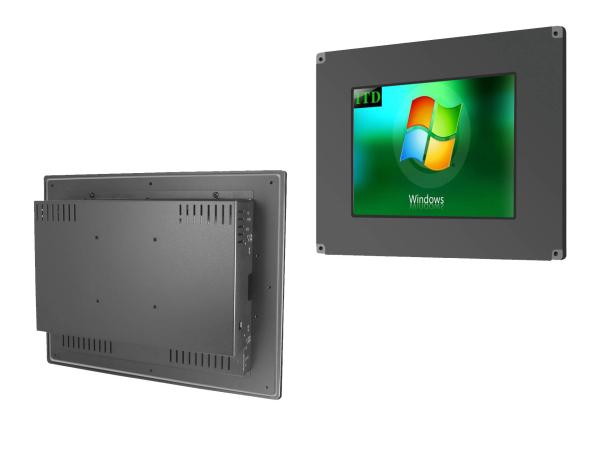

    Marine Wall Mount Touch Screen PC 1000 Nits Brightness Projected Capacitive Touch

    15 inch marine panel PC 1000nits brightness control from 0 to 100% anti-shock&vibration


    The ITD industrial touch screen panel/flush mounted panel PC coming with high brightness industrial TFT panels is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0GHz with Projected Capacitive Touch (PCT or PCAP) Technology in an industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch flush mounted panel PC is mainly designed for marine application.

    Specifications:

    ModelITD10PPCT5HBMJ1ITD12PPCT5HBMJ1ITD15PPCT5HBMJ1ITD17PPCT5HBMJ1ITD19PPCT5HBMJ1ITD21PPCT5HBMJ1ITD24PPCT5HBMJ1
    Size10.4”12.1”15”17”19"21.5"24"
    Active Area(mm)211.2 x158.4246.0x184.5304.12x228.09337.92x270.33376.32x301.06476.64x268.11531.36x298.89
    Contrast Ratio500:1500:1700:11000:11000:11000:11000:1
    Resolution800 x 600800 x 6001024 x 7681280 x 10241280 x 10241920 x 10801920 x 1080
    Brightness1000nits1000nits1000nits1000nits1000nits1000nits1000nits
    Viewing Angles70/70/60/7070/70/60/6080/80/60/7085/85/80/8085/85/80/8085/85/80/80 or 89/89/89/8985/85/80/80 or 89/89/89/89
    BacklightLEDLEDLEDLEDLEDLEDLED



    SPECIFICATION

    SystemCPUIntel® Celeron J1900 2.0GHz Processor
    BIOSAward BIOS 4/8Mbit SPI Flash ROM
    ChipsetIntel Valley View SSA‐Cunit
    Memory1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage64GB SSD or 500GB HDD Max. 512GB SSD or 1TB HDD
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1 x HDMI Port
    Power Port9~36V DC Input
    Audio CardRealtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
    Environment ConsiderationsWIFIBuilt-in, 802.11a/b/g/h (optional)
    Touch ScreenTypeProjected Capacitive Touch Screen with 10 independent touch points
    Response Time≤5ms
    InterfaceUSB or COM, default to USB
    Transparency≥85%
    Lifetime≥50,000,000 times/click
    OS SupportWindows CE/XP/7/8, Linux, Mac, Android
    Operation/Power SavingTBA
    Operating Temperature-10~60℃
    Storage Temperature-20~70℃
    Operating Humidity5%~95% (non condensing)
    Anti-Vibration5Hz-500Hz / 1Grms/3 Axis
    Anti-Shock15G, 11ms duration
    Mechanical MountingPanel/Flush Mounting with IP65, VESA Brackets Mounting
    OS SupportWindows7/8/10, Linux
    Order InformationMarine Panel PC 1000nits with Resistive Touch/ITD**PPCT1HBMJ1
    Marine Panel PC 1000nits with PCAP Touch/ITD**PPCT5HBMJ1
    Marine Panel PC 1000nits with Tempered Glass/ITD**PPCG1HBMJ1
    Marine Panel PC 1000nits with AR Tempered Glass/ITD**PPCG2HBMJ1
