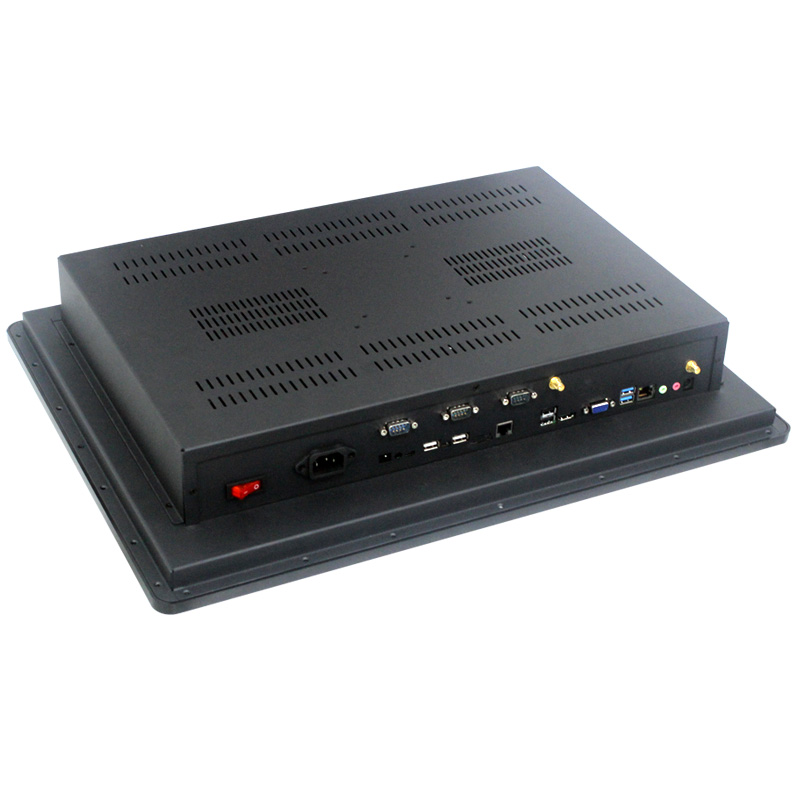

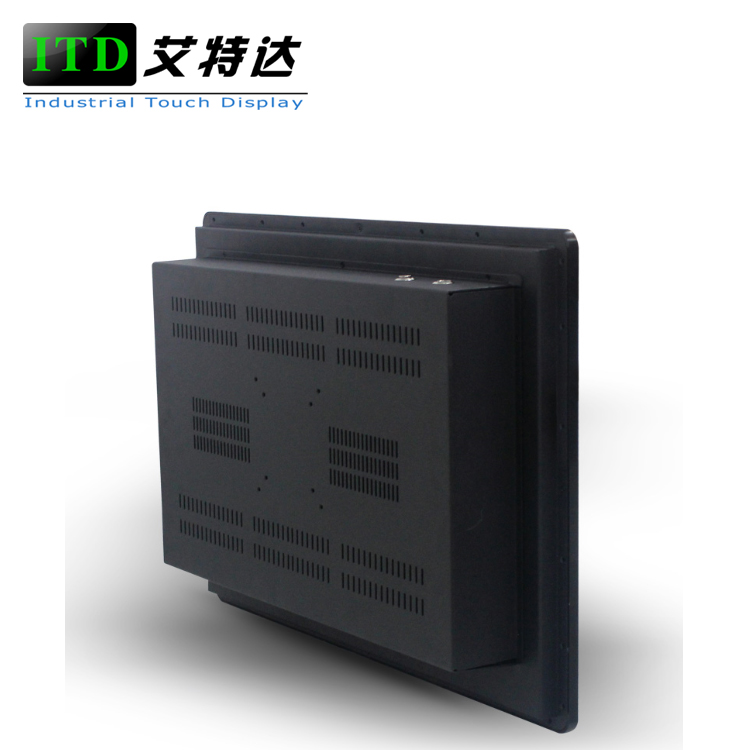

    Fanless All In One Industrie Pc Touch Screen With RFID And Finger Printer

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD17PPCT5XI*
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 7-12 work days
    Price : TBA
    • Product Details
    • Company Profile

    Fanless All In One Industrie Pc Touch Screen With RFID And Finger Printer

    front panel pc industrual fanless all in one pc touch screen with RFID and finger printer


    The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen or resistive touch screen that combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7 with Projected Capacitive Touch (PCT or PCAP) Technology or single resistive touch in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.


    PanelCell Type/Glass SurfaceTFT
    Size17”
    Aspect Ratio4:3
    Active Area337.92(H) x 270.33(V)mm
    Pixel Pitch0.264 × 0.264mm
    Native Resolution1280 x 1024
    Colors16.7M
    Brightness250cd/㎡
    Contrast1000:1
    Response Time25ms
    Viewing Angle(Typical)170/160
    Light SourceLED Backlight with 50000Hours’Lifetime

    SPECIFICATION

    SystemCPUIntel® Core i3/i5/i7 Processor
    BIOSAMI
    ChipsetTBA
    Memory2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.16GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage32GB SSD or 320GB HDD
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1x HDMI Port
    Audio Card

    with Realtek ALC662

    Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

    PowerInput VoltageDC 12V
    Operation/Power Saving77W
    Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃ Optional)
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information17”Flat Bezel Panel PC with PCAP Touch i3/i5/i7 /ITD17PPCT5XI*
    17”Flat Bezel Panel PC with Resistive Touch i3/i5/i7 /ITD17PPCT1XI*
    17” Flat Bezel Panel PC with Tempered Glass i3/i5/i7 /ITD17PPCG1XI*

    FEATURES

    ▪ Easy-to-clean, true flat front surface without bezel

    ▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

    ▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

    ▪ Eliminates dust and debris build-up at the edge and corners of the display

    ▪ Provides improved power efficiency and reduced consumption

    ▪ Responds to a light touch to activate response

    ▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    ▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    ▪ CE, FCC, RoHS Compliance
