    IP65 Embedded Touch Screen Rugged Panel Computer For Kitchen Easy To Clean

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCT5XJ2
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 7-12 work days
    Price : TBA
    • Product Details
    • Company Profile

    IP65 Embedded Touch Screen Rugged Panel Computer For Kitchen Easy To Clean

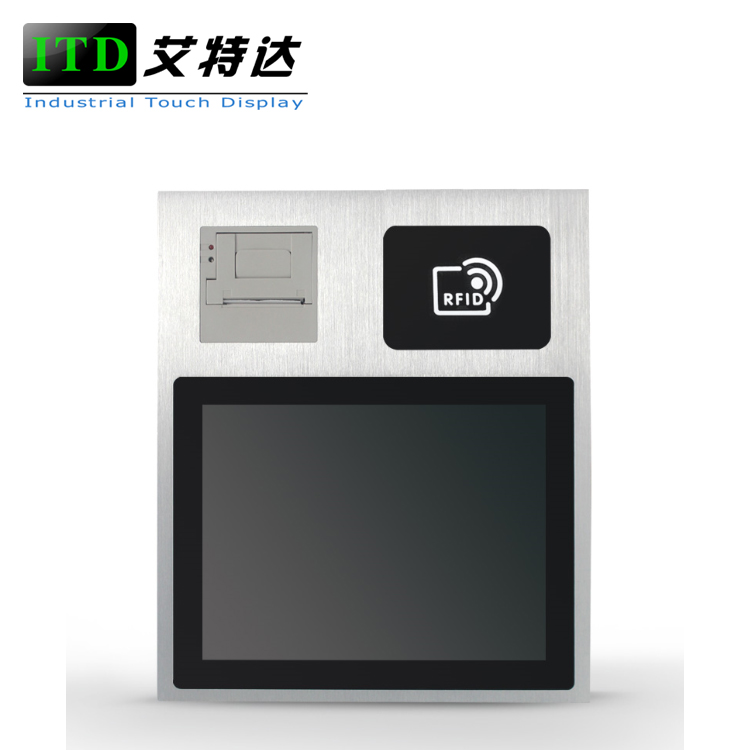

    Rugged IP65 panel PC embedded touch screen computer with smart card reader and printer for kitchen


    The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.


    FEATURES

    ▪ Easy-to-clean, true flat front surface without bezel

    ▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

    ▪ 10 independent touch points

    ▪ Eliminates dust and debris build-up at the edge and corners of the display

    ▪ Provides improved power efficiency and reduced consumption

    ▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    ▪ Aluminum front bezel (3mm/10mm optional) and steel chassis construction designed for harsh and industrial environments

    ▪ CE, FCC, RoHS Compliance


    OPTIONAL

    • SDD 64GB,128GB up to 521GB

    • HDD 500GB up to 1TB

    • High brightness, sunlight readable

    • Resistive touch screen, tempered glass

    • Customization for other inches

    • Camera, speakers, RFID reader, GPIO, LPT, M12 power connector

    • Black, silver, desktop stand


    ModelITD08PPCT5XJ1ITD101PPCT5XJ1ITD10PPCT5XJ1ITD12PPCT5XJ1
    Size8”(4:3)10.1”(16:9)10.4” (4:3)12.1” (4:3)
    Active Area162.0(W) x 121.5(H)227.0(W) x 131.0(H)211.2(W) x 158.4(H)246.0(H) x 184.5(V)
    Contrast Ratio500:1500:1500:1500:1
    Resolution800 x 6001366 x 768800 x 600 or 1024 x 768800 x 600 or 1024 x 768
    Brightness250nits300nits300nits300nits
    Viewing Angles70/70/50/7080/80/80/8070/70/60/7070/70/60/60
    BacklightLEDLEDLEDLED
    ModelITD12PPCT5XJ1WITD15PPCT5XJ1ITD156PPCT5XJ1ITD17PPCT5XJ1
    Size12.1” (16:10)15” (4:3)15.6” (16:9)17” (5:4)
    Active Area261.12(H) x 163.2(V)304.12(H)x 228.09(V)344.23(H)x 193.53(V)337.92(H) x 270.33(V)
    Contrast Ratio700:1700:1500:11000:1
    Resolution1280 x 8001024 x 7681366 x 768 or 1920 x 10801280 x 1024
    Brightness300nits250nits250nits250nits
    Viewing Angles80/80/80/6080/80/60/7080/80/80/8085/85/80/80
    BacklightLEDLEDLEDLED
    ModelITD173PPCT5XJ1ITD19PPCT5XJ1ITD19PPCT5XJ1WITD21PPCT5XJ1
    Size17.3”(16:9)19” (5:4)19” (16:10)21.5” (16:9)
    Active Area381.88(H) x 214.81(V)376.32(H) x 301.06(V)408.32(H) x 255.2(V)476.64(H)x248.25(V)
    Contrast Ratio700:11000:11000:11000:1
    Resolution1920 x 10801280 x 10241440 x 9001920 x 1080
    Brightness300nits250nits250nits250nits
    Viewing Angles80/80/80/8085/85/80/8085/85/80/8085/85/80/80
    BacklightLEDLEDLEDLED

    SPECIFICATION

    SystemCPUIntel® Bay Trail Celeron Quad Core J1900 2.0GHz Processor
    BIOSAward BIOS 4/8Mbit SPI Flash ROM
    ChipsetIntel® Bay Trail SOC CPU Integrated
    Memory1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage32GB SSD or 320GB HDD
    LAN1 x 10/100/1000Mbps Ethernet
    I/OSerial Ports1xCOM(10.1”,10.4”); 2xCOM(Default to RS232, RS422/485 optional)
    USB Ports2XUSB 2.0(10.1”,10.4”); 2XUSB2.0, 2XUSB3.0
    VGA Port1 x VGA
    HDMI Port1 x HDMI Port
    Power Port1 x 12V DC Jack input(ATX is optional)
    Audio CardRealtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
    WIFIBuilt-in, 802.11a/b/g/h (optional)
    Touch ScreenTypeProjected Capacitive Touch Screen with 10 independent touch points (Default to USB Port, RS232 Port Optional)
    Response Time≤5ms
    Transparency≥85%
    Lifetime≥50,000,000 times/click
    OS SupportWindows CE/XP/7/8/10, Linux, Mac, Android
    Operating Temperature-10~60℃ (-20~70℃ Optional)
    Storage Temperature-20~70℃
    Operation Humidity10%~90%(No Condensation)
    Mounting MethodVESA, embedded/panel mounting with clamps, desktop stand
    Order InformationFlat Bezel PCAP Panel Mounted Panel PC/ITD**PPCT5XJ1
    Flat Bezel Resistive Touch Panel Mounted Panel PC/ITD**PPCT1XJ1
    Flat Bezel Tempered Glass Panel Mounted Panel PC/ITD**PPCG1XJ1
