    Flush / Rear Mount Industrial Touch Screen Monitor HMI Interface 17"

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD17OFT5Y1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

    Flush / Rear Mount Industrial Touch Screen Monitor HMI Interface 17"

    17" flush mount rear mount industrial touch screen monitor HMI interface with pcap multi touch vandal proof IP65 front


    ITD PCAP rear/flush mount multi-touch screen monitor series is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.


    ModelITD15OFT5Y1ITD156OFT5Y1ITD17OFT5Y1
    Size15”15.6”17”
    Active Area304.12(H)x 228.09(V)344.232(H)x193.536(V)337.92(H) x 270.33(V)
    Pixel Pitch0.297mm0.252mn0.264mm
    Contrast Ratio700:1500:11000:1
    Resolution1024 x 7681366 x 768 or 1920 x 10801280 x 1024
    Brightness250nits300nits250nits
    Viewing Angles80/80/60/7080/80/80/8085/85/80/80
    Response Time35ms6ms5ms
    Colors16.2M16.2M16.7M
    BacklightLEDLEDLED

    SPECIFICATION
    InputsVGA, DVI, HDMI
    Convenient FeaturesBacklight Adjustment, Plug & Play, OSD Multi-Languages
    Power SourceExternal Power Supply with Universal/Auto-Sensing, DC 12V
    Power ConsumptionOperation/Power SavingTBA
    Touch PanelProjected Capacitive Touch Panel with 10 Multi Touch Points
    USB/RS232 port
    7H Surface Hardness, Vandal Proof
    Plug and Play in Windows XP/7/8/10; Linux, Mac, Android with driver
    Key ControlPower on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left)
    Operating Temperature-1 0℃-60℃
    Storage Temperature-20℃-70℃
    Relatively Operating Humidity10% - 90%
    AccessoriesPower Supply, VGA/DVI/HDMI cable, USB Cable, Mounting Brackets(optional)

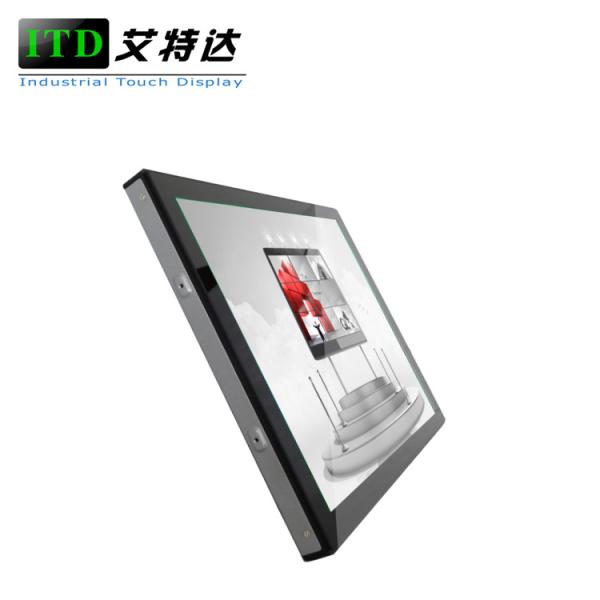

    Product Image of industrial touch screen monitor HMI:
