    86 Inch 4K Panel Mount Touch Screen Monitor True Flat Surface With OPS Pluggable PC

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD86OFT5P1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union
    Supply Ability : 5000pcs/Month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    86 Inch 4K Panel Mount Touch Screen Monitor True Flat Surface With OPS Pluggable PC

    86 inch 4K Large Touch Screen Monitor True Flat Surface with OPS Pluggable PC


    ITD 86” PCAP multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.


    FEATURES

    •High contrast color TFT LCD display supports resolution up to 3840 x2160

    •Supports DDC 1/2B for Plug & Play compatibility

    •Advanced OSD control for picture quality adjustment

    •Aluminum frame and rugged steel back chassis, true flat surface

    •10 simultaneous multi touch points PCT/PCAP touch Sensor

    •Easy to clean without bezel

    •CE, FCC, RoHS Compliance


    OPTIONAL

    •ARM based PC, x86 OPS PC built-in

    •VESA brackets


    SPECIFICATION

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio86”/16:9
    Active Area/Pixel Pitch1895.04(H) x 1065.96(V)/0.240mm
    Native Resolution/Colors3840x 2160/16.7M
    Brightness/Contrast410nits/1200:1
    Response Time8ms
    Viewing Angle(Typical)89/89/89/89
    Light SourceLED Backlight with 50000Hours’Lifetime
    Input SignalsVGA , HDMI, DVI
    Convenient FeaturesBacklight adjustment, Plug & Play, OSD Multi-Languages
    Power SourceInternal power supply with universal/Auto-Sensing, AC100~240V
    Power ConsumptionOperation/Power SavingBelow 408W
    Touch PanelProjected Capacitive Touch Panel with 10 Multi Touch Points
    USB
    Plug and Play in Windows XP/7/8/10, Linux, Mac, Android with driver
    Key ControlPower on/off with LED, Menu, Select, Adjustment(Right/Left)
    Order Information86” 4K Flat Panel Monitor with tempered glass/ITD86OFG1P1
    86” 4K Flat Panel Monitor with PCAP touch/ITD86OFT5P1

    Touch Screen Specification

    TypeProjected Capacitive Touch Screen
    Resolution4096×4096
    Light Transmission85%±5%
    Touch Life Cycle50 millions times
    Touch Response time5ms
    Touch System InterfaceUSB A type
    Operating Temperature-10~60°C
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Android

    Internal Power Supply

    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    Environment

    Operating Temp.-10~50°C
    Storage Temp.-10~60°C
    Operating RH:20%~80%
    Storage RH:10%~90%

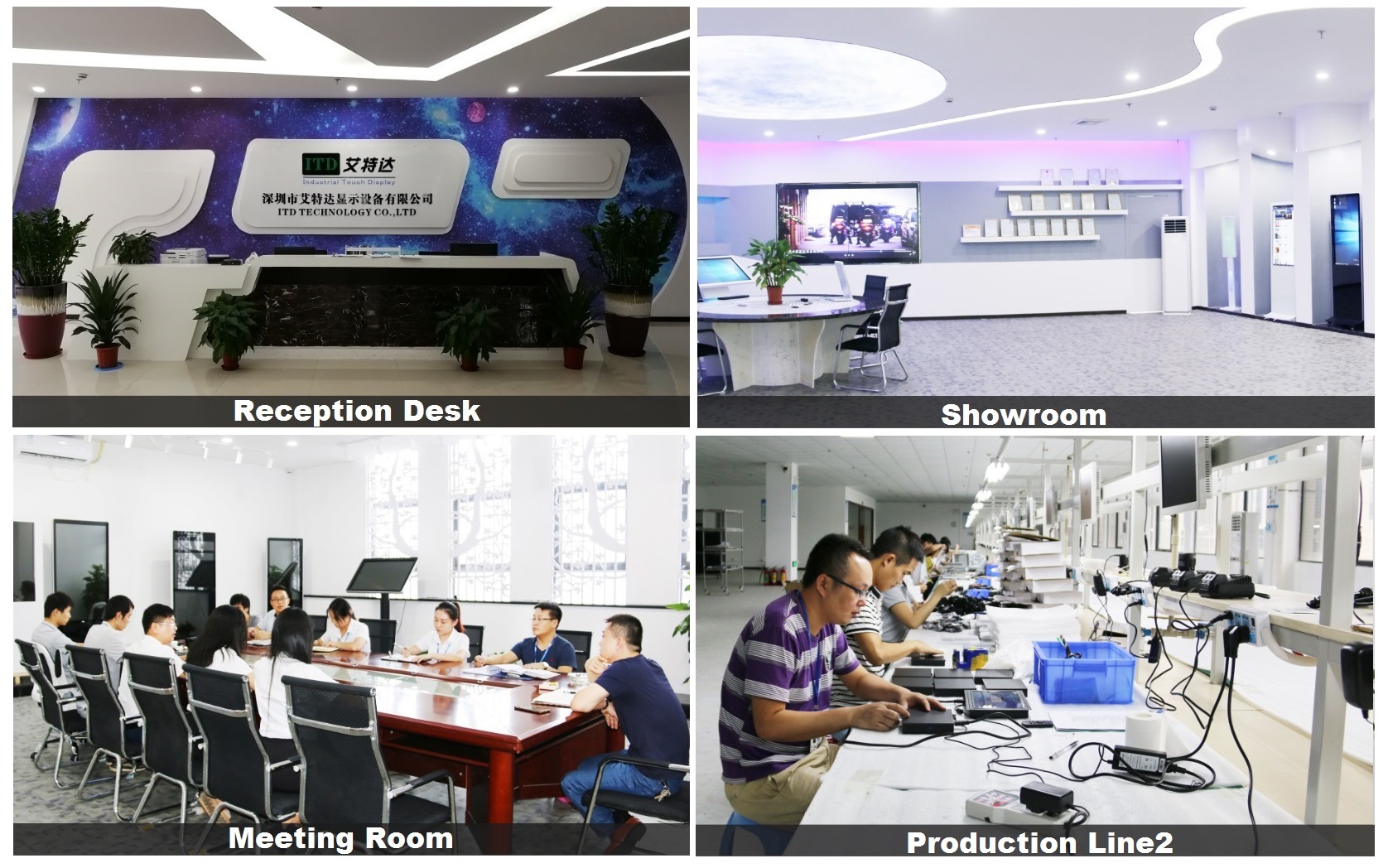

    OUR FACTORY
