    Computer Windows Linux Rugged Panel PC IP65 IP67 Waterproof Touch Screen High Brightness

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD**PPCT1IPSJ1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

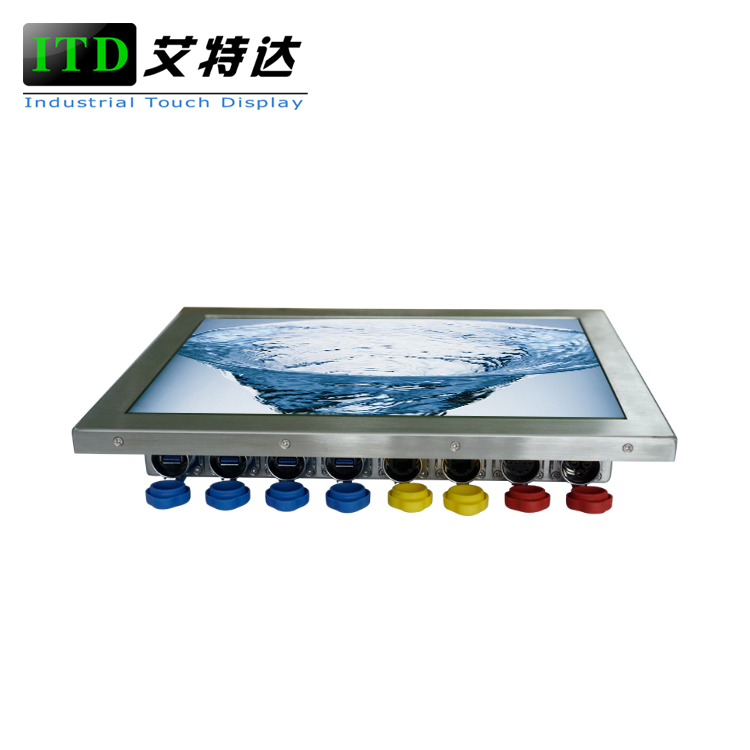

    Computer Windows Linux Rugged Panel PC IP65 IP67 Waterproof Touch Screen High Brightness

    IP65 IP67 rugged insuatrial waterproof touch screen panel PC computer Windows Linux


    ITD line of Full IP65 Touchscreen Panel PCs is built to endure harsh and corrosive environments, enclosed in an all stainless steel/aluminum alloy housing with all directions designed to be water and dust proof making these computers ideal for wash down applications. Resistive touch or projected capacitive touch integrated that provides a user friendly interface which is encapsulated in a compact rugged housing for application with space limitations. It is powered by an Atom/Celeron fan less processor that integrates a network-ready computer board with sealed USB and RS-232 interface ports.maceutical applications in harsh environment.


    FEATURES

    ▪ Brushed stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

    ▪ Full IP65 and sealed with anti-corrosive rubber to providing 360 degree protection

    ▪ Rugged Stainless steel enclosure design with high EMC and IP65/IP66 NEMA 4/4X protection▪ Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

    ▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

    ▪ Provides improved power efficiency and reduced consumption

    ▪ CE, FCC, RoHS Compliance


    OPTIONALS

    •SDD 64GB,128GB up to 526GB

    •HDD 500GB up to 1TB

    •High brightness, sunlight readable

    •Resistive touch screen, PCAP touch screen

    •Customization for other inches

    •Aluminum alloy housing, Steel housing

    •Full IP67


    ModelITD10PPCG1IPSJ1ITD12PPCG1IPSJ1ITD15PPCG1IPSJ1ITD17PPCG1IPSJ1ITD19PPCG1IPSJ1ITD21PPCG1IPSJ1
    Size10.4” (4:3)12.1”(4:3)15” (4:3)17” (4:3)19” (4:3)21.5” (16:9)
    Active Area211.2(W) x 158.4(H)246.0(H) x 184.5(V)211.2(W) x 158.4(H)337.92(H) x 270.33(V)376.32(H) x 301.06(V)476.64(H)x248.25(V)
    Contrast Ratio500:1500:1700:11000:11000:11000:1
    Resolution800x600 or 1024x768800x600 or 1024x7681024x 7681280 x 10241280 x 10241920 x 1080
    Brightness300nits300nits300nits250nits250nits250nits
    Viewing Angles70/70/60/7070/70/60/6080/80/60/8085/85/80/8085/85/80/8085/85/80/80
    BacklightLEDLEDLEDLEDLEDLED

    SPECIFICATION

    SystemCPUIntel® Baytrail Celeron Quad Core J1900 2.0GHz Processor
    BIOSAward BIOS 4/8Mbit SPI Flash ROM
    ChipsetIntel® Baytrail SOC CPU Integrated
    Memory1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage64GB SSD or 500GB HDD
    I/OSerial Ports1x COM (Optional)
    USB Ports1 x USB 2.0(Waterproof Connector and Cable)
    Power Port1 x 12V DC Jack(Waterproof Connector and Cable)
    LAN1 x 10/100/1000Mbps Ethernet(Waterproof Connector and Cable)
    WIFIBuilt-in, 802.11a/b/g/h (optional)
    Touch ScreenTypeProjected Capacitive Touch Screen with 10 independent touch points
    Response Time≤5ms
    InterfaceUSB or COM, default to USB
    Transparency≥85%
    Lifetime≥50,000,000 times/click
    OS SupportWindows CE/XP/7/8/10, Linux, Mac, Android
    GeneralPower InputDC 12V
    Power SwitchOptional
    Mounting Option75 x 75/100 x 100mm VESA Mount
    Operation/Power SavingTBA
    Operating Temperature-10~60℃
    Storage Temperature-20~70℃
    Operation Humidity10%~90%(No Condensation)
    OS SupportWindows 7/ Windows XP/ Windows 8/ Linux
    Mounting MethodVESA, embedded/panel mounting with clamps, desktop stand
    Order InformationStainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ1
    Stainless Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ1
    Stainless Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ1
    Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ2
    Stainless Steel Full IP67 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ2
    Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ2
    Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPAJ1
    Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPAJ1
    Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPAJ1
    Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPXJ1
    Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPXJ1
    Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPXJ1

    Applications for Rugged Panel PCs

    -Food processing plant automation control

    -Kitchen application

    -Chemical plant or laboratory

    -Liquor Factory

    -Clinical area / pharmaceutical / medical

    -Operating and monitoring in Oil, Gas & Energy industry

    -Industrial automation control in slaughtering house

    -Railway/Transportation


    OUR FACTORY

    Tag: embedded touch panel PC, panel pc, IP65 panel PC, waterproof panel PC, IP67 panel PC, outdoor PC
