    FHD Wide Screen Capacitive PCAP Panel Mount Lcd Monitor Display 11.6 Inch Raspberry Pi

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD11OFT5K1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-7 Business Days
    • Product Details
    • Company Profile

    FHD Wide Screen Capacitive PCAP Panel Mount Lcd Monitor Display 11.6 Inch Raspberry Pi

    11.6 inch FHD Wide screen capacitive PCAP touch screen monitor display Raspberry Pi


    ITD 11.6" PCAP multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.


    FEATURES

    • High contrast color TFT LCD display supports resolution up to 1920 x1080
    • Ten independent touch points, plug and play
    • Eliminates dust and debris build-up at the edge and corners of the display
    • Provides improved power efficiency and reduced consumption
    • Responds to a light touch in activating response
    • Easy-to-clean surface without bezels
    • Long lasting product cycle for continuity thru all phases of project

    ModelITD11OFT5K1
    IPIP65(for front panel only)
    IKTBA
    Outline DimensionsTBA
    Weight(N.W/G.W)1.36Kg / 2.96Kg (Approx.)
    LCD Type11.6"Active matrix TFT-LCD
    Video InputVGA and DVI-I, HDMI, Audio
    Recommend Resolution1920×1200@60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External Brick
    Input (line) Voltage: 100-240 VAC, 50-60 Hz
    Output Voltage/Current: 12V at 3A Max.
    Mount Interface

    1)VESA 100mm

    2)Mounting Brackets optional

    Regular Warranty1 Year for TFT Panel and 2 Years for Others
    Agency ApprovalFCC,CE,RoHS Certified

    2. 2 LCD Specification

    Active Area(mm)256.32(W) x 144.18(H)
    Resolution1920×1080
    Dot Pitch(mm)0.1335×0.1335
    Nominal Input Voltage VDD+3.3V(Typ)
    Viewing angle (L/R/T/B)89°/89°/89°/89°
    Contrast800:1
    Luminance(cd/m2)400
    Response Time(Rising/Falling)10s
    Support Color16.7M
    Screen Scanning60Hz
    Backlight MTBF(hr)50000h

    2.3 Touch Screen Specification

    TypeProjected Capacitive Touch Screen
    Resolution4096×4096
    Light Transmission85%±5%
    Touch Life Cycle50 millions times
    Touch Response time5ms
    Touch System InterfaceUSB A type
    Power Consumption30W
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Android

    2.4 External AC Power Adapter

    Output12V DC/3A
    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    2.5 Environment

    Operating Temp.-10~60°C
    Storage Temp.-20~70°C
    Operating RH:20%~80%
    Storage RH:10%~90%

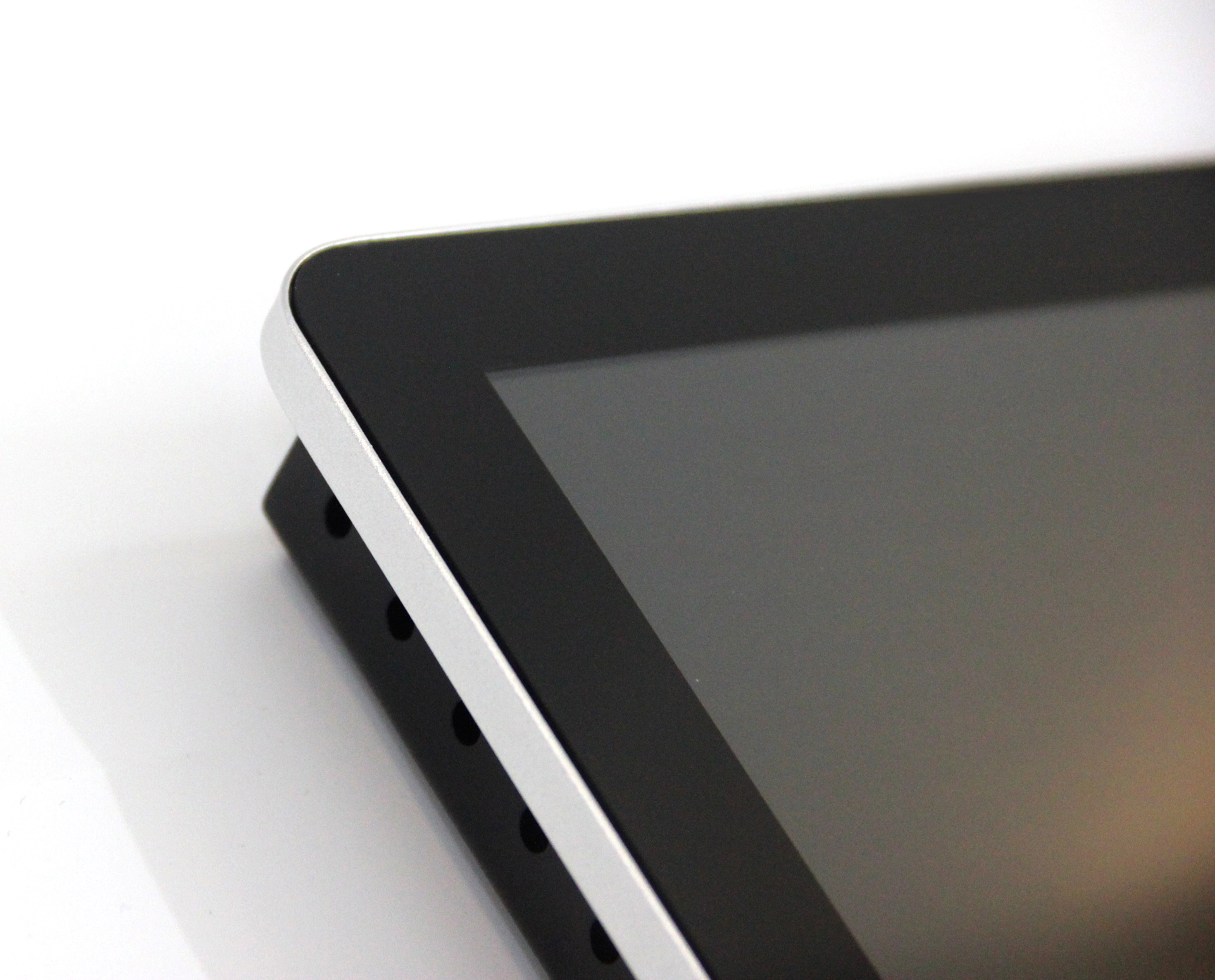

    Product Display
