    Embedded Touch Screen Panel PC 19" Recessed Mounting HMI Touch Panel

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD19PPCT5X**
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 20 Business Days
    • Product Details
    • Company Profile

    Embedded Touch Screen Panel PC 19" Recessed Mounting HMI Touch Panel

    Embedded Touch Screen Panel PC 19" Recessed Mounting HMI Touch Panel

    ITD 19” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.


    PanelCell Type/Glass SurfaceTFT
    Size19”
    Aspect Ratio4:3
    Active Area376.32(H) x 301.06(V)mm
    Pixel Pitch0.294 × 0.294mm
    Native Resolution1280 × 1024
    Colors16.7M
    Brightness250nits
    Contrast1000:1
    Response Time3.7ms
    Viewing Angle(Typical)85/85/80/80
    Light SourceLED Backlight with 50000Hours’Lifetime
    SystemCPUIntel® Core i3/i5/i7 Processor
    BIOSAMI
    ChipsetIntel SoC Chipset
    Memory2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Graphic ChipsetIntel HD Graphics (By CPU)
    Storage1 x SATA, 1 x mSATA, Default to 64GB SSD
    LAN1 x 10/100/1000Mbps Ethernet
    Input/OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA Output
    HDMI Port1x HDMI Output
    Audio Card

    with Realtek ALC662

    Line-Out /MIC IN

    PowerInput VoltageDC 12V
    Operation/Power Saving45W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%(Non Condensing)
    OS SupportWindows 7/ Windows XP/ Windows 8/ Linux/Windows 10
    Mounting MethodVESA, Side Mounting Brackets
    AccessoriesPower cable, Motherboard CD driver, Screws
    Order Information19” Zero-Bezel PCAP Touch Panel PC with Intel i3/ITD19PPCT5KI3
    19” Zero-Bezel PCAP Touch Panel PC with Intel i5/ITD19PPCT5KI5
    19” Zero-Bezel PCAP Touch Panel PC with Intel i7/ITD19PPCT5KI7
    19” Zero-Bezel Panel PC with Tempered Glass/ITD19PPCG1KI*

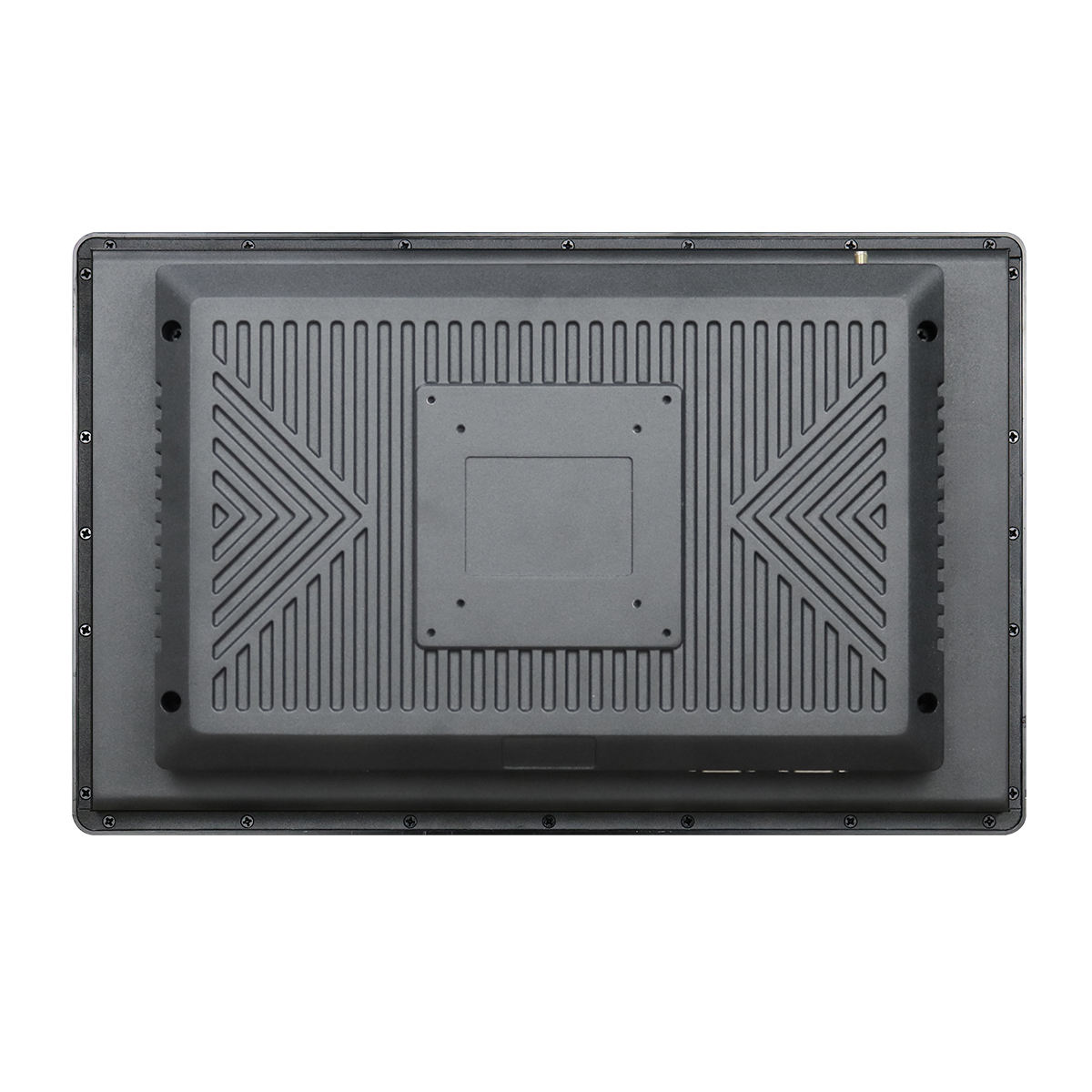

    Product display


    19inch panel PC
