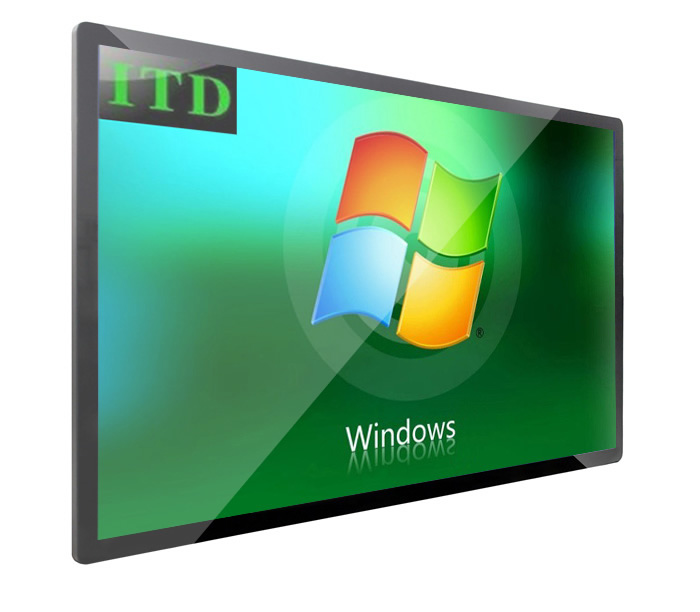

    1920 X 1080 LED Backlight Touch Panel PC With Intel I3 I5 I7

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD21PPCT5X**
    Certification : CE/ROHS/FCC
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000 unit per month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

    1920 X 1080 LED Backlight Touch Panel PC With Intel I3 I5 I7

    1920 x 1080 LED Backlight Touch Panel PC with Intel i3 i5 i7

    The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.

    Specs:


    PanelCell Type/Glass SurfaceTFT
    Size55”
    Aspect Ratio16:9
    Active Area1209.6(H) x 680.4(V)mm
    Pixel Pitch0.630 x 0.630mm
    Native Resolution1920 x 1080
    Colors16.7M
    Brightness400nits
    Contrast1200:1
    Response Time6ms
    Viewing Angle(Typical)178(H)/178(V)
    Light SourceLED Backlight with 50000Hours’Lifetime
    SystemCPUIntel® Core i3/i5/i7 Processor
    BIOSAMI
    ChipsetIntel SoC Chipset
    Memory2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Graphic ChipsetIntel HD Graphics (By CPU)
    Storage1 x SATA, 1 x mSATA, Default to 64GB SSD
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA Output
    HDMI Port1x HDMI Output
    Audio Card

    with Realtek ALC662

    Line-Out/MIC IN

    PowerInput VoltageAC100~240V
    Operation/Power Saving190W
    Environment ConsiderationsOperating Temperature-10~50℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%(Non Condensing)
    OS SupportWindows 7/ Windows XP/ Windows 8/ Linux/Windows 10
    Mounting MethodVESA, side mounting brackets optional
    AccessoriesPower cable, Motherboard CD driver, Screws
    Order Information55” Zero-Bezel PCAP Touch Panel PC with Intel i3/ITD55PPCT5KI3
    55” Zero-Bezel PCAP Touch Panel PC with Intel i5/ITD55PPCT5KI5
    55” Zero-Bezel PCAP Touch Panel PC with Intel i7/ITD55PPCT5KI7
    55” Zero-Bezel Panel PC with Tempered Glass/ITD55PPCG1KI*


    Image:

















    FEATURES

    ▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS
    ▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity
    ▪ Energy-efficient and fan-less HMI Systems
    ▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel
    ▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support
