    Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD21PPCT5X**
    Certification : CE/ROHS/FCC
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000 unit per month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

    Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted

    Windows-Based Touch Panel PC with 10-Touch Capabilities industrial PC panel mounted touch screen

    The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.

    Specs:

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio21.5”/16:9
    Active Area/ Pixel Pitch476.64(H) x268.11(V)mm/0.24825× 0.24825mm
    Native Resolution/ Colors1920 x 1080/16.7M
    Brightness/ Contrast1000cd/㎡(1500cd/㎡optional)/1000:1
    Response Time/ Viewing Angle(Typical)5ms/89/89/89/89
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage

    8GB: 16GB/32GB/64GB Optional


    1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

    Line-Out /MIC IN

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

    Line-Out /MIC IN

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving40~65W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information21.5” Flat Bezel Panel PC 1000nits with PCAP Touch RK32880/ITD21PPCT5HBXE2
    21.5” Flat Bezel Panel PC 1000nits with Resistive Touch RK3288/ITD21PPCT1HBXE2
    21.5” Flat Bezel Panel PC 1000nits with Tempered Glass RK3288/ITD21PPCG1HBXE2
    21.5” Flat Bezel Panel PC 1000nits with PCAP Touch J1900/ITD21PPCT5HBXJ2
    21.5” Flat Bezel Panel PC 1000nits with Resistive Touch J1900/ITD21PPCT1HBXJ2
    21.5” Flat Bezel Panel PC 1000nits with Tempered Glass J1900/ITD21PPCG1HBXJ2
    21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i3/ITD21PPCT5HBXI3
    21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i3/ITD21PPCT1HBXI3
    21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i3/ITD21PPCG1HBXI3
    21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i5/ITD21PPCT5HBXI5
    21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i5/ITD21PPCT1HBXI5
    21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i5/ITD21PPCG1HBXI5

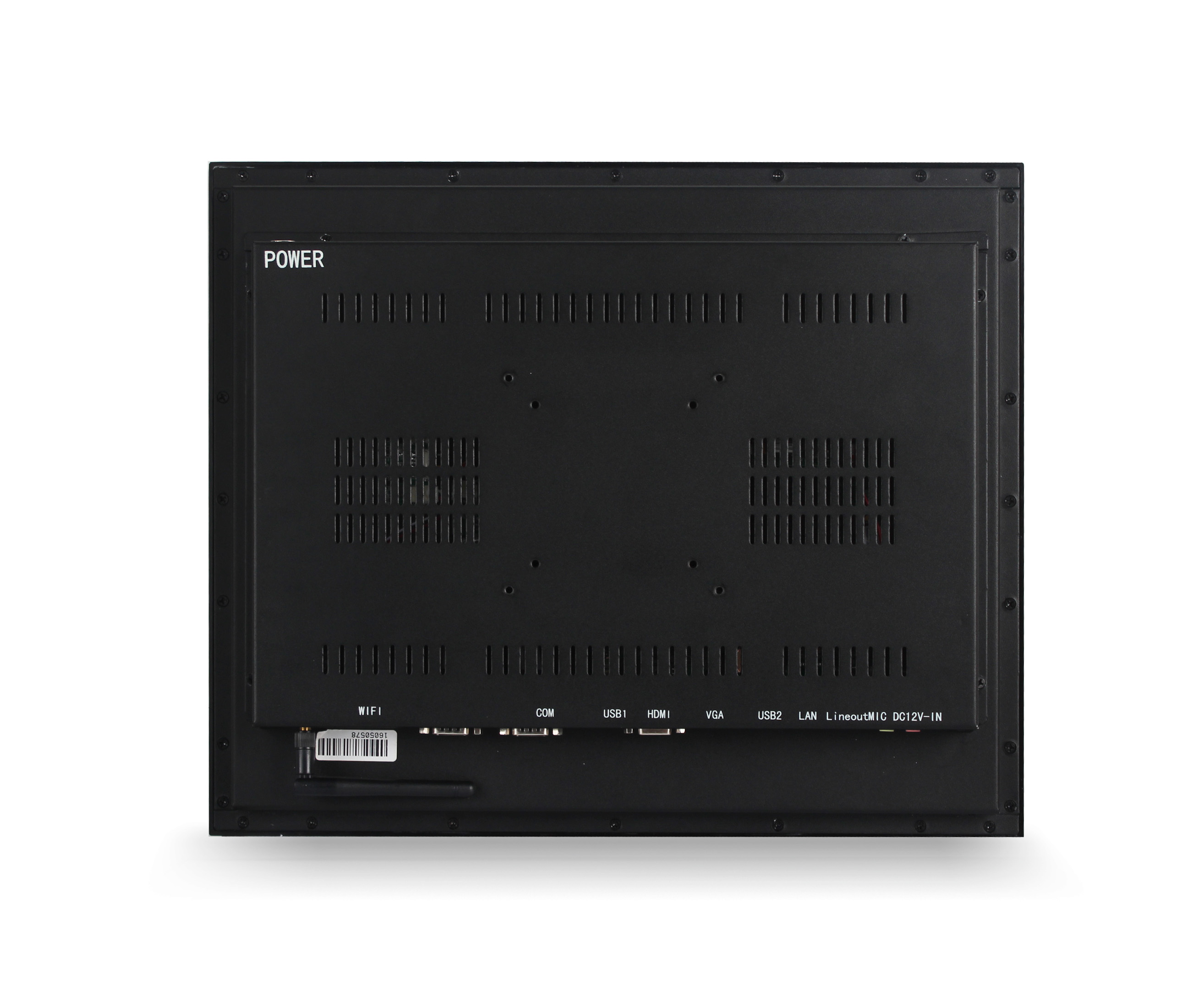

    Image:


    industrial panel PC





    Pcap touch panel PC
    Embedded panel PC

    panel mount PC



    FEATURES

    ▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS
    ▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity
    ▪ Energy-efficient and fan-less HMI Systems
    ▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel
    ▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support
