    19" Integrated Buttons Operation Panel PC HMI industrial waterproof panel PC

    Ask Lasest Price
    Brand Name : ITD
    Model Number : ITD19PPCT5O*
    Certification : CE,ROHS,FCC
    Payment Terms : T/T in advance
    Supply Ability : 10000
    Delivery Time : a month
    • Product Details
    • Company Profile

    19" Integrated Buttons Operation Panel PC HMI industrial waterproof panel PC

    19" Integrated Buttons Operation Panel PC HMI industrial waterproof panel PC

    ITD integrated buttons operation panel PC typically features a touchscreen display, allowing users to interact directly with the interface by tapping or swiping on the screen. In addition to the touchscreen functionality, the device incorporates physical buttons that are strategically placed on the panel for specific functions. These buttons may serve as shortcuts, control inputs, or dedicated keys for certain tasks, enhancing the overall user experience and efficiency. It is mainly used for industrial automation, manufacturing control systems, medical equipment interfaces, and more. The integration of physical buttons with a touchscreen interface aims to strike a balance between the convenience of touch interaction and the precision of dedicated buttons, catering to a wide range of user preferences and operational requirements.


    Specifications:

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio19”/4:3
    Active Area/ Pixel Pitch376.3(W) ×301.1(H)mm/0.294× 0.294mm
    Native Resolution/ Colors1280×1024/16.7M
    Brightness/ Contrast250cd/㎡/1000:1
    Response Time/ Viewing Angle(Typical)5ms/85/85/80/80
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 optional)Intel® Celeron J1900//J4125/J6412 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)

    2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

    DDR4 SODIMM ×2 (8th~11th gen.)

    Storage

    8GB: 16GB/32GB/64GB Optional


    1×MSATA, 1×SATA

    1×M.2 (not available for J1900) Default to 64GB SSD

    1×MSATA, 1×SATA

    1×M.2 Default to 64GB SSD

    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD/UHD Graphics (By CPU)
    I/O

    1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

    1 × TF Card Support 8~128GB

    1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; COM port(optional); 1×Realtek ALC662

    Line-Out /MIC IN

    1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 1×COM max. 6; 1×Realtek ALC662

    Line-Out /MIC IN

    LAN1×10/100/1000Mbps Ethernet1× 10/100/1000Mbps Ethernet( Dual LAN optional)1×10/100/1000Mbps Ethernet( Dual LAN optional)
    OS

    Android 7.1/8/10/11

    Linux Ubuntu(optional)

    Windows 7/10, Linux

    Windows 11(available for J4125/J6412)

    Windows 7/10, Linux

    Windows 11(available for 7th gen. or above)

    GENERAL

    PowerInput VoltageDC 12V input
    Operation/Power Saving15~30W
    Environment ConsiderationsOperating Temperature-10~60℃ (-20~70℃ optional)
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information19” Integrated Buttons Panel PC with PCAP Touch RK3288/ITD19PPCT5OE1
    19” Integrated Buttons Panel PC with Resistive Touch RK3288/ITD19PPCT1OE1
    19” Integrated Buttons Panel PC with PCAP Touch RK3568/ITD19PPCT5OE3
    19” Integrated Buttons Panel PC with Resistive Touch RK3568/ITD19PPCT1OE3
    19” Integrated Buttons Panel PC with PCAP Touch J1900/ITD19PPCT5OJ1
    19” Integrated Buttons Panel PC with Resistive Touch J1900/ITD19PPCT1OJ1
    19” Integrated Buttons Panel PC with PCAP Touch J4125/ITD19PPCT5OJ4
    19” Integrated Buttons Panel PC with Resistive Touch J4125/ITD19PPCT1OJ4
    19” Integrated Buttons Panel PC with PCAP Touch J6412/ITD19PPCT5OJ6
    19” Integrated Buttons Panel PC with Resistive Touch J6412/ITD19PPCT1OJ6
    19” Integrated Buttons Panel PC with PCAP Touch i3/ITD19PPCT5OI3
    19” Integrated Buttons Panel PC with Resistive Touch i3/ITD19PPCT1OI3
    19” Integrated Buttons Panel PC with PCAP Touch i5/ITD19PPCT5OI5
    19” Integrated Buttons Panel PC with Resistive Touch i5/ITD19PPCT1OI5
    19” Integrated Buttons Panel PC with PCAP Touch i7/ITD19PPCT5OI7
    19” Integrated Buttons Panel PC with Resistive Touch i7/ITD19PPCT1OI7

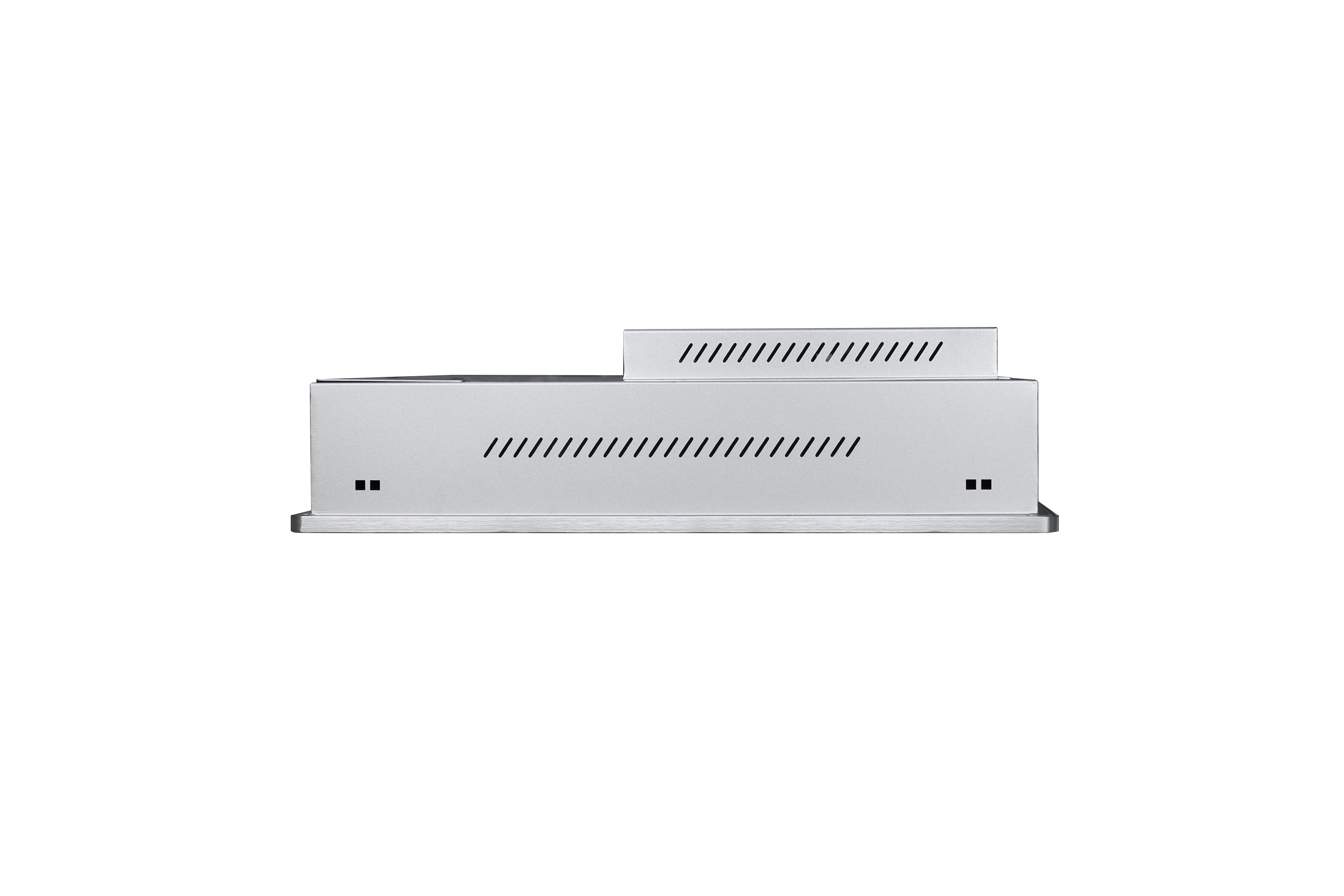

    Product Display







    full IP65 operation panel PC

    full IP65 panel PC
    operation panel PC
    waterproof operation panel PC
