    10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD101KITT5xxxx
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, PayPal(173515844@qq.com)
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-7 Business Days
    • Product Details
    • Company Profile

    10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface

    10.1" lcd touch screen kits TFT-LCD pcap multi touch screen with USB interface


    SPECIFICATIONS of 17.3" 10.1" lcd touch screen kits


    10.1 inch LCD Touchscreen Kit
    Model NameITD101KITT5xxxx
    IP RatingFront IP65

    LCD Pane
    Screen Diagonal (Inch)10.1”
    Display Active Screen Size (mm)216.96(W)×135.6(H)
    Aspect Ratio16:10
    Physical Resolution1280×800 (1920×1200 optional)
    Maximum Resolution Supported1920×1200
    Colors16.7M
    Brightness (cd/m2)350 cd/m2 (1000 cd/m2 optional)
    Response Time25ms
    Contrast Ratio800:1
    View Angels85/85/85/85
    Backlight/Backlight LifetimeLED Backlight with 30000Hours’Lifetime

    Touch Panel
    Touch TechnologyProjected Capacitive Touch
    Touch DriversWindows, Linux, Android, Mac, Raspberry Pi
    Touch Life50,000,000times/click
    Surface Hardness7H
    Surface TreatmentAnti-Glare, Anti-Reflective, Anti-Finger optional
    Glass StrengtheningChemically Strengthened

    AD Board(optional)
    Video Input1 × VGA
    1 × DVI-I
    1 × HDMI
    Audio1 × PC-Audio
    Touch Connector1 × USB
    Power Connector1 × DC2.0

    Operation
    Operating Temperature Range-20~70°C
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power
    Power InputDC 12V, DC9~36V input optional
    Power Consumption8W

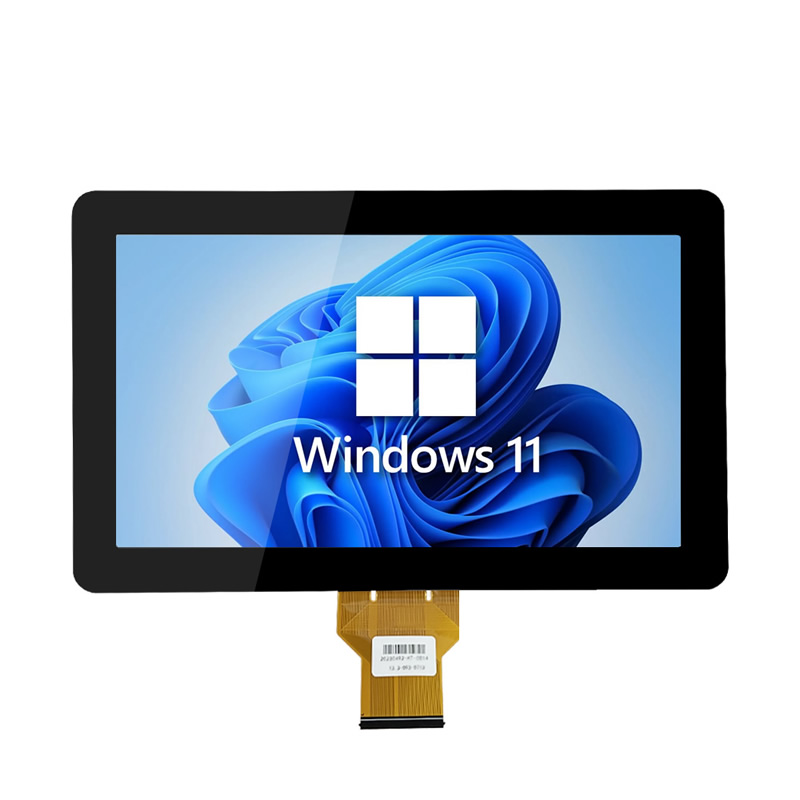

    Product image:
