    21.5inch Flat Bezel Sunlight Readable LCD Monitor For Industries

    Ask Lasest Price
    Brand Name : ITD/OEM
    Certification : FCC,CE,RoHS Certified
    Price : TBA
    Supply Ability : 10000pcs per month
    Delivery Time : 5-15 Business Days
    • Product Details
    • Company Profile

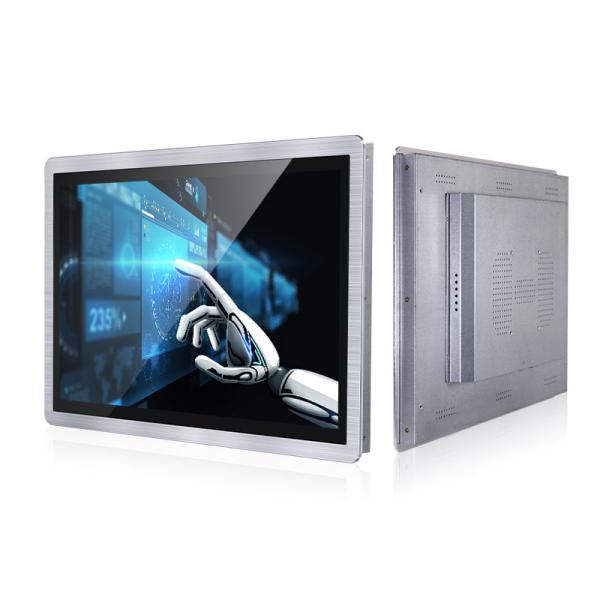

    21.5inch Flat Bezel Sunlight Readable LCD Monitor For Industries

    21.5inch Flat Bezel Sunlight Readable LCD Monitor For Industries


    21.5” High Bright Flat Bezel High-performane LED Touch monitor screen Panel computers Display Solutions for industries


    Typical Application

    Industrial Automation

    Oil & Gas

    Marine

    Transport and Ticketing

    Banking Automation

    Customized Solutions

    BASIC PARAMETERS

    1. 1 General

    Article21.5” High Bright Flat Bezel Panel Mount LCD Monitor
    IPIP65(for front panel only)
    Cut-Out Dimensions541×329mm
    Aluminum Front Bezel Thickness3mm (6mm, 10mm optional)
    Weight(N.W/G.W)10.5Kg / 10.8Kg (Approx.)
    LCD Type21.5"Active matrix TFT-LCD
    Video InputVGA and DVI-I, HDMI, Audio
    Recommend Resolution1920×1080 @60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power InputDC 12V Power Plug; DC 9-36V input optional
    Power Consumption35W
    Mount Interface

    1)VESA 75×75/100×100mm

    2)Panel Mounting via Clamps

    Regular Warranty1 Year for TFT panels; 2 Years for others.
    Agency ApprovalFCC,CE,RoHS Certified
    Order Information21.5” 1000nits Flat Bezel 3mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX32
    21.5” 1000nits Flat Bezel 3mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX32
    21.5” 1000nits Flat Bezel 3mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX32
    21.5” 1000nits Flat Bezel 10mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX2
    21.5” 1000nits Flat Bezel 10mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX2
    21.5” 1000nits Flat Bezel 10mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX2
    21.5” 1500nits Flat Bezel 3mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX31
    21.5” 1500nits Flat Bezel 3mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX31
    21.5” 1500nits Flat Bezel 3mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX31
    21.5” 1500nits Flat Bezel 10mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX1
    21.5” 1500nits Flat Bezel 10mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX1
    21.5” 1500nits Flat Bezel 10mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX1

    1. 2 LCD Specification

    Active Area(mm)476.64(H) x268.11(V)
    Resolution1920×1080
    Pixel Pitch(mm)0.24825×0.24825
    Nominal Input Voltage VDD+5V(Typ)
    Viewing angle (L/R/T/B)89°/89°/89°/89°
    Contrast1000:1
    Luminance(cd/m2)1000 (1500 optional)
    Response Time(Rising/Falling)5ms
    Support Color16.7M
    Screen Scanning60Hz
    Backlight MTBF(hr)50000h

    1.3 Touch Screen Specification

    1.3.1 Projected Capacitive Touch Screen

    TypeProjected Capacitive Touch Screen
    Surface Hardness7H
    Light Transmission85%±5%
    Touch Life Cycle50 million times
    Touch Response time5ms
    Touch System InterfaceUSB A type (USB B type optional)
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Mac, Android


    1.3.1 5 Wires Resistive Touch Screen

    Type5 Wires Resistive Touch Screen
    Surface Hardness3H
    Surface TreatmentAnti-Glare
    Light Transmission≥78%
    Finger Touch Life35 million times
    Touch Response time≤15ms
    Touch System InterfaceUSB B type (A type optional)
    Operating System SupportDrivers for Windows CE/XP/7/8/10,Linux, Mac, Android

    2.4 External AC Power Adapter

    Output12V DC/5A
    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    2.5 Environment

    Operating Temp.-10~60°C (-20~70°C optional)
    Storage Temp.-20~70°C
    Operating RH:10%~90%
    Storage RH:10%~90%
    Anti-Vibration5Hz-500Hz / 1Grms/3 Axis (optional)
    Anti-Shock15G, 15ms Duration (optional)
