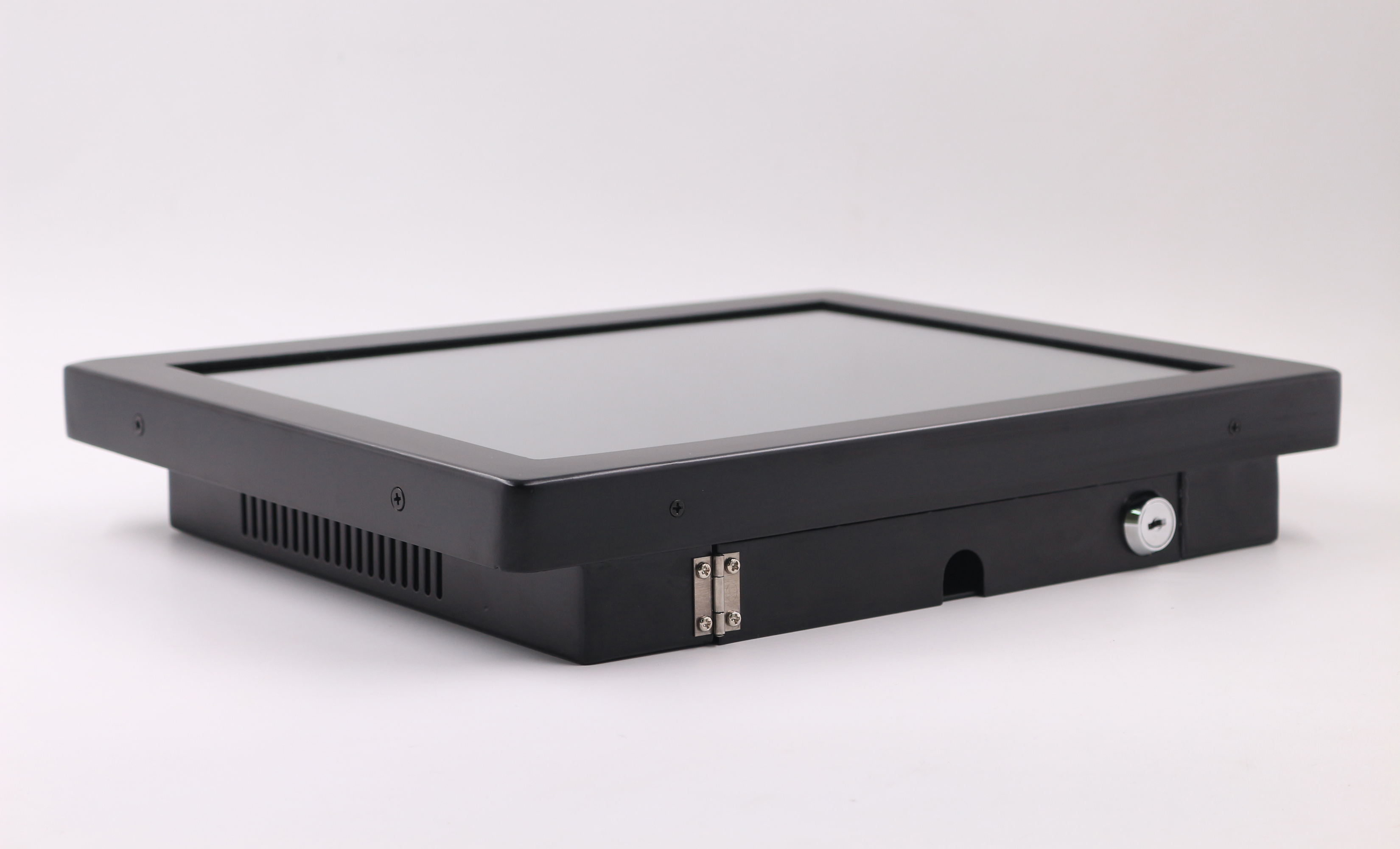

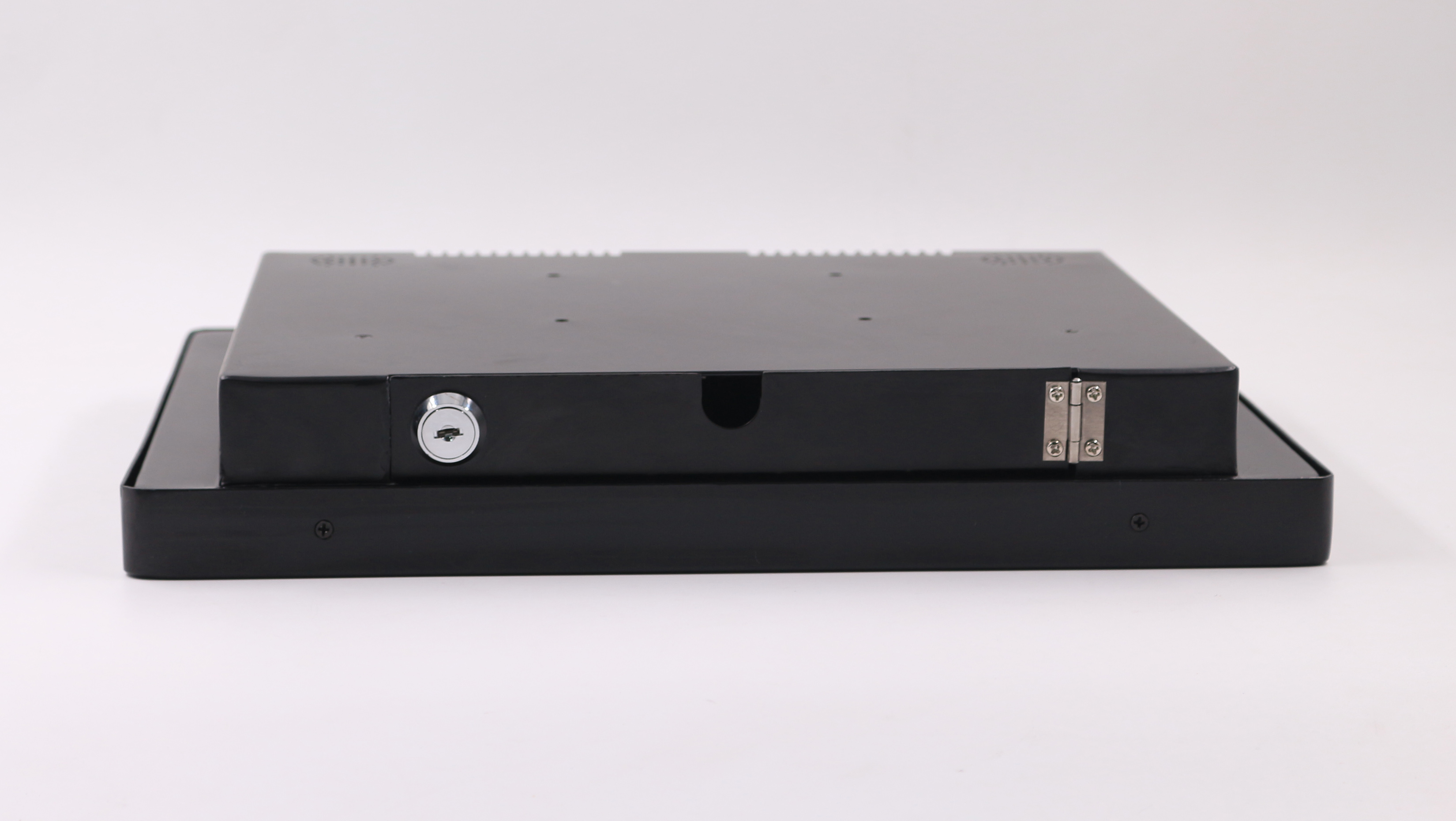

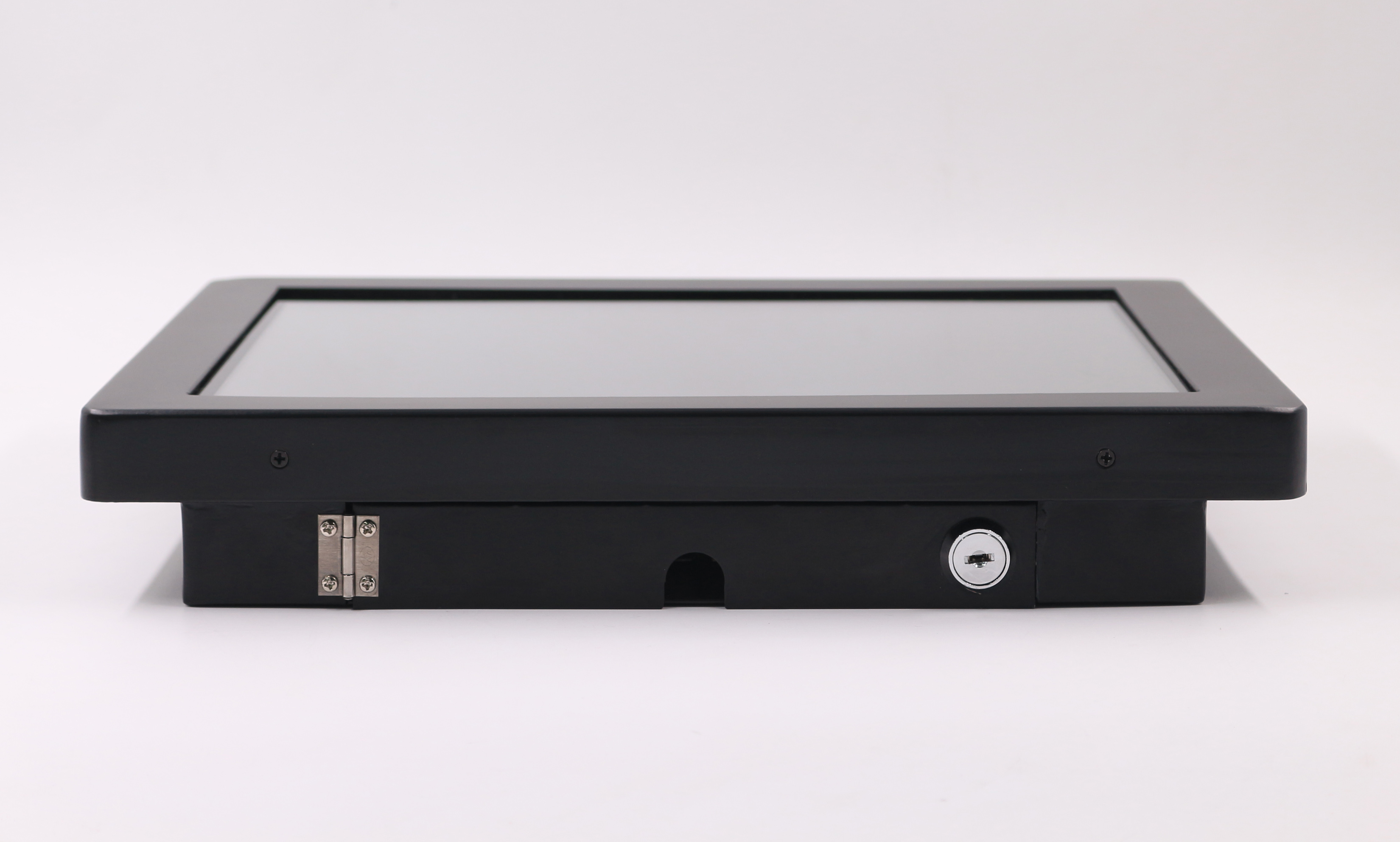

    TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD15PPCN1HBLxx
    Price : TBA
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance

    TFT 65inch All In One Touch Panel PC With CE FCC RoHS Compliance


    ITD 7-65inch chassis Industrial LCD touch display panel pc touch screen minitor all-in-one Mini Computer


    FEATURES

    • Flexible, reliable, and ruggedized for open platform HMI/SCADA
    • Energy-efficient and fan-less HMI Systems
    • Low cost solution with high cost-efficient
    • All steel construction designed for harsh and industrial environments

    • Flexible, easy configuration and integration
    • CE, FCC, RoHS Compliance


    OPTIONALS


    • Anti-Glare / Anti-Reflective Tempered Glass• Optical Bonding
    • Resistive, IR, SAW, PCAP, SLW• WIFI, 3G, 4G
    • Web camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal printer, GPS etc.• DC9-36V input, AC100-240V input

    DISPLAY

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio15”/4:3
    Active Area/ Pixel Pitch304.13(W) x 228.10(H)mm/0.297 × 0.297mm
    Native Resolution/ Colors1024 x 768/16.2M
    Brightness/ Contrast1000cd/㎡(1500cd/㎡ optional)/700:1
    Response Time/ Viewing Angle(Typical)30ms/80/80/60/80
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHzIntel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288(RK3399 optional)Intel Bay Trail SoCIntel SoC Chipset
    Memory2GB; 4GB OptionalDual Channel, DDR3 1333/1600MHz Memory, Max.8GB2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

    Line-Out /MIC IN

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

    Line-Out /MIC IN

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving25~55W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
