    7'' Embedded Industrial LCD Monitor Rugged HD All In One Fanless Touchscreen PCs PCAP

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD07PPCT1J1
    Certification : CE,FCC, RoHS Compliance
    Price : TBA
    Payment Terms : T/T
    Delivery Time : 10-15 Business days
    • Product Details
    • Company Profile

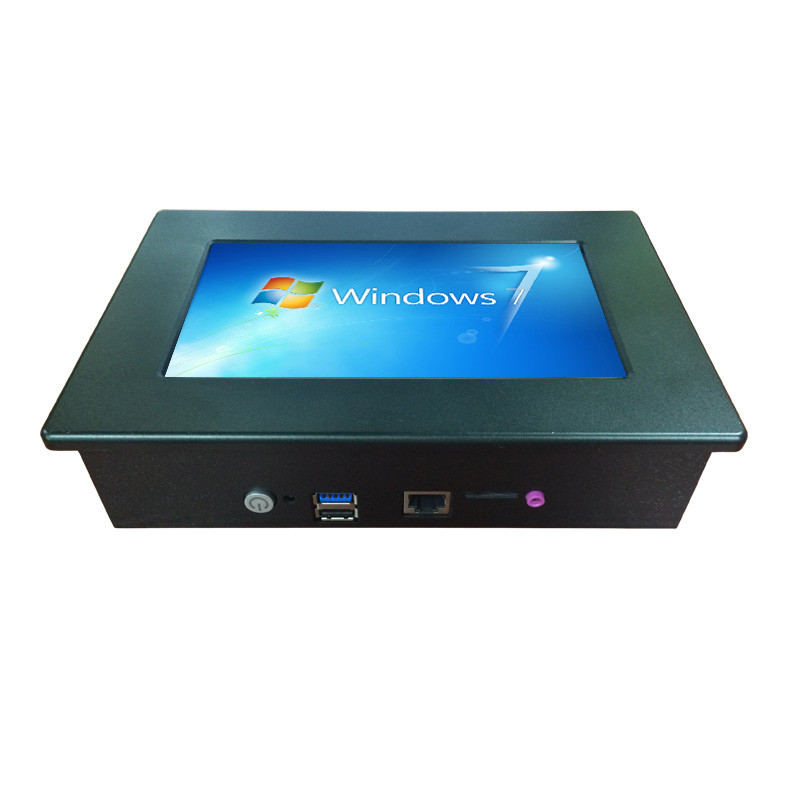

    7'' Embedded Industrial LCD Monitor Rugged HD All In One Fanless Touchscreen PCs PCAP

    7'' Embedded Industrial LCD Rugged HD LCD All-In-One Fanless Touchscreen PCs | High Brightness | PCAP | Panel Mount |

    7'' Embedded Industrial LCD Monitor Rugged HD All In One Fanless Touchscreen PCs PCAP7'' Embedded Industrial LCD Monitor Rugged HD All In One Fanless Touchscreen PCs PCAP7'' Embedded Industrial LCD Monitor Rugged HD All In One Fanless Touchscreen PCs PCAP7'' Embedded Industrial LCD Monitor Rugged HD All In One Fanless Touchscreen PCs PCAP


    ITD 7” ITD07PPCT1J1 is panel mount touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.


    FEATURES

    ▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

    ▪ Energy-efficient and fan-less HMI Systems

    ▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    ▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    ▪ Flexible, easy configuration and integration

    ▪ CE, FCC, RoHS Compliance


    OPTIONALS

    •Anti-Glare / Anti-Reflective tempered glass

    •SDD 64GB,128GB up to 521GB •HDD 500GB up to 1TB

    •Touch optional: Resistive, IR, PCAP

    •High brightness, sunlight readable

    •DC24V, DC 9-36V


    SPECIFICATION

    SystemCPUIntel® Celeron J1900 2.0GHz Processor
    Memory2GB, 4GB optional
    ChipsetInter Valley View SSA-Cunit
    HDD320GB SATA or 32GB SSD
    LAN1 x 10/100/1000Mbps Ethernet
    PanelCell Type/Glass SurfaceTFT LCD
    Aspect Ratio/Size7''
    Active Area/Pixel Pitch154.214(H) x 85.92(V)/ 0.1506 x 0.1432(H)mm
    Native Resolution/Colors1024 x 600 /16.7M
    Response TBrightness/Contrast500nits/800:1
    Viewing Angle(Typical)75/75/70/75
    Light SourceLED backlight with 50000hours’lifetime
    Input signalsVGA,HDMI
    Operating Temperature-10℃~60℃ (20~70℃ Optional)
    Storage Temperature-20℃~70℃
    Relative Humidity10%~90% (non condensing)
    Convenient FeaturesBacklight adjustment, Plug & Play
    PowerExternal AC-to-12VDC power adapter with universal/Auto-Sensing
    Power ConsumptionOperation/Power Saving: Below 15W
    OS SupportWindows 7/ 8/10, Windows Embedded, Linux, Win CE
    Touch PanelResistive touch panel
    Key ControlPower on/off with LED, Menu, Select, Adjustment(Right/Left)
