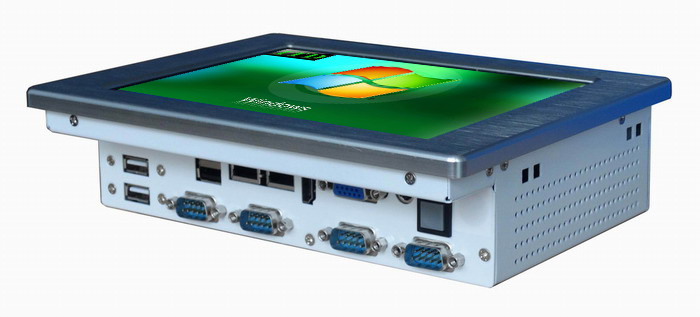

    Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD08PPCT1CI3
    Certification : CE, FCC, RoHS Compliance
    Price : TBA
    Payment Terms : T/T
    Delivery Time : 15~20 business days
    • Product Details
    • Company Profile

    Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP

    Steel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAPSteel Housing 8 Inch Industrial Grade Touchscreen Interactive Panel PCs LCD PCAP


    Product Description:

    ITD 8” ITD08PPCT1CI* is panel mount touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Core™ i3/i5/i7 processor, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.


    Key Features:Optional:

    ▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

    ▪ Energy-efficient and fan-less HMI Systems

    ▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

    ▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

    ▪ Flexible, easy configuration and integration

    ▪ CE, FCC, RoHS Compliance


    Optional:

    •Anti-Glare / Anti-Reflective tempered glass

    •SDD 64GB,128GB up to 521GB

    •HDD 500GB up to 1TB

    •Touch optional: Resistive, IR, PCAP

    •High brightness, sunlight readable

    •DC24V, DC 9-36V


    Specification:

    SystemCPUIntel® Core i3/i5/i7 Processor
    Memory2GB, 4GB optional
    BIOSAward BIOS 4/8Mbit SPI Flash ROM
    ChipsetIntel H81
    Memory1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage32GB SSD or 320GB HDD
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    HDMI Port1 X HDMI
    VGA Port1 x VGA
    Power Port1 x 12V DC Jack input
    LPT SlotN/A
    Audio CardRealtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
    WIFIBuilt-in, 802.11a/b/g/h (optional)
    PanelCell Type/Glass SurfaceTFT LCD
    Aspect Ratio/Size8”
    Active Area/Pixel Pitch214 (H) X 178(V)/0.264mm
    Native Resolution/Colors1024 x 768 /16.2M
    Brightness/Contrast250nits/700:1
    Viewing Angle(Typical)75/75/75/75
