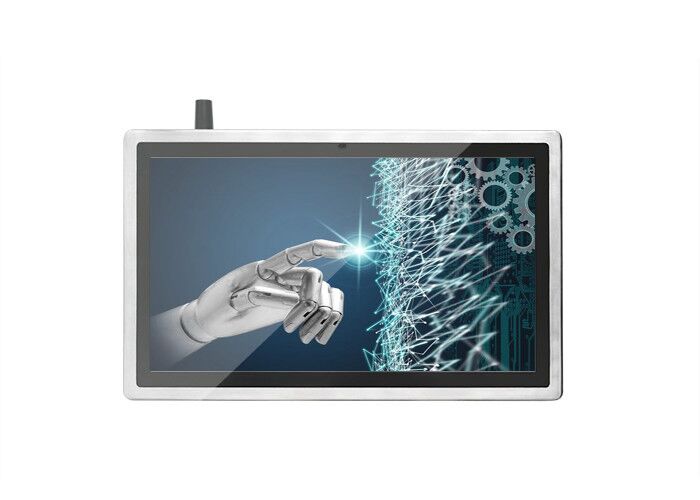

    13.3" 1000nits Outdoor Waterproof Android Pc 15W Capacitive Touch SCADA

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD13PPCG1IP**
    Certification : CE/ROHS/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 unit per month
    Delivery Time : 15-20 working days
    Price : TBA
    • Product Details
    • Company Profile

    13.3" 1000nits Outdoor Waterproof Android Pc 15W Capacitive Touch SCADA

    fully sealed NEMA4x wide screen 13.3" 1000nits outdoor waterproof android pc​

    FEATURES

    •Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

    •Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection

    •Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection

    •Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

    •Flexible, reliable, and ruggedized for open platform HMI/SCADA

    •Provides improved power efficiency and reduced consumption

    •CE, FCC, RoHS Compliance


    Specifications


    DISPLAY

    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio13.3”/16:9
    Active Area/ Pixel Pitch293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm
    Native Resolution/ Colors1920 x 1080/262K
    Brightness/ Contrast1000cd/㎡/700:1
    Response Time/ Viewing Angle(Typical)16ms/89/89/89/89
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    Default Waterproof I/O

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    2 × USB, 1× RJ45, 1× DC12V.

    COM ports, HDMI Output, Audio, etc. optional

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving20~45W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    MountingVESA Mount, Panel/Embedded Mount optional
    Order Information13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD13PPCG1HBIP*E2
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD13PPCT1HBIP*E2
    13.3” 1000nits Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD13PPCT5HBIP*E2
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD13PPCG1HBIP*J2
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD13PPCT1HBIP*J2
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD13PPCT5HBIP*J2
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD13PPCG1HBIP*I3
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD13PPCT1HBIP*I3
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD13PPCT5HBIP*I3
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD13PPCG1HBIP*I5
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD13PPCT1HBIP*I5
    13.3” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD13PPCT5HBIP*I5

    Product Display
