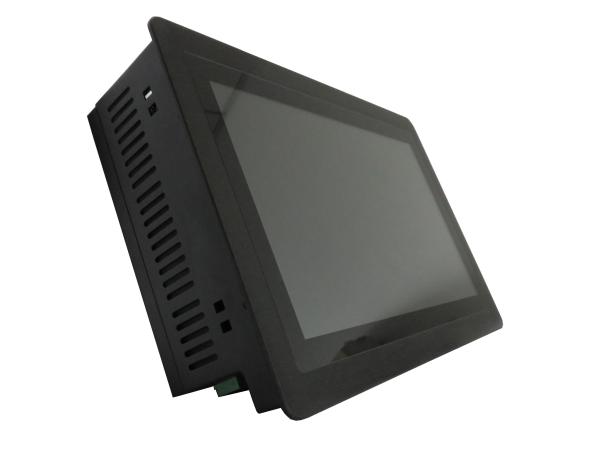

    20W 350nits Industrial Touch Screen PC 13.3" 1600MHz With -20~70℃

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD13PPCT5Xxx
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Business Days
    • Product Details
    • Company Profile

    20W 350nits Industrial Touch Screen PC 13.3" 1600MHz With -20~70℃

    marine panel PC industrial touch screen 13.3" with -20~70℃


    PanelCell Type/Glass SurfaceTFT
    Size/ Aspect Ratio13.3”/16:9
    Active Area/ Pixel Pitch293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm
    Native Resolution/ Colors1920 x 1080/262K
    Brightness/ Contrast1000cd/㎡/700:1
    Response Time/ Viewing Angle(Typical)16ms/89/89/89/89
    Light SourceLED Backlight with 50000Hours’Lifetime

    SYSTEM

    ItemAndroid SolutionX86 Solution 1X86 Solution 2
    CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
    ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
    Memory

    2GB; 4GB Optional


    Dual Channel, DDR3 1333/1600MHz Memory,

    Max.8GB

    2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
    Storage

    8GB: 16GB/32GB/64GB Optional


    1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
    GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
    I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

    Line-Out /MIC IN

    1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

    Line-Out /MIC IN

    LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
    OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

    GENERAL

    PowerInput VoltageDC 12V 2.0
    Operation/Power Saving20~45W
    Environment ConsiderationsOperating Temperature-10~60℃
    Storage Temperature-20~70℃
    Relative Humidity10%~90%
    Order Information13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch RK32880/ITD13PPCT5HBXE2
    13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch RK3288/ITD13PPCT1HBXE2
    13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass RK3288/ITD13PPCG1HBXE2
    13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch J1900/ITD13PPCT5HBXJ2
    13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch J1900/ITD13PPCT1HBXJ2
    13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass J1900/ITD13PPCG1HBXJ2
    13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch i3/ITD13PPCT5HBXI3
    13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch i3/ITD13PPCT1HBXI3
    13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass i3/ITD13PPCG1HBXI3
    13.3” Flat Bezel Marine Panel PC 1000nits with PCAP Touch i5/ITD13PPCT5HBXI5
    13.3” Flat Bezel Marine Panel PC 1000nits with Resistive Touch i5/ITD13PPCT1HBXI5
    13.3” Flat Bezel Marine Panel PC 1000nits with Tempered Glass i5/ITD13PPCG1HBXI5
