    9.7" Android Flat Panel PC PCAP Touch Screen RK3399 Octa Core Open Frame

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD09PPCT5FJ2
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 15-20 Business Days
    • Product Details
    • Company Profile

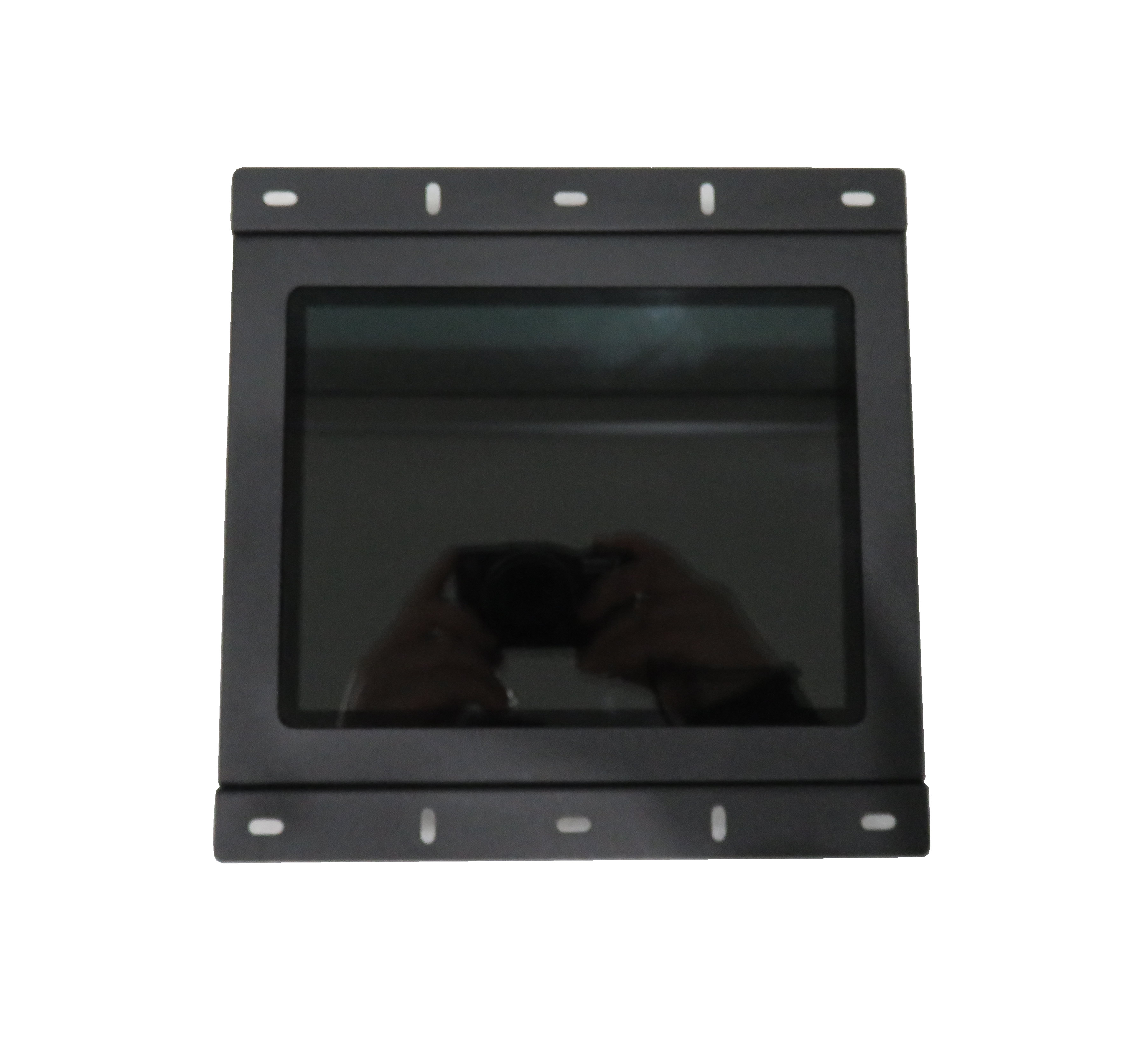

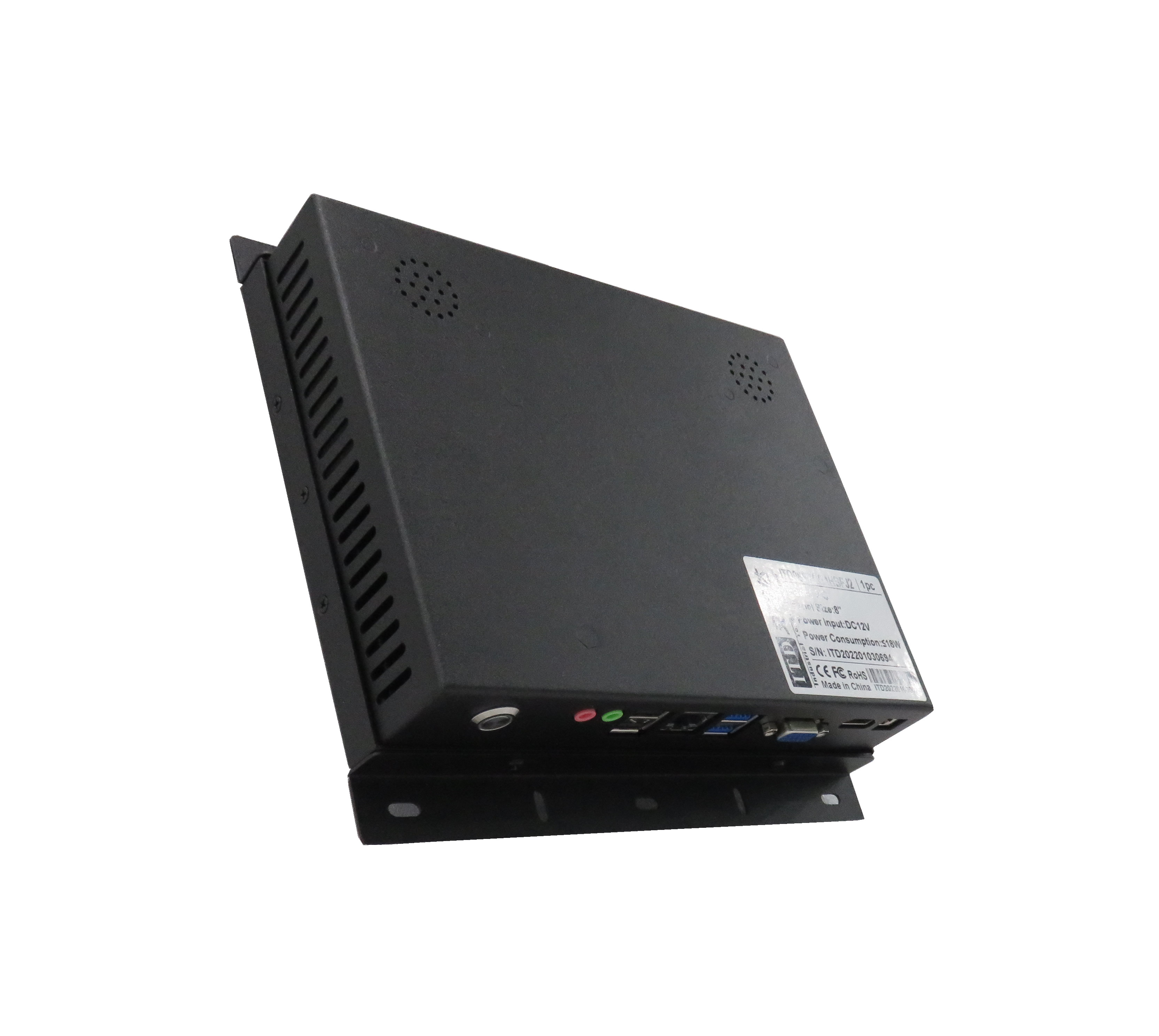

    9.7" Android Flat Panel PC PCAP Touch Screen RK3399 Octa Core Open Frame

    9.7" open frame android flat panel PC PCAP touch screen RK3399 Octa Core


    ITD 9.7” ITD09PPCT5LJ2 Low cost PPC series with rugged metal chassis, provides OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Processor J1900 2.0 GHz dual core, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions.


    FEATURES

    ▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

    ▪ Windows-based, integrated CPU, RAM, data storage, USB, RS232, and Ethernet ports

    ▪ All steel construction designed for harsh and industrial environments

    ▪ Supports Panel, Wall, and VESA arm mounting

    OPTIONALS

    •Anti-Glare / Anti-Reflective tempered glass

    •SDD 16GB, 32GB, 64GB or more

    •Touch optional: Resistive, PCAP

    •Built in WIFI


    SPECIFICATION

    SystemCPUIntel® Celeron J1900 2.0GHz Dual Core Processor
    BIOSAward BIOS 4/8Mbit SPI Flash ROM
    ChipsetInter Valley View SSA-Cunit
    Memory1xSO-DIMM DDR3L 1066/1333MHz Memory,Max.8GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage16GB SSD or 320GB HDD
    LAN1 x 10/100/1000Mbps Ethernet
    Input/OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1x HDMI Port
    Audio Card

    with Realtek ALC662

    Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

    PanelCell Type/Glass SurfaceTFT
    Aspect Ratio/Size9.7” 4:3
    Active Area/Pixel Pitch211.2(W)*158.4(H)/0.264
    Native Resolution/Colors1024 x 768 /16.7M
    Brightness/Contrast350nits/700:1
    Viewing Angle(Typical)80/80/80/80
    Light SourceLED
    Convenient FeaturesBacklight adjustment, Plug&Play, OSD Multi-Languages
    PowerInput VoltageAC 100V~240V, 50/60Hz
    Operation/Power Saving20W(Max)
    Output Voltage+12V 4A
    Environment ConsiderationsOperating Temperature0~60 deg.C
    Storage Temperature-30~80 deg.C
    Relative Humidity5%-95%
