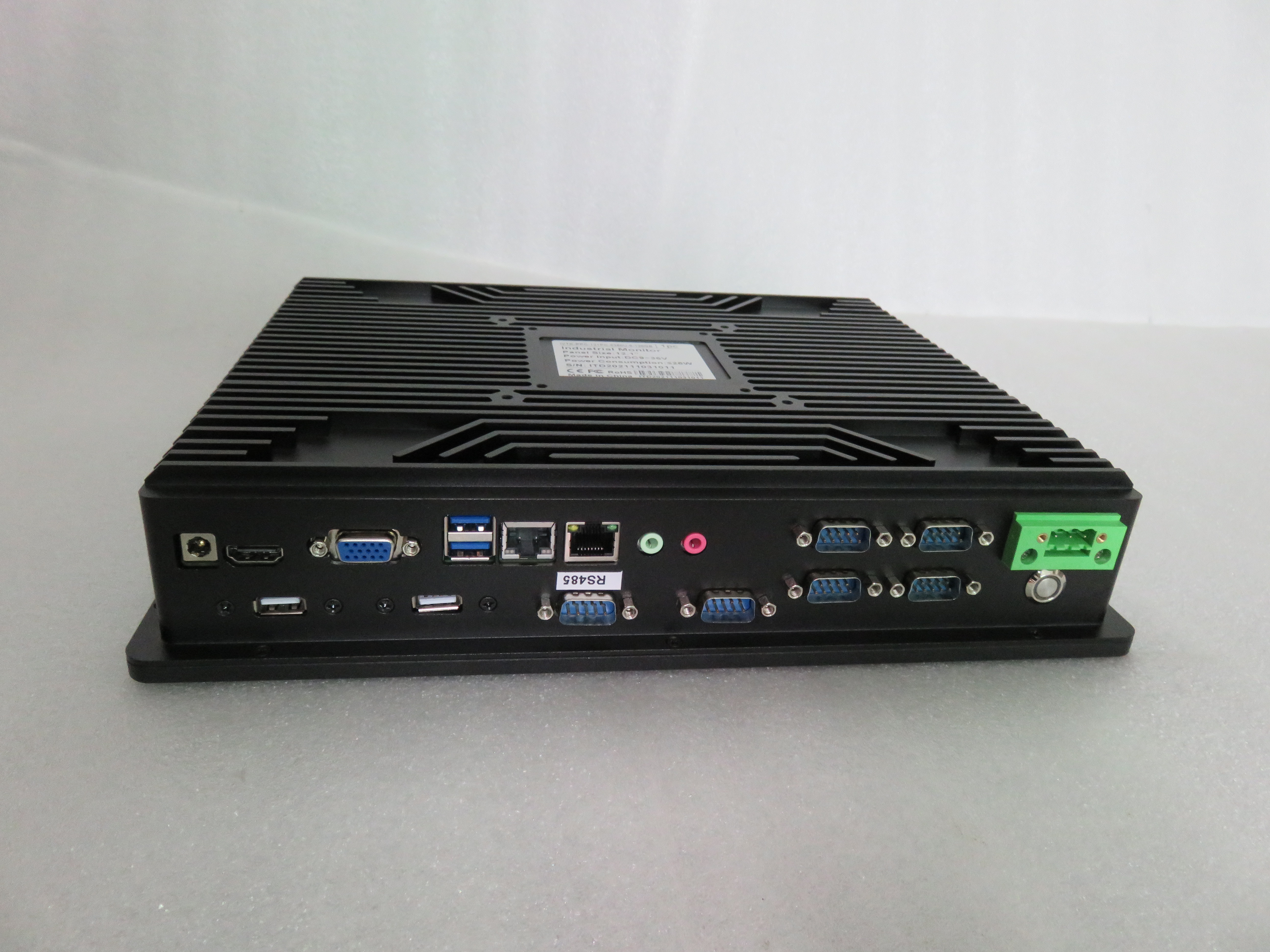

    Fanless 12.1" Industrial Hmi Touch Panel IP65 Front For Rail Airport CCTV

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD12PPCT5B-xxxx
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-10 Business Days
    • Product Details
    • Company Profile

    Fanless 12.1" Industrial Hmi Touch Panel IP65 Front For Rail Airport CCTV

    industrial hmi touch panel 12.1" fanless IP65 front for rail airport CCTV


    FEATURES

    • Onboard Intel J1900/4th Iintel Core i3/i5/i7 CPU
    • Onboard DDR3L 4GB Memory / Optional SODIMM SKU
    • Onboard DDR3L 4GB Memory / Optional SODIMM SKU
    • LCD+HDMI Output, Support Dual view/Simultaneous display
    • Fanless Operation
    • IP65 Front Bezel
    • Wide DC Support 9 ~ 36V
    • Windows 10 IoT Supported

    Industrial HMI Touch Panel PC
    Model NameITD12PPCT5B-xxxx
    IP RatingIP65 Front Panel

    PC Systems Options
    X86 Windows Based
    CPU: Intel? Celeron J1900 2.0GHz

    Chipset: Intel Bay Trail SoC
    Memory: DDR3L SODIMM SKU, Up to 8GB
    Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
    1 × HDMI, 2×GbE RJ45 Intel? i211
    3 × USB2.0 , 1 × USB3.0 , 1×USB2.0 dongle
    2 × DB-9 COM1&COM2,RS-232/422/485
    2 × 3-wire COM3&COM4 RS-232/485 with terminal block
    2 × 3-wire COM5&COM6 RS-232 with terminal block
    1 × Audio Out, 1×Line Out, 2 x 8Ω 1W Audio AMPout
    1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
    Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
    Mini-PCIe×1 half size for WIFI/BLT
    X86 Windows Based
    CPU: Intel? 4th 6th/7/8th Gen.Core i3/i5/i7 CPU
    Chipset: Intel SoC
    Memory: DDR3L/4L SODIMM SKU, Up to 16GB/32GB
    Storage: 1×mSATA, 1×SATA, 1×M.2 ( not available on J1900 CPU )
    1 × HDMI, 2×GbE RJ45 Intel? i211
    3 × USB2.0 , 1× USB3.0 , 1×USB2.0 dongle
    2 × DB-9 COM1&COM2,RS-232/422/485
    2 × 3-wire COM3&COM4 RS-232/485 with terminal block
    2 × 3-wire COM5&COM6 RS-232 with terminal block
    1 × Audio Out, 1×Line Out, 2 × 8Ω 1W Audio AMPout
    1 × A T/ATX switch, 1 × 14 bit GPIO (Optional), 1 × Remote switch with terminal block
    Expansion: Mini-PCIe×1 full size with SIM Card for 3G/4G
    Mini-PCIe×1 half size for WIFI/BLT

    LCD Panel
    Screen Diagonal (Inch)12.1”
    Display Active Screen Size (cm)246.0(H)×184.5(V)
    Aspect Ratio4:3
    Physical Resolution800×600 (1024×768 optional)
    Maximum Resolution Supported1920×1080
    Colors16.7M
    Brightness (cd/m2)350
    Contrast Ratio800:1
    View Angels80/80/70/70
    Backlight/Backlight LifetimeLED Backlight with 50000Hours'LifetimeV

    Touch Panel
    Touch OptionsProjected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
    Touch DriversWindows 7/8/10, Linux, Android, Mac

    Operation
    Operating Temperature Range-20~60°C
    Humidity Range (RH)10-90%
    24/7/365 UseSupported

    Power
    Power IndicatorGreen LED
    Power InputDC 9-36V with 3-pin terminal block
    Power Consumption35W

    Order Information
    12.1” Industrial HMI PCAP Touch Panel PC with J1900ITD12PPCT5B-J1900
    12.1” Industrial HMI Resistive Touch Panel PC with J1900ITD12PPCT1B-J1900
    12.1” Industrial HMI PCAP Touch Panel PC with i5-4200UITD12PPCT5B-i5-4200U
    12.1” Industrial HMI Resistive Touch Panel PC with i5-4200UITD12PPCT1B- i5-4200U
    12.1” Industrial HMI PCAP Touch Panel PC with i5-6360UITD12PPCT5B-i5-6360U
    12.1” Industrial HMI Resistive Touch Panel PC with i5-6360UITD12PPCT1B-i5-6360U
    12.1” Industrial HMI PCAP Touch Panel PC with i5-7200UITD12PPCT5B-i5-7200U
    12.1” Industrial HMI Resistive Touch Panel PC with i5-7200UITD12PPCT1B-i5-7200U
    12.1” Industrial HMI PCAP Touch Panel PC with i5-8250UITD12PPCT5B-i5-8250U
    12.1” Industrial HMI Resistive Touch Panel PC with i5-8250UITD12PPCT1B-i5-8250U
    12.1” Industrial HMI PCAP Touch Panel PC with i7-4500UITD12PPCT5B-i7-4500U
    12.1” Industrial HMI Resistive Touch Panel PC with i7-4500UITD12PPCT1B-i7-4500U
    12.1” Industrial HMI PCAP Touch Panel PC with i7-6500UITD12PPCT5B-i7-6500U
    12.1” Industrial HMI Resistive Touch Panel PC with i7-6500UITD12PPCT1B-i7-6500U
    12.1” Industrial HMI PCAP Touch Panel PC with i7-7500UITD12PPCT5B-i7-7500U
    12.1” Industrial HMI Resistive Touch Panel PC with i7-7500UITD12PPCT1B-i7-7500U
    12.1” Industrial HMI PCAP Touch Panel PC with i7-8550UITD12PPCT5B-i7-8550U
    12.1” Industrial HMI Resistive Touch Panel PC with i7-8550UITD12PPCT1B-i7-8550U
