    6.5" All In One Touch Panel PC Industrial Touch Screen HMI Windows 10 IoT

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD17PPCT5B-xxxx
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 15 Business Days
    • Product Details
    • Company Profile

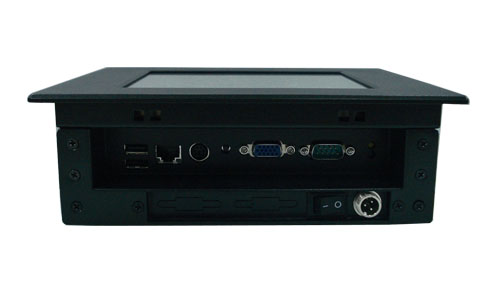

    6.5" All In One Touch Panel PC Industrial Touch Screen HMI Windows 10 IoT

    pc ind​​ustrial touch screen 6.5" all-in-one panel mount HMI Windows 10 IoT


    ITD 6.5” ITD06PPCT1CI* is panel mount touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Core™ i3/i5/i7 processor, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.


    FEATURES


    • Flexible, reliable, and ruggedized for open platform HMI/SCADA
    • Energy-efficient and fan-less HMI Systems
    • Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
    • Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
    • Flexible, easy configuration and integration
    • CE, FCC, RoHS Compliance

    OPTIONALS

    • Anti-Glare / Anti-Reflective tempered glass
    • SDD 64GB,128GB up to 521GB
    • HDD 500GB up to 1TB
    • Touch optional: Resistive
    • High brightness, sunlight readable
    • DC24V, DC 9-36V

    SPECIFICATION

    SystemCPUIntel® Core i3/i5/i7 Processor
    BIOSAMI
    ChipsetIntel SOC
    Memory2 x SO-DIMM, DDR6 1600MHz Memory, 4GB, Max.16GB
    Graphic ChipsetCPU integrated graphics HD and support 1080p
    Storage1 x SATA, 1 x mSATA
    LAN1 x 10/100/1000Mbps Ethernet
    Input / OutputSerial Ports1 x COM
    USB Ports4 X USB
    VGA Port1 x VGA
    HDMI Port1 x HDMI
    Power Port1 x 12V DC M12 Port
    Audio CardRealtek ALG662 Line-Out/MIC IN
    WIFIBuilt-in, 802.11a/b/g/h (optional)
    PanelCell Type/Glass SurfaceTFT LCD
    Aspect Ratio/Size6.5”
    Active Area/Pixel Pitch132.48(H) x 99.36 (V)/ 0.207mm
    Native Resolution/Colors640 x480 /16.2M/262K
    Brightness/Contrast400nits/600:1
    Viewing Angle(Typical)80/80/70/70
    Light SourceLED Backlight with 50000Hours’Lifetime
    Convenient FeaturesBacklight adjustment, Plug & Play
    PowerInput VoltageExternal power supply with universal / Auto-Sensing, DC 12V
    Operation/Power Saving25W
    Environment ConsiderationsOperating Temperature-10~60℃ (20~70℃ Optional)
    Storage Temperature-20~70℃
    Relative Humidity10%~90% (non condensing)
    OS SupportWindows 7/ 8/10, Windows Embedded, Linux, Win CE
    Touch PanelResistive touch panel
    Order Information6.5” Industrial panel PC i3 with resistive touch/ITD06PPCT1CI3
    6.5” Industrial panel PC i3 with tempered glass/ ITD06PPCG1CI3
    6.5” Industrial panel PC i5 with resistive touch/ITD06PPCT1CI5
    6.5” Industrial panel PC i5 with tempered glass/ ITD06PPCG1CI5
