13.3" Flat Panel LCD Monitor 1920×1080 PCAP Touch Display For Kiosks

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 13.3" Flat Panel LCD Monitor 1920×1080 PCAP Touch Display For Kiosks from wholesalers

    Buy cheap 13.3" Flat Panel LCD Monitor 1920×1080 PCAP Touch Display For Kiosks from wholesalers
    • Buy cheap 13.3" Flat Panel LCD Monitor 1920×1080 PCAP Touch Display For Kiosks from wholesalers
    • Buy cheap 13.3" Flat Panel LCD Monitor 1920×1080 PCAP Touch Display For Kiosks from wholesalers

    13.3" Flat Panel LCD Monitor 1920×1080 PCAP Touch Display For Kiosks

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD13OFT5Y1
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15 Business Days
    • Product Details
    • Company Profile

    13.3" Flat Panel LCD Monitor 1920×1080 PCAP Touch Display For Kiosks

    flat panel lcd monitor 13.3" 1920×1080 PCAP touch display for kiosks


    SPECIFICATION of PCAP Touch display

    ModelITD13OFT5Y1
    IPIP65(for front panel only)
    Outline DimensionsWidth: 339.5mm Height: 211mm Depth: 39.5mm
    Weight(N.W/G.W)2.04kg
    Packing DimensionTBA
    LCD Type13.3"Active matrix TFT-LCD
    Video InputVGA/HDMI
    Recommend Resolution1920×1080@60Hz,75Hz
    OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External Brick
    Input (line) Voltage: 100-240 VAC, 50-60 Hz
    Output Voltage/Current: 12V at 4A Max.
    Power Consumption6.5W
    Mount Interface

    1)VESA 75mm and 100mm

    2)Rear Mounting Brackets

    Regular Warranty1 Year for TFT Panel, 2 Years for others
    Agency ApprovalFCC, CE, RoHS Certified

    2.2 LCD Specification

    Active Area(mm)293.42(H)×164.97(V)
    Resolution1920×1080
    Pixel Pitch(mm)0.153×0.153
    Nominal Input Voltage VDD+3.3V(Typ)
    Viewing angle (L/R/T/B)85°/85°/85°/85°
    Contrast800:1
    Luminance(cd/m2)300
    Response Time(Rising/Falling)30ms
    Support Color262K
    Screen Scanning60Hz
    Backlight MTBF(hr)50000h

    2.3 Touch Screen Specification

    TypeProjected Capacitive Touch Screen
    Resolution4096×4096
    Light Transmission85%±5%
    Touch Life Cycle50 millions times
    Touch Response time5ms
    Touch System InterfaceUSB A type, B type optional
    Operating System Support

    Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

    Drivers for Windows CE/XP, Android, Mac

    2.4 External AC Power Adapter

    Output12V DC/4A (24V DC, 9-36V DC optional)
    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C

    2.5 Environment

    Operating Temp.-10~60°C
    Storage Temp.-20~70°C
    Operating RH:10%~90% (Non Condensing)
    Storage RH:10%~90%

    OSD MENU FUNCTION KEY


    NOButtonAction
    1AUTOMove up menu to select
    2MENU1: Enable/Disable OSD Menu; 2: Return to Previous Menu
    3LEFT/DECREASE1: Decrease the value; 2: Volume Hot Key. 3: Select the Menu
    4RIGHT/INCREASE1: Increase the value; 2: Volume Hot Key
    5EXITEXIT Select the Display Mode
    6LEDIndicator
    7ON/OFF(POWER)Power on/off

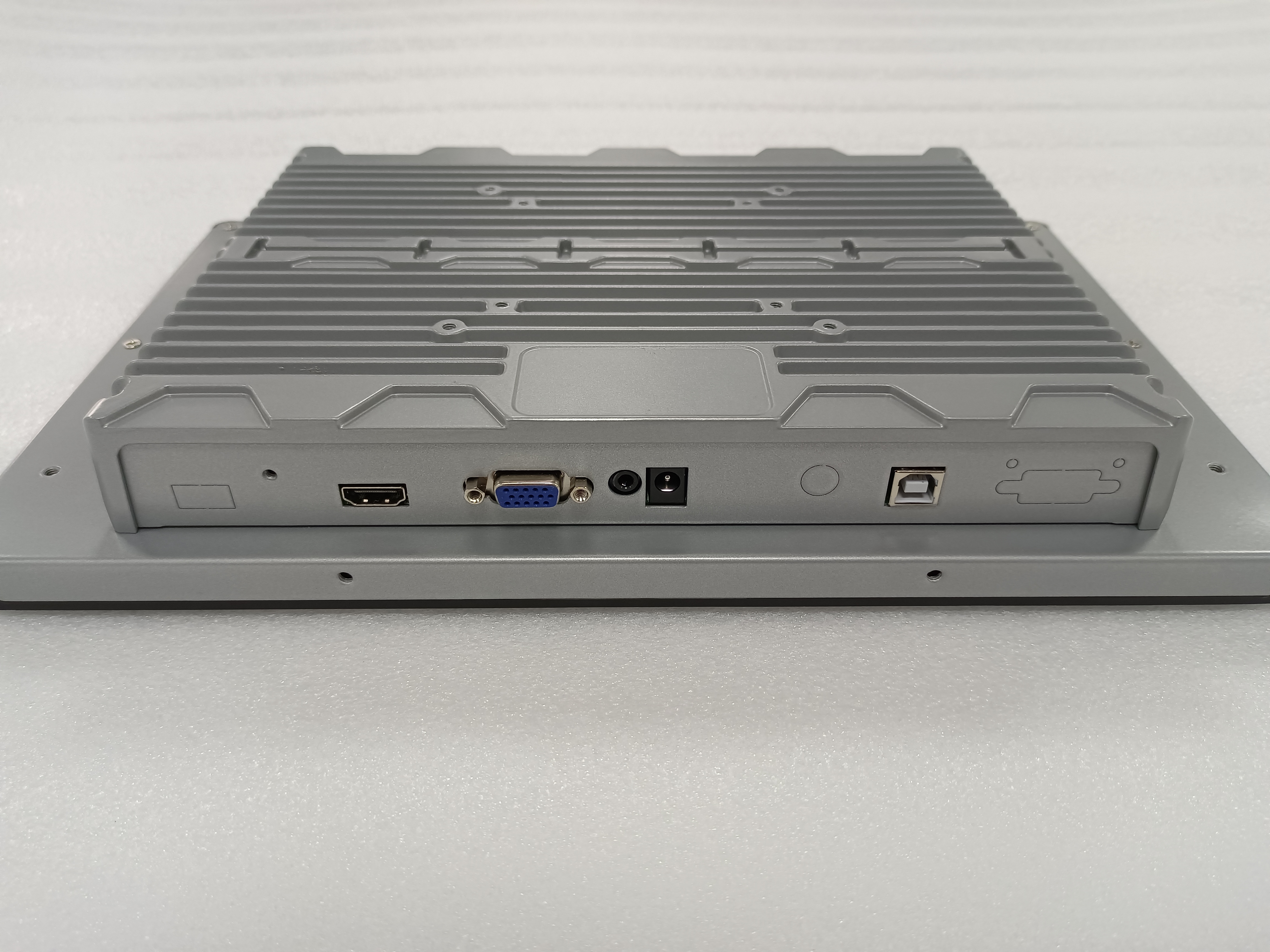

    Photos of flat panel LCD monitor
