    17 Inch IP67 Panel PC Fanless Modular TPM 2.0 Flat Bezel Capacitive / Resistive Touch

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD17PPCT5B-xxxx
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 5-10 Business Days
    • Product Details
    • Company Profile

    17 Inch IP67 Panel PC Fanless Modular TPM 2.0 Flat Bezel Capacitive / Resistive Touch

    17 inch ip67 panel pc fanless modular design TPM 2.0


    Features of IP67 panel PC

    • Onboard powerful lntel Core 8/10/11代-U i5/i7 CPU
    • Flat Bezel Panel mount supported
    • Die-Casting Aluminum Housing with Fanless Operation
    • IP67 Front Bezel
    • Windows 11, TPM 2.0 Supported
    • Wide DC Support 9 ~ 36V
    • High brightnesss optional
    • Multi touch capacitive or resistive touch

    Applications of fanless panel PC

    • Automation
    • Transportation&Logistics
    • Robots
    • IoT
    • Marine
    • Fitness clubs
    • Warehouse&Logistics
    • Healthcare
    • Government
    • Smart charging station
    • Gas Station
    • Amusement Park
    • Outdoor Kiosks

    Processorlntel Celeron J4125/J6412 CPU
    lntel Core 8/10/11代-U i5/i7 CPU
    System MemoryJ4125/J6412: DDR4 SODIMM x1
    Core i5/i7: DDR4 SODIMM x2
    Ethernet2x 2.5 GbE R
    J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V)
    I/O Port

    4 x USB2.0 , 2 x USB3.0 (J4125/J6412)
    1 1 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th intel Core i5/i7)
    2 x DB-9 COM1&COM2,RS-232/422/485

    1 x Audio Line-out

    2 x 8Ω 1W Audio AM P out (Optional)

    1 x AT/ATX switch

    1 x HDMI

    1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO,
    1x Remote switch

    Storage Disk Driver1 x M.2 2242/2260/2280 SATA
    1 x SATA(2.5'' SATA )
    1 x M.2 2280 NVME
    Expansion SlotM.2 3042/3052 with SIM Card for 3G/4G/5G
    M.2 2230 WiFi/Bluetooth
    Watchdog timer1~655 35S
    OS supportWindows® 10/11, WES 10, LINUX
    ConstructionAluminum
    MountingVESA 75/ 100 Panel mount

    Operating TMP-20°C ~ 60 °C
    Storage TMP- 30°C ~ 70°C
    Storage Humidity10~90% @30°C, non-condensing
    DC InputDC 9 ~ 36V 4-pin M12 connector
    Display Type17" TFT-LCD
    Max.Resolution1280*1024
    Max.Colors16.7M
    Luminance250 cd/m²
    Viewing Angle(CR>=10)-8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V )
    Back Light MTBF (hours50000H

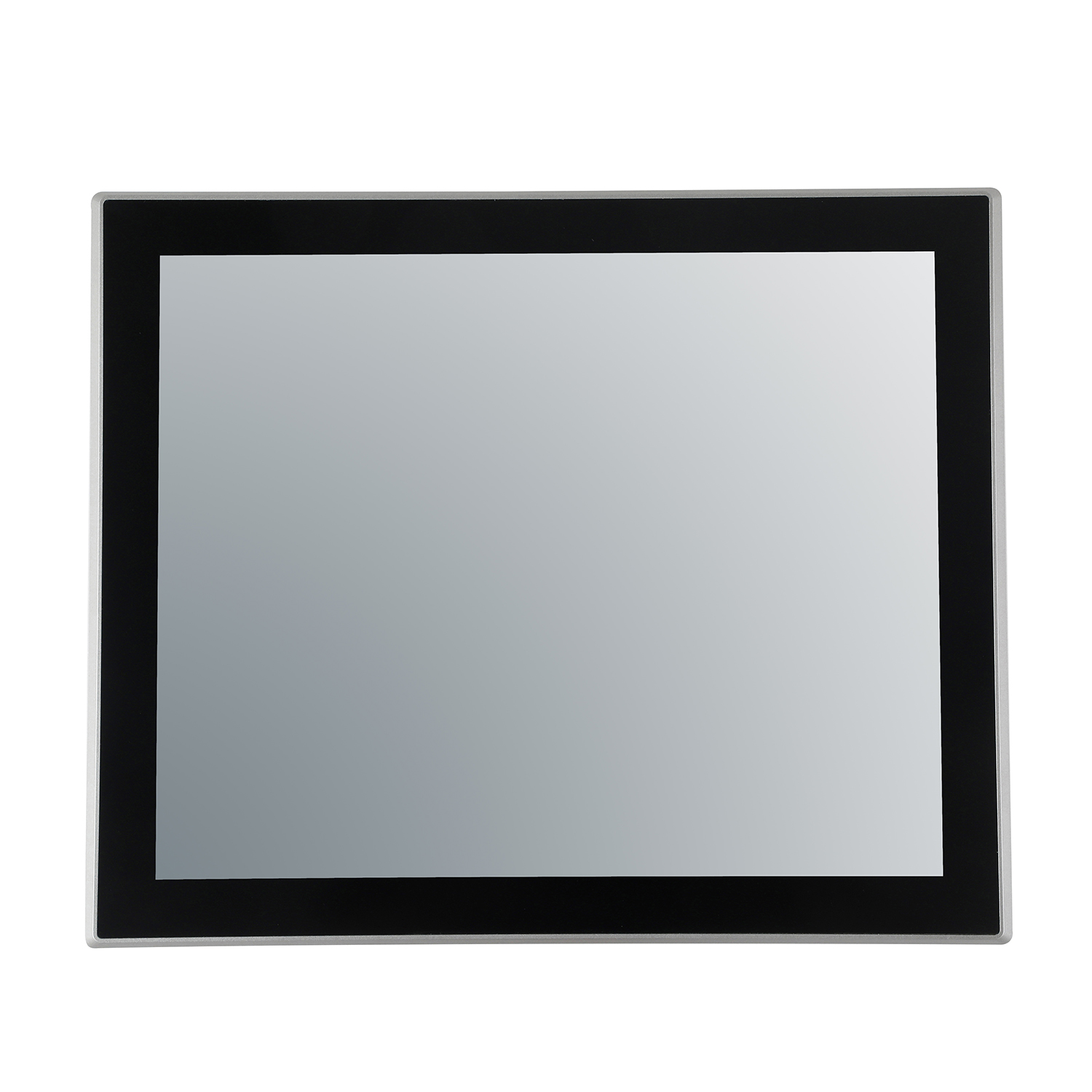

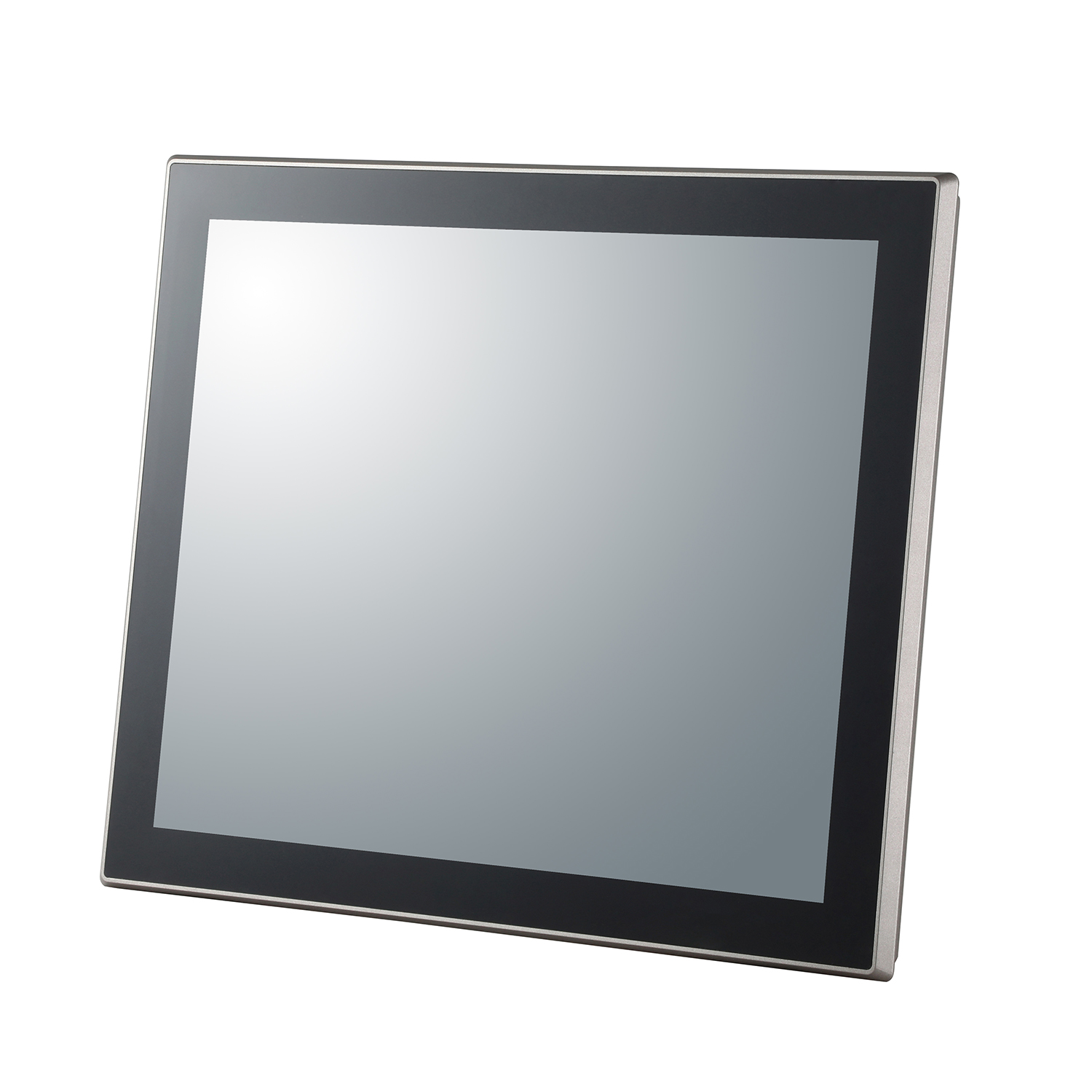

    Photos of 17inch panel PC
