21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing from wholesalers

    Buy cheap 21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing from wholesalers
    • Buy cheap 21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing from wholesalers
    • Buy cheap 21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing from wholesalers

    21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing

    Ask Lasest Price
    Brand Name : ITD/OEM
    Model Number : ITD21PPCT5B-10310U
    Certification : CE, FCC, RoHS
    Price : TBA
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000PCS/Month
    Delivery Time : 5-10 Business Days
    • Product Details
    • Company Profile

    21.5" Fanless Industrial Touch Panel PC Computer I5-10310U Die Casting Aluminum Housing

    touch panel computer fanless industrial pc 21.5" i5-10310U​


    Features of touch panel computer

    • Onboard powerful lntel Core i5-10310U
    • 4G, 5G, Bluetooth and WIFI optional
    • Die-Casting Aluminum Housing with Fanless Operation
    • IP65 Front Bezel
    • Modular Design and easy for maintenance
    • Wide DC Support 9 ~ 36V
    • High brightnesss optional
    • Multi touch capacitive or resistive touch

    Applications of IP65 panel PC

    • Industrial Automation
    • Transportation
    • Robots
    • IoT
    • Marine
    • Fitness clubs
    • Warehouse&Logistics
    • Healthcare
    • Government
    • Smart charging station
    • Gas Station
    • Amusement Park
    • Outdoor Kiosks

    Processorlntel Celeron J4125/J6412 CPU
    lntel Core 8/10/11代-U i5/i7 CPU
    System MemoryJ4125/J6412: DDR4 SODIMM x1
    Core i5/i7: DDR4 SODIMM x2
    Ethernet2x 2.5 GbE R
    J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V)
    I/O Port

    4 x USB2.0 , 2 x USB3.0 (J4125/J6412)
    1 1 2 x USB2.0 , 4 x USB3.0 (8th/10th/11th intel Core i5/i7)
    2 x DB-9 COM1&COM2,RS-232/422/485

    1 x Audio Line-out

    2 x 8Ω 1W Audio AM P out (Optional)

    1 x AT/ATX switch

    1 x HDMI

    1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO,
    1x Remote switch

    Storage Disk Driver1 x M.2 2242/2260/2280 SATA
    1 x SATA(2.5'' SATA )
    1 x M.2 2280 NVME
    Expansion SlotM.2 3042/3052 with SIM Card for 3G/4G/5G
    M.2 2230 WiFi/Bluetooth
    Watchdog timer1~655 35S
    OS supportWindows® 10/11, WES 10, LINUX
    ConstructionAluminum
    MountingVESA 75/ 100 Panel mount

    Operating TMP-20°C ~ 60 °C
    Storage TMP- 30°C ~ 70°C
    Storage Humidity10~90% @30°C, non-condensing
    DC InputDC 9 ~ 36V 4-pin M12 connector
    Display Type19" TFT-LCD
    Max.Resolution1280*1024
    Max.Colors16.7M
    Luminance350 cd/m²
    Viewing Angle(CR>=10)-8 5 ~ 8 5 ° ( H) , - 8 0 ~ 8 0 ° ( V )
    Back Light MTBF (hours50000H

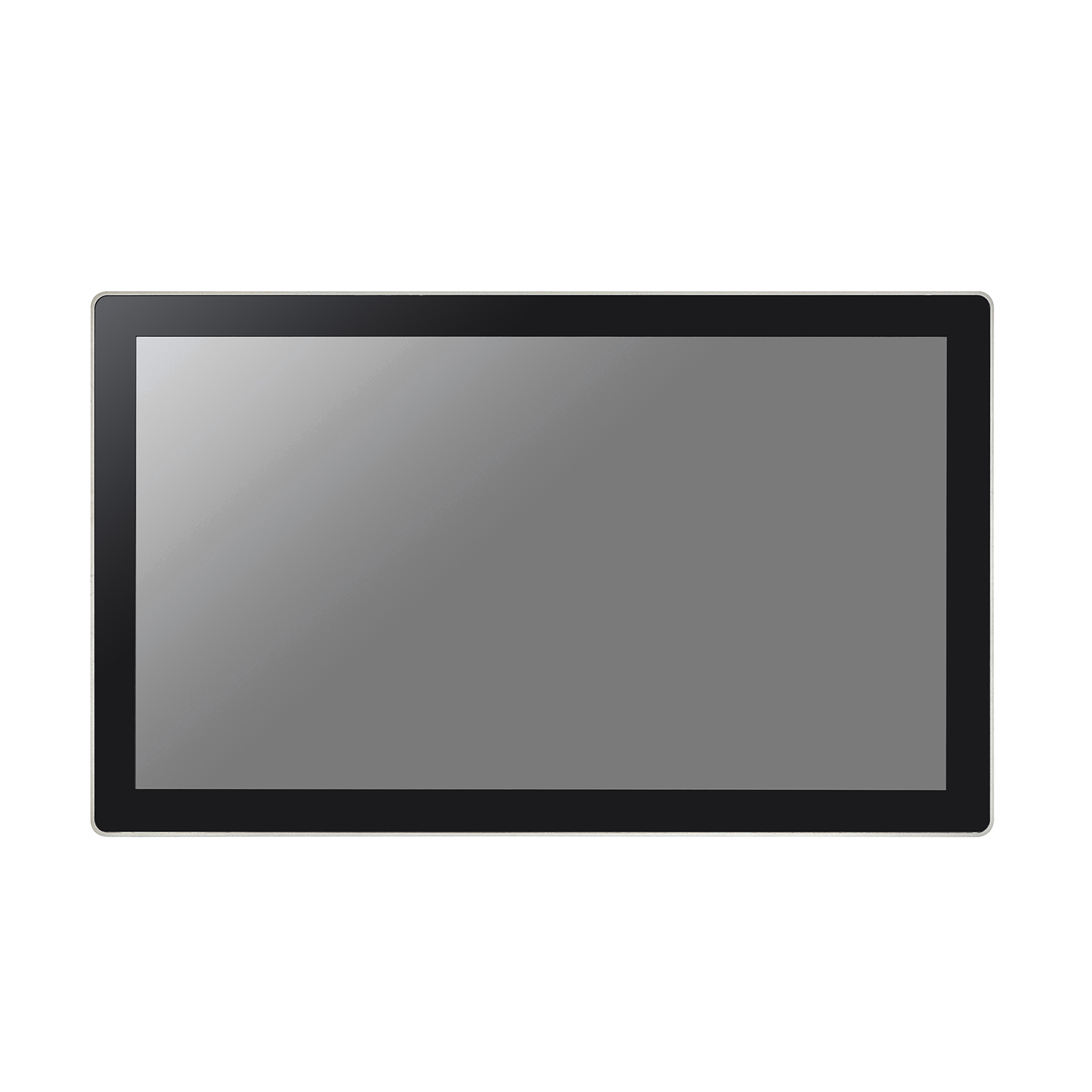

    Photos of 21.5inch IP65 fanless panel PC
